Tapped Arc Fasteners (Reduced Base) – (Mild – Low Carbon Steel)

Information:

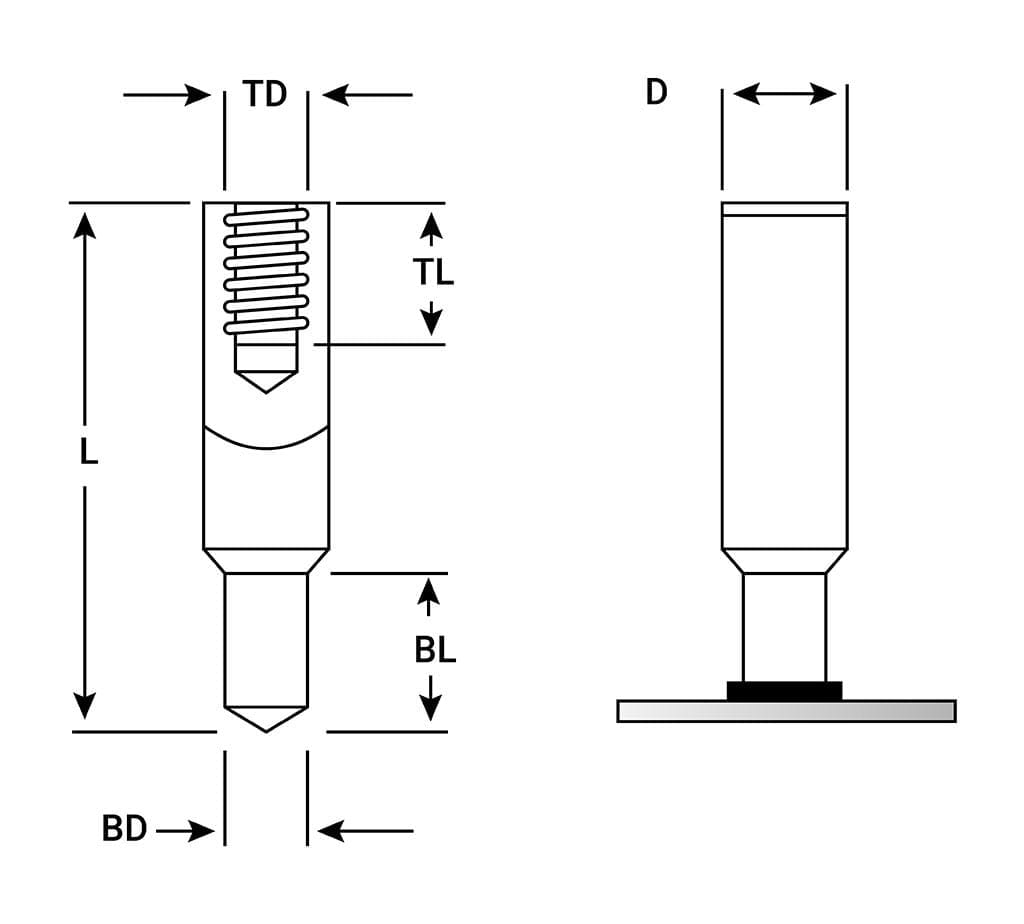

STUDS

D

MIN. L

TD

TL*

BD

BL

FERRULE CODE

3/8

1-1/2

1/4-20

3/8

.250

7/16

FS250

1/2

1-1/2

3/8-16

9/16

.375

7/16

FS375

5/8

1-1/2

7/16-14

21/32

.500

1/2

FS500

3/4

1-1/2

7/16-14

21/32

.500

1/2

FS500

7/8

2

5/8-11

15/16

.625

5/8

FS625

1"

2-1/2

3/4-10

1"

.750

5/8

FS750



FERRULES

CODE

B

D

E

M

PART NO.

FS250

.380

.455

.125

.250

092 0005 06

FS375

.585

.675

.125

.250

092 0005 08

FS500

.785

.875

.156

.281

092 0005 10

FS625

.921

1.030

.187

.375

092 0005 11

FS750

1.043

1.203

.187

.375

092 0005 12

Additional information

Base

Diameter

, , , , , ,

Length

, , , , , , , , , , , ,

Available Materials

Plating

, ,

System

Threading

Weld Type

MILD (LOW CARBON) STEEL:

  • C-0.23% max.
  • P-0.04% max.
  • Mn - 0.90% max.
  • S-0.05% max.
MECHANICAL PROPERTIES:
  • Tensile 60,000 psi (min.)
  • Yield 50,000 psi (min.)
  • Elongation 20% (in 2 inches)

PLATING: Plating is not standard. Copper, nickel, and zine available upon customer request.

STAINLESS STEEL:

AISI grade - 302/304/305 std.

Other grades available upon request.

MECHANICAL PROPERTIES: Values for various grades available upon request.

FERRULES:

Ferrules are component parts of studs. Not sold separately.

Specification sheet (PDF) coming soon.

TAPS:

Standard tap is UNC-2B, other taps are available

* Maximum standard tap depth equals 1-1/2 times tap diameter.

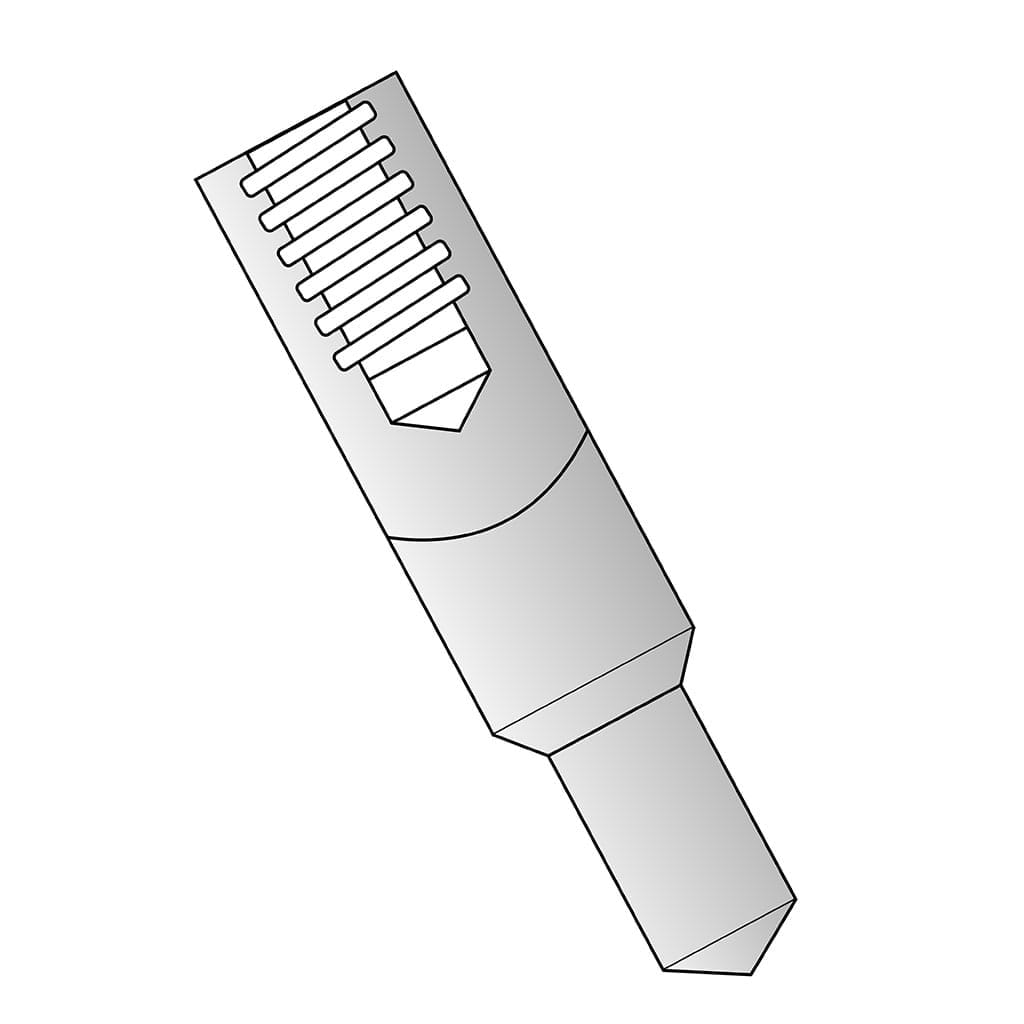

The Tapped Reduced Base Arc Stud is a plain shank stud for application with arc stud welding equipment. This type of stud welded fastener is usually flux-loaded on the weld end for studwelding applications. Available in Mild (Low Carbon) Steel, stainless steel and Aluminum, other special materials and grades are available. The tapped style is characterized by a stud body with no external threading and internal threading provided inside the weld stud body. The reduced base style provides a diameter that allows studwelding fillet formation no larger in diameter than the full diameter of the stud body. Studwelding of the weld stud burns off a portion of the base so that the pre-weld, post-weld length dimension should be considered. All orders for arc weld studs from Davis Stud Welding include ceramic studwelding ferrules properly sized for the weld stud ordered.
