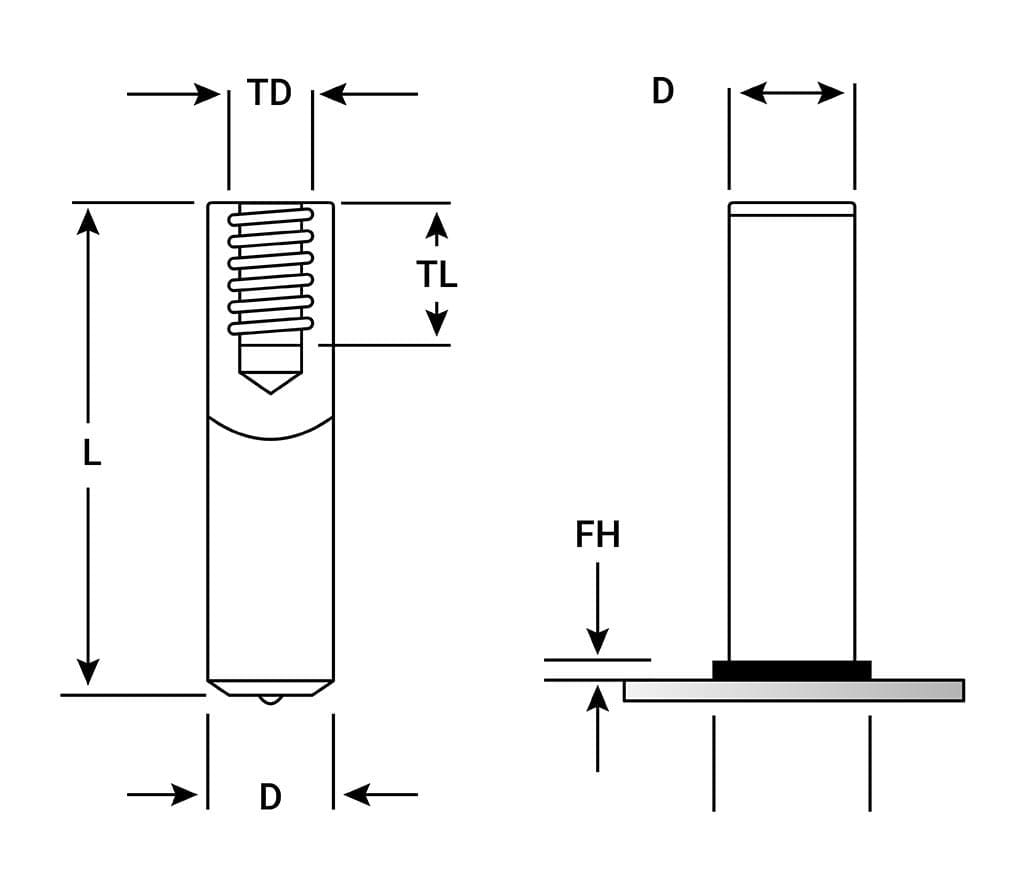

Tapped Arc Fasteners (Full Base) – (Mild – Low Carbon Steel)

D

MIN. L

TD

TL*

MAX FD

MAX FH

FERRULE CODE

1/4

9/16

8-32

1/4

.359

.109

F250

5/16

21/32

10-24

9/32

.437

.109

F312

3/8

13/16

1/4-20

3/8

.500

.125

F375

7/16

29/32

5/16-18

15/32

.578

.140

F437

1/2

1-1/32

3/8-16

9/16

.625

.156

F500

5/8

1-9/32

3/8-16

9/16

.625

.156

F500

3/4

1-3/8

1/2-13

3/4

.937

.250

F750

7/8

1-5/8

5/8-11

15/16

1.093

.312

F875

CODE

B

D

E

M

PART NO.

F250

.380

.455

.156

.390

092 0005 06

F312

.445

.578

.156

.390

092 0005 07

F375

.505

.640

.156

.390

092 0005 08

F437

.585

.703

.188

.422

092 0005 09

F500

.650

.795

.188

.438

092 0005 10

F625

.785

1.030

.188

.516

092 0005 11

F750

1.030

1.218

.188

.656

092 0005 12

F875

1.203

1.406

.188

.732

092 0005 13
