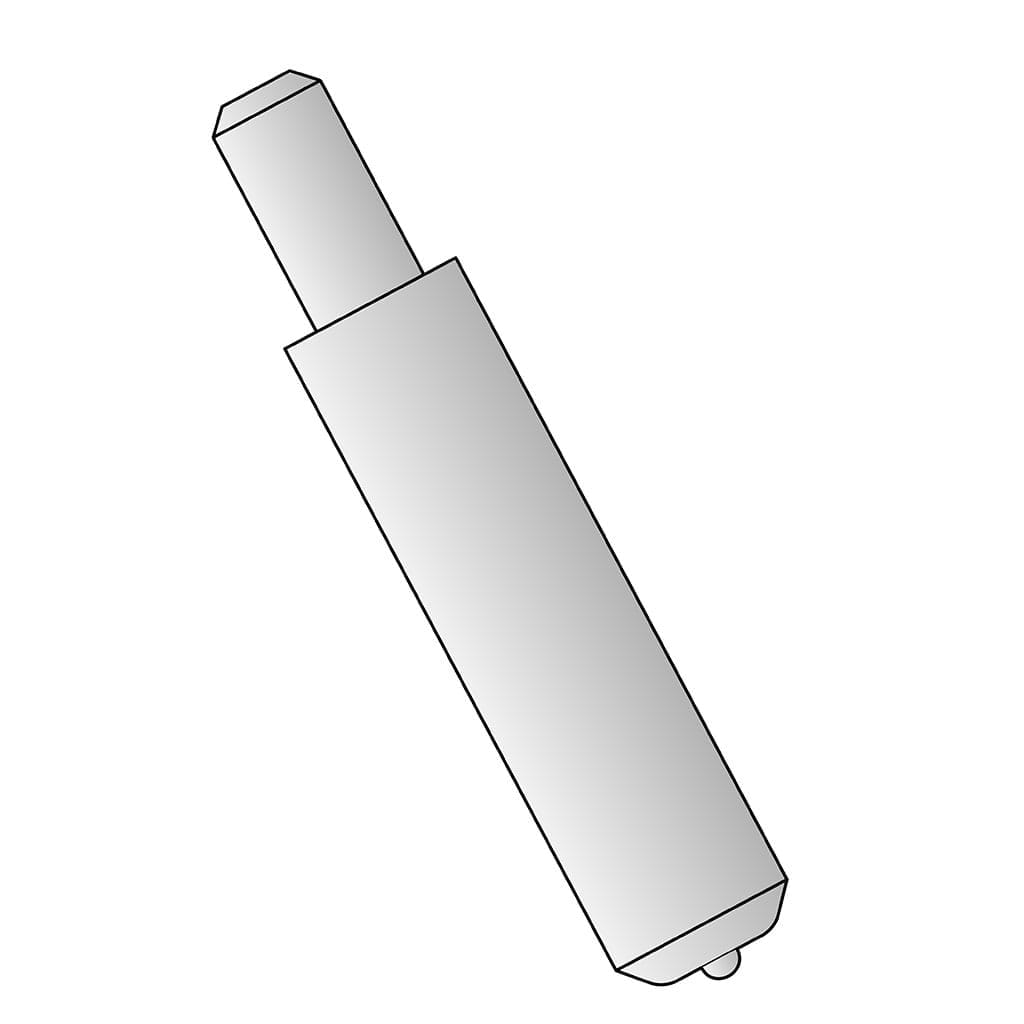

Shoulder Arc Fasteners (Non Threaded) – (Mild – Low Carbon Steel)

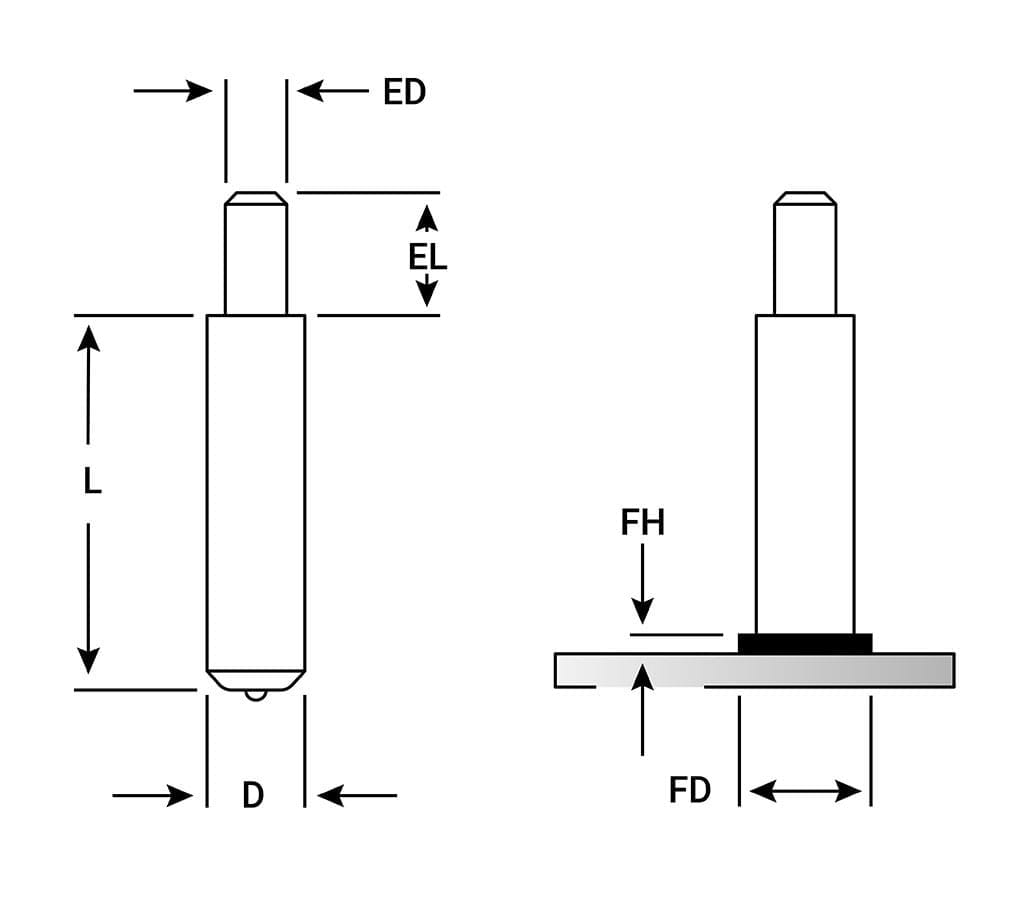

D

MIN. L

ED

EL

FD

FH

FERRULE CODE

5/16

3/8

3/16

3/16

.437

.109

F312

3/8

3/8

3/16

3/16

.500

.125

F375

1/2

1/2

3/8

45/64

.627

.156

F500

CODE

B

D

E

M

PART NO.

F312

.445

.578

.156

.390

092 0005 07

F375

.505

.640

.156

.390

092 0005 08

F500

.560

.795

.188

.438

092 0005 10
