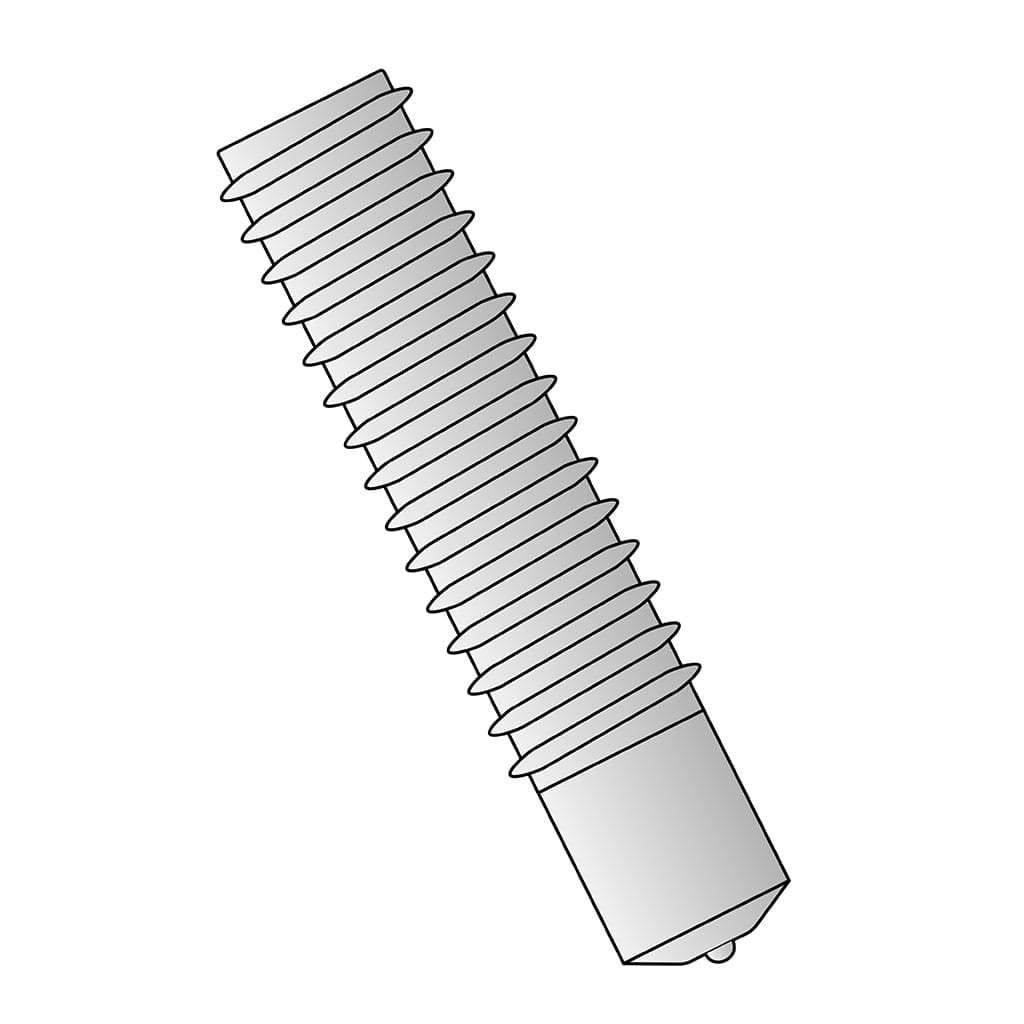

Short Reduced Base Arc Fasteners (Mild – Low Carbon Steel)

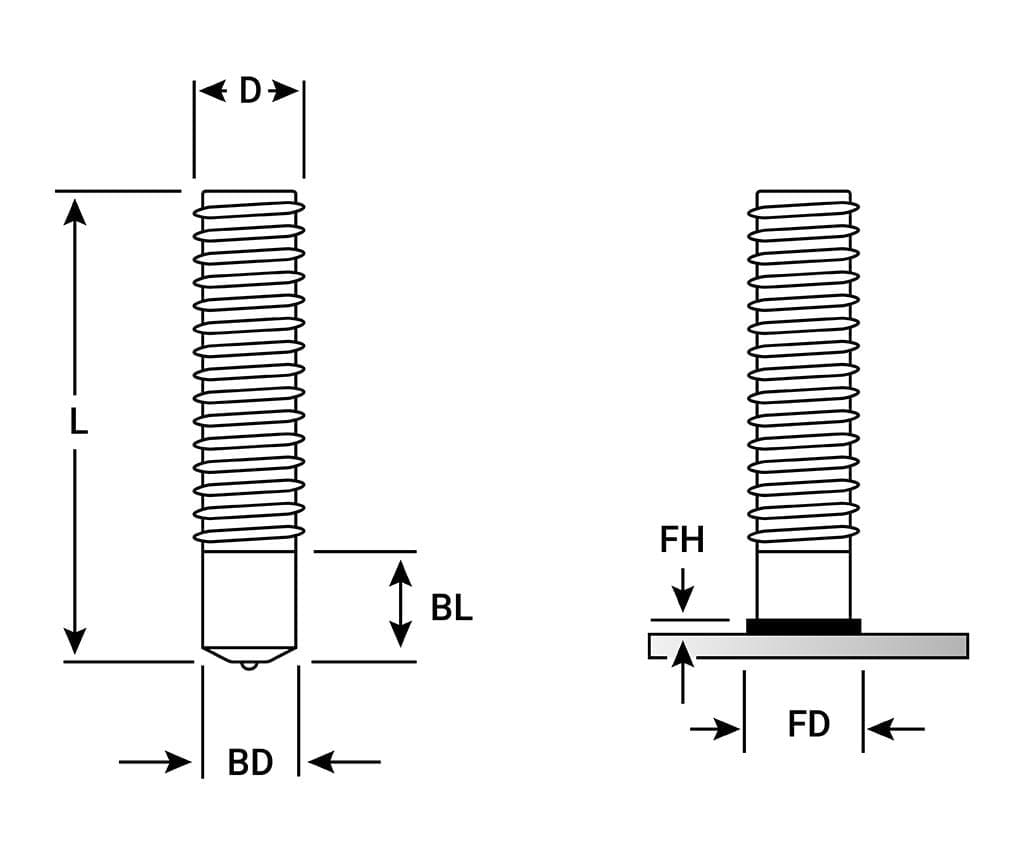

D

MIN. L

BD

MIN. BL

FD

FH

FERRULE CODE

1/4

7/8

.187

.156

.281

.109

TB250

5/16

7/8

.275

.250

.390

.109

RB312

3/8

7/8

.312

.250

.437

.125

RB375

1/2

1

.435

.250

.593

.156

RB500

5/8

1-1/8

.500

.312

.687

.156

TB625

3/4

1-1/8

.625

.375

.812

.187

TB750

CODE

B

D

E

M

PART NO.

TB250

.380

.455

.156

.375

092 0012 06

RB312

.445

.546

.156

.437

092 0012 07

RB375

.505

.640

.156

.437

092 0012 08

RB500

.650

.796

.187

.468

092 0012 10

TB625

.785

1.030

.187

.578

092 0012 11

TB750

.921

1.140

.203

.593

092 0012 12
