Safing Z Clip Insulation Anchor

Information:

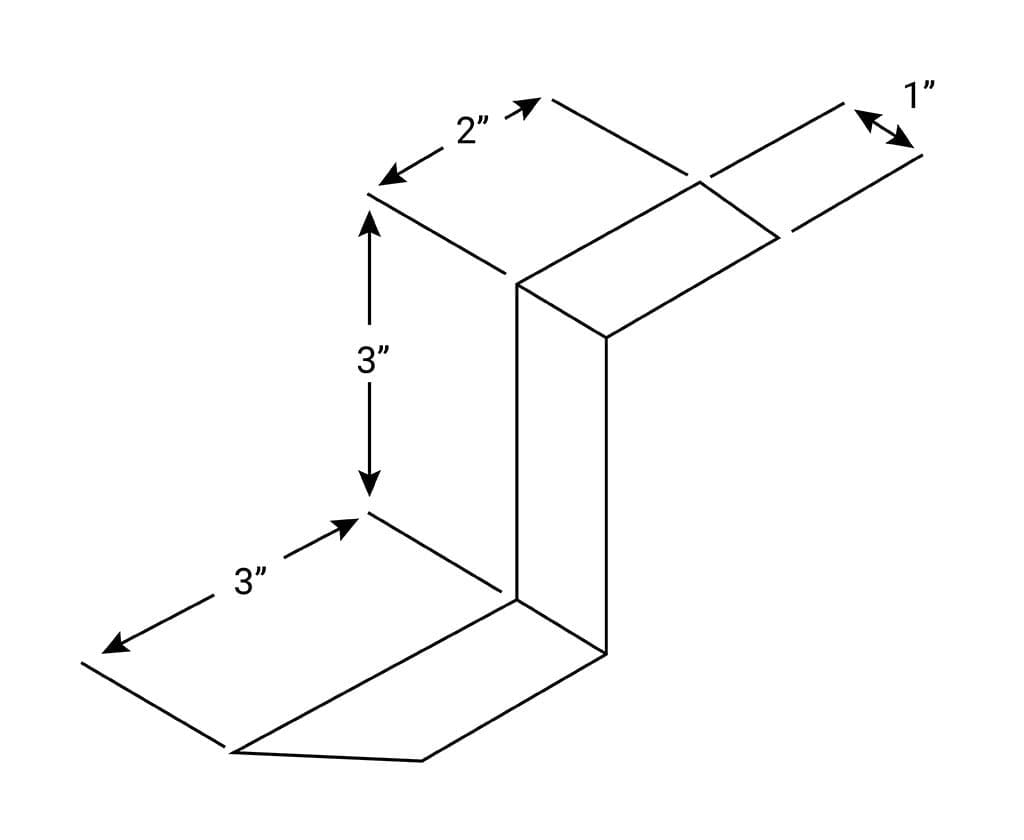

SIZE :	2 "x 3" x 3" x 1" standard size
LENGTH :	20 Gauge, Mild (Low Carbon) Steel
PLATING :	Galvanized is standard
APPLICATION :	For use in installation of fire barrier and sound barrier safing insulation. This non-welded fastener is used as a support bracket to impale and secure insulating materials between floor slab and spandrels at floor edge or anywhere that support for material is required.
STANDARD PACKAGING :	500 per carton (43lbs. carton weight - approximately)

Additional information

Available Materials	Mild (Low Carbon) Steel
Plating	Galvanized
System	Imperial

MILD (LOW CARBON) STEEL:

C-0.23% max.
P-0.04% max.
Mn - 0.90% max.
S-0.05% max.

MECHANICAL PROPERTIES:

Tensile 60,000 psi (min.)
Yield 50,000 psi (min.)
Elongation 20% (in 2 inches)

PLATING: Copper plating is standard.

ANNEALING: Studs are annealed where required.

Specification sheet (PDF) coming soon.

The Safing Clip type Insulation Hanger, is a fabricated 2" X 3" X 3" X 1" Z-shaped metal clip. Manufactured from galvanized coated Mild (Low Carbon) Steel, this clip is an insulation fastener used in fireproofing applications for installation of fire-stopping safing material between floors in high-rise construction. The insulation material is impaled on the safing clip and installed in recesses at the edge of the floor joint.
