Description
|

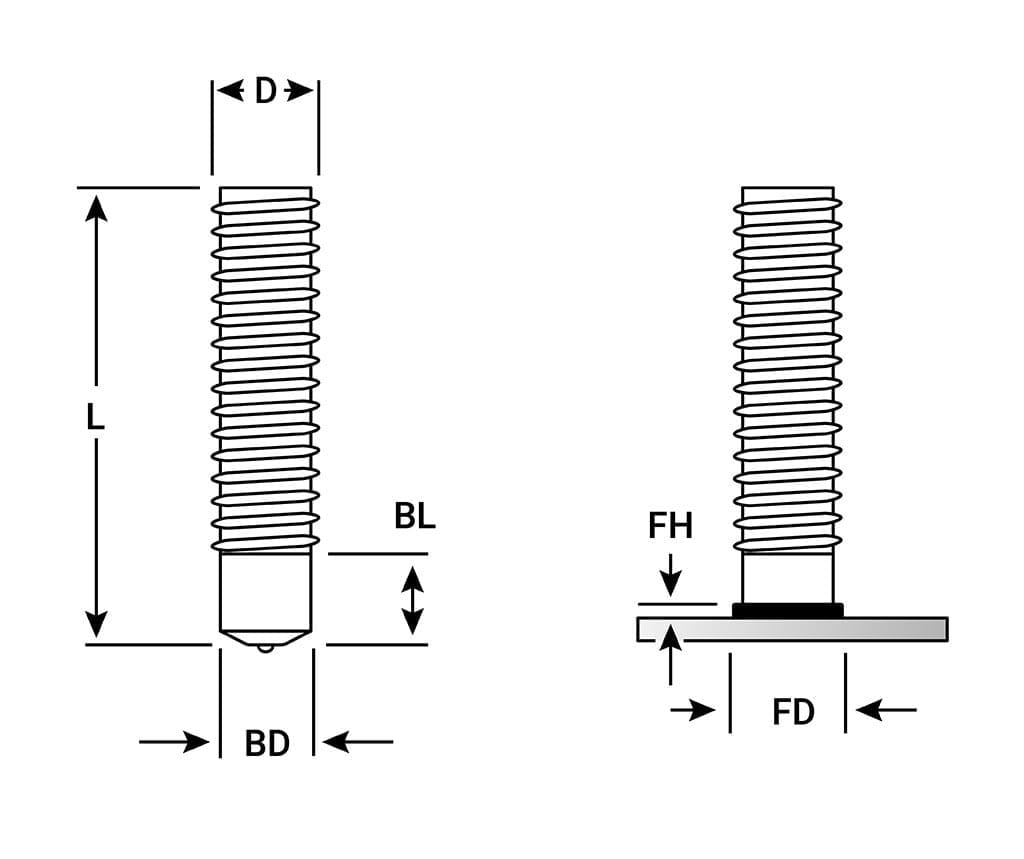

STUDS |
||||||
|
D |
MIN. L |
.BD |
BL |
MIN |
FH |
FERRULE |
|
1/4 |
.3/4 |
..187 |
.375 |
.281 |
.109 |
FS187 |
|
5/16 |
.3/4 |
..250 |
.375 |
.359 |
.125 |
FS250 |
|
3/8 |
.3/4 |
..312 |
.375 |
.437 |
.125 |
FS312 |
|
7/16 |
1 |
..375 |
.375 |
.500 |
.140 |
FS375 |
|
.1/2 |
1 |
..437 |
.437 |
.578 |
.140 |
FS437 |
|
5/8 |
1-1/4 |
..500 |
.500 |
.656 |
.156 |
FS500 |
|
.3/4 |
1-1/2 |
.625 |
.718 |
|
|
FS625 |
|
FERRULES |
|||||
|
CODE |
B |
.D |
E |
M |
PART NO |
|
FS187 |
.305 |
..390 |
.125 |
.250 |
092 0004 05 |
|
FS250 |
.308 |
.455 |
.125 |
.250 |
092 0004 06 |
|
FS312 |
.505 |
.495 |
.125 |
.250 |
092 0004 07 |
|
FS375 |
.585 |
..675 |
.125 |
.250 |
092 0004 08 |
|
FS437 |
.650 |
..740 |
.156 |
.281 |
092 0004 09 |
|
FS500 |
.785 |
.875 |
.156 |
.281 |
092 0004 10 |
|
FS625 |
.921 |
1.030 |
.187 |
.375 |
092 0004 11 |
