MILD (LOW CARBON) STEEL:
- C-0.23% max.
- P-0.04% max.
- Mn - 0.90% max.
- S-0.05% max.
- Tensile 60,000 psi (min.)
- Yield 50,000 psi (min.)
- Elongation 20% (in 2 inches)
PLATING: Plating is not standard. Copper, nickel, and zine available upon customer request.
AISI grade - 302/304/305 std.
Other grades available upon request.
MECHANICAL PROPERTIES: Values for various grades available upon request.
Ferrules are component parts of studs. Not sold separately.

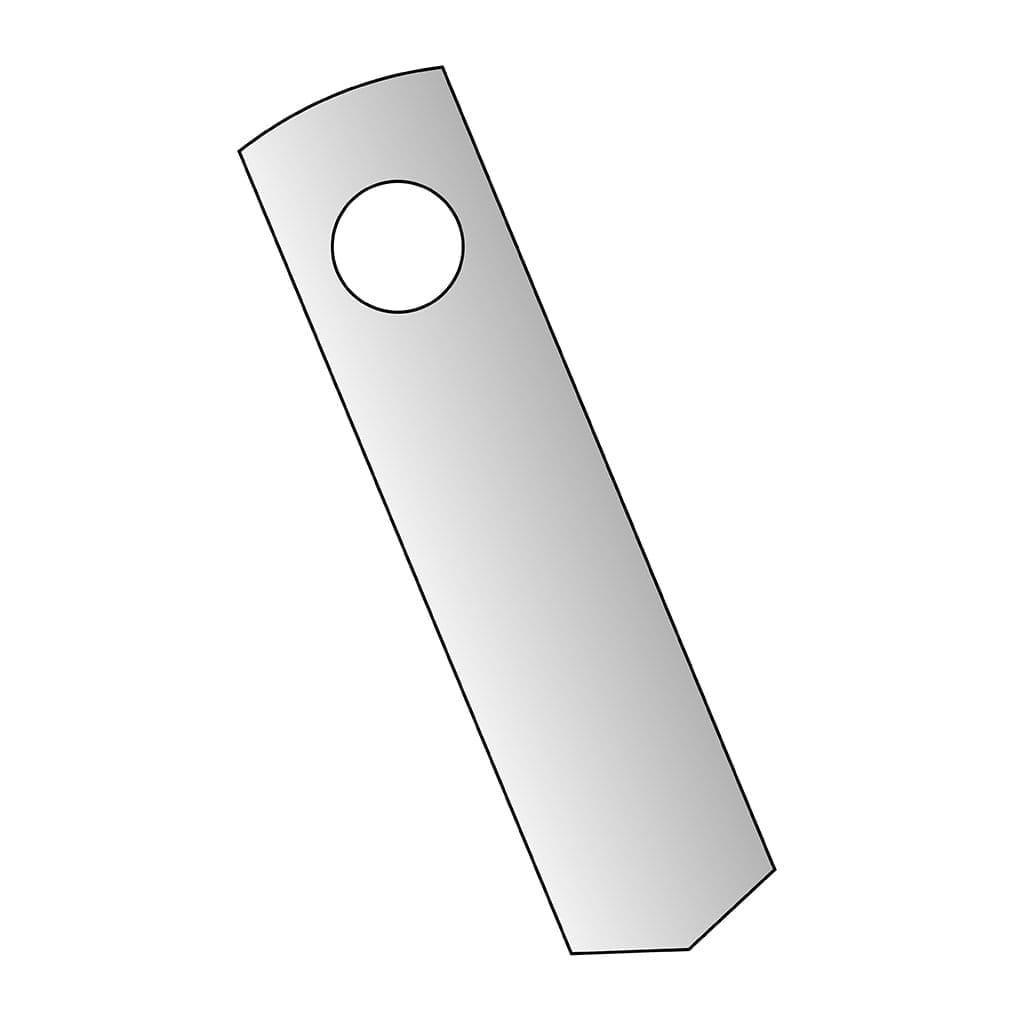

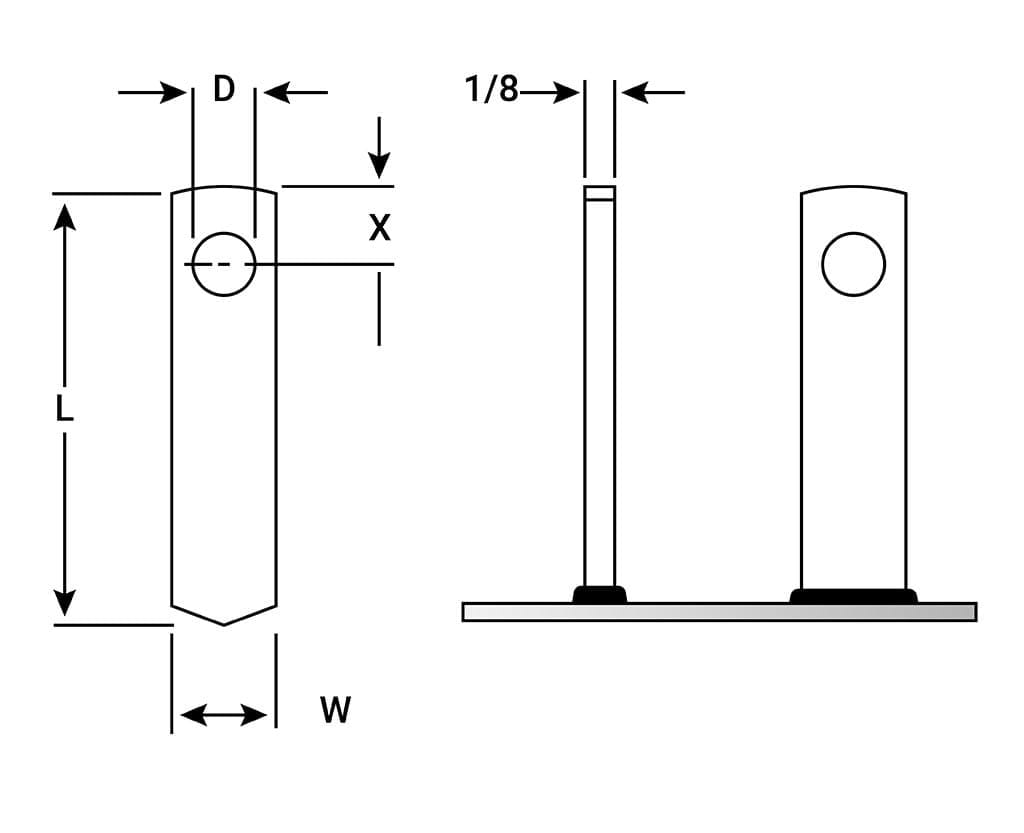

This type of stud welded fastener is usually pointed on the weld end for studwelding applications. Available in Mild (Low Carbon) Steel, and stainless steel, other special materials and grades are available. Rectangular in shape, the weld stud features a hole in its upper portion and can be used to retain mating parts. Stud welding of the weld stud burns off a portion of the base so that the pre-weld, post-weld length dimension should be considered. All orders for arc weld studs from Davis Stud Welding include ceramic stud welding ferrules properly sized for the weld stud ordered.
