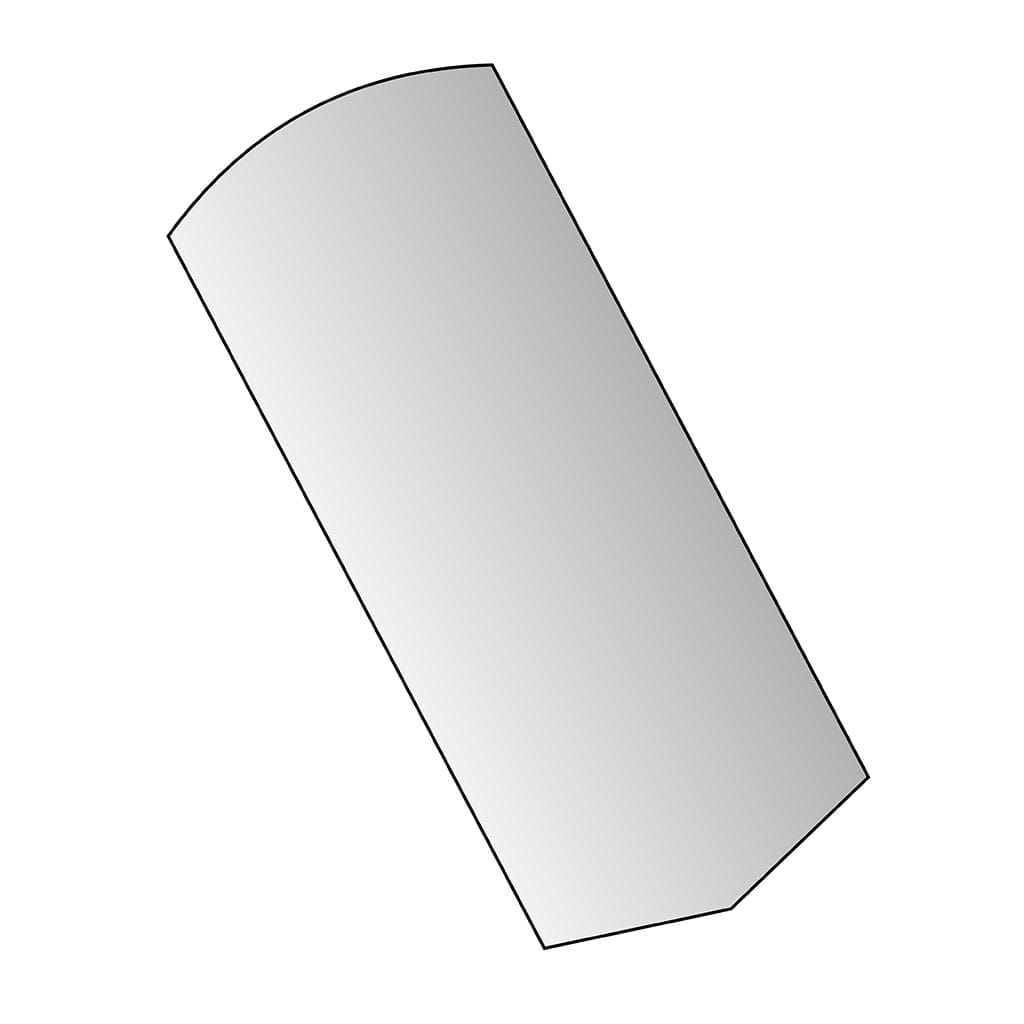

Rectangular Arc Fasteners (Plain) – (Stainless Steel)

Information:

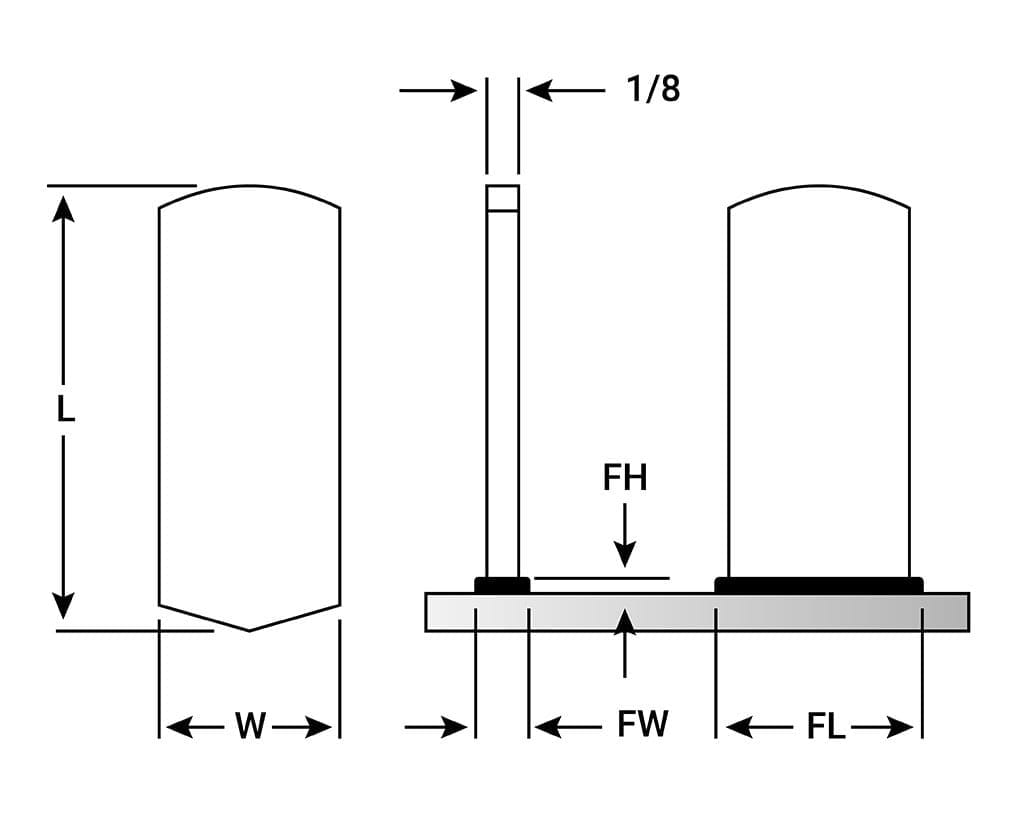

STUDS

W

L

FW

FL

FH

CODE

3/8

7/8

.218

.437

.125

R375

5/8

1"

.218

.687

.156

R625



FERRULES

CODE

B

D

E

M

PART NO.

R375

.505

.625

.156

.390

092 0020 08

R625

.921

.500

.188

.438

092 0020 11

Additional information

Diameter

,

Length

,

Available Materials

Plating

, ,

System

Threading

Weld Type

MILD (LOW CARBON) STEEL:

  • C-0.23% max.
  • P-0.04% max.
  • Mn - 0.90% max.
  • S-0.05% max.
MECHANICAL PROPERTIES:
  • Tensile 60,000 psi (min.)
  • Yield 50,000 psi (min.)
  • Elongation 20% (in 2 inches)

PLATING: Plating is not standard. Copper, nickel, and zine available upon customer request.

STAINLESS STEEL:

AISI grade - 302/304/305 std.

Other grades available upon request.

MECHANICAL PROPERTIES: Values for various grades available upon request.

FERRULES:

Ferrules are component parts of studs. Not sold separately.

Specification sheet (PDF) coming soon.

The Plain Rectangular Arc Stud is a rectangular pin for application with arc stud welding equipment. This type of stud welded fastener is usually pointed on the weld end for studwelding applications. Available in Mild (Low Carbon) Steel and stainless steel as standards, other special materials and grades are available. Studwelding of the weld stud burns off a portion of the base so that the pre-weld, post-weld length dimension should be considered. All orders for arc weld studs from Davis Stud Welding include ceramic ferrules properly sized for the weld stud ordered.



Looking for Rectangular Arc Fasteners (Plain) – (Stainless Steel)? Give us a call, we would love to help!
