Nylon Insulation Anchor

Information:

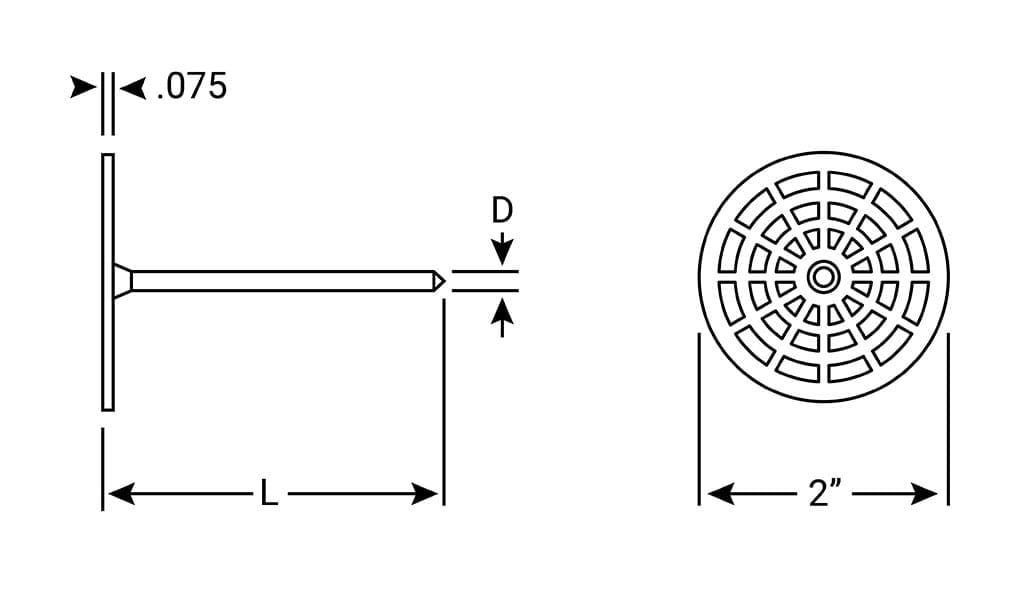

SIZE :	D	5/32" dia. is standard.
LENGTH :	L	2-1/2" length is standard.

	PIN	PLATE
MATERIAL	This is a one-piece insul-anchor of molded nylon.
FEATURES	Nylon Has a base area 14% larger than similar nylon anchors with a round base. Has 21% more perforated area for glue extrusion than similar nylon anchors. Uses 30% less adhesive than metal insul-anchors with a 2" round base Will not conduct heat or cold. Lighter in weight than metal anchors for ease of handling.
WASHERS	Self - locking washers for use with this insul-anchor is the WAMS-120-156. These washers are packed with anchors.

Additional information

Diameter	5/32"
Length	2-1/2"
Available Materials	Nylon
System	Imperial

Specification sheet (PDF) coming soon.

The Nylon Insulation Anchor, or Hanger, is a molded 2-1/2" nylon pin with a 2" round, slotted base. This type of insulation pin is used to attach insulation material by impaling for various thermal and acoustical insulation materials. The pin is 5/32" diameter and is 2-1/2" in length in the molded, nylon insulation anchor. It is used in conjunction with a special Self Locking Insulation Washers, or Speed Clips, which locks on the 5/32" nail and general purpose adhesive, like Davis Stud Welding IHA-177.
