No Thread Bent Arc Fasteners (Mild – Low Carbon Steel)

Information:

STUDS

D

MIN. L

MIN. X

MIN. R

FERRULE CODE

1/4

1-1/8

1-1/4

.125

F250

5/16

1-1/4

1-1/2

.218

F312

3/8

1-1/2

1-1/2

.218

F375

7/16

1-5/8

1-5/8

.250

F437

1/2

1-3/4

1-3/4

.250

F500

5/8

1-7/8

2"

.312

F625

3/4

2-3/4

3"

.500

F750

7/8

3-1/2

3-3/8

.500

F875



FERRULES

CODE

B

D

E

M

PART NO.

F250

.380

.455

.156

.390

092 0005 06

F312

.445

.578

.156

.390

092 0005 07

F375

.505

.640

.156

.390

092 0005 08

F437

.585

.703

.188

.422

092 0005 09

F500

.650

.795

.188

.438

092 0005 10

F625

.785

1.030

.188

.516

092 0005 11

F750

1.030

1.218

.188

.656

092 0005 12

F875

1.203

1.406

.188

.732

092 0005 13

Additional information

Base

Diameter

, , , , , , ,

Length

, , , , , , , , , , , ,

Available Materials

Plating

, ,

System

Threading

Weld Type

MILD (LOW CARBON) STEEL:

  • C-0.23% max.
  • P-0.04% max.
  • Mn - 0.90% max.
  • S-0.05% max.
MECHANICAL PROPERTIES:
  • Tensile 60,000 psi (min.)
  • Yield 50,000 psi (min.)
  • Elongation 20% (in 2 inches)

PLATING: Plating is not standard. Copper, nickel, and zine available upon customer request.

STAINLESS STEEL:

AISI grade - 302/304/305 std.

Other grades available upon request.

MECHANICAL PROPERTIES: Values for various grades available upon request.

FERRULES:

Ferrules are component parts of studs. Not sold separately.

Specification sheet (PDF) coming soon.

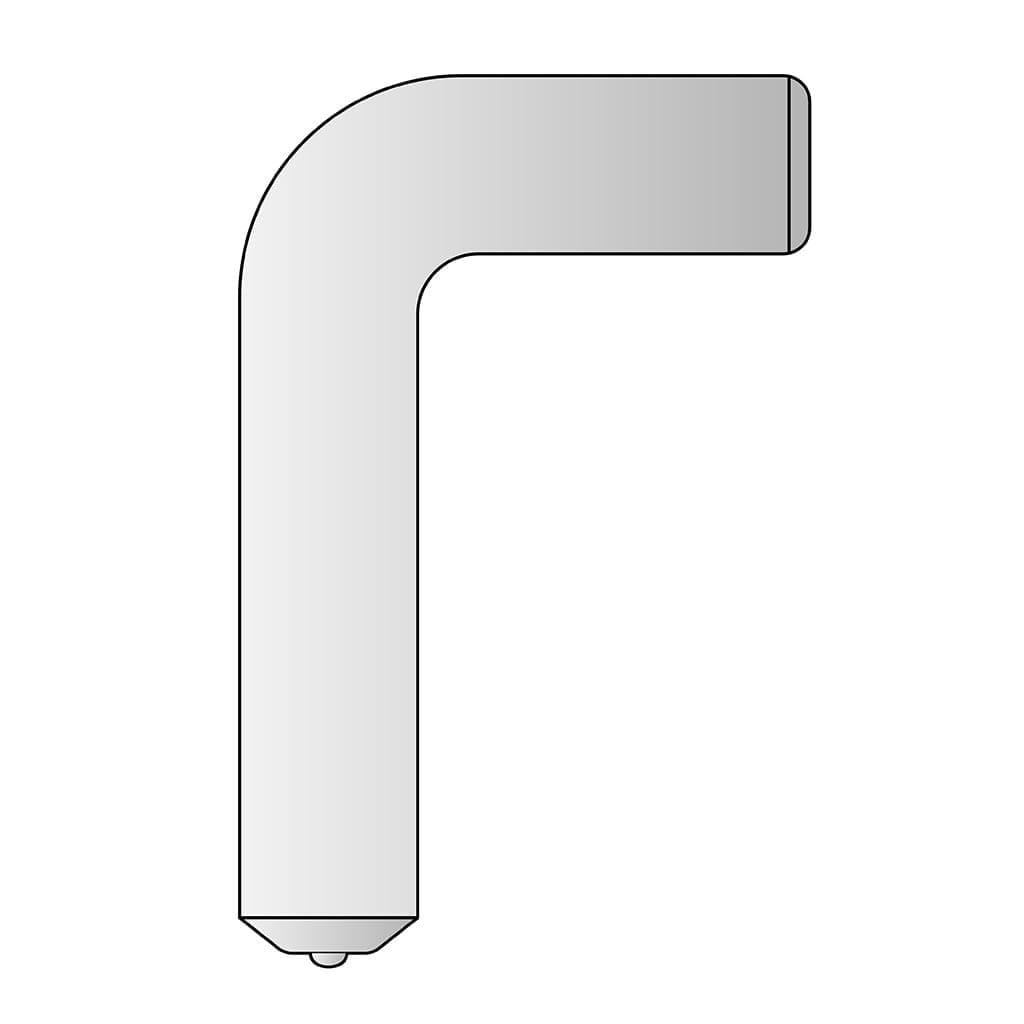

The Bent No Thread Weld Stud is a plain shank arc stud with a bend in the body of the weld stud and is designed for application with arc stud welding equipment. Sometimes characterized as a “bent pin”, this type of stud welded fastener is usually flux-loaded on the weld end for studwelding applications. Available in Mild (Low Carbon) Steel, stainless steel and Aluminum as standards, other special materials and grades are available. The no thread style is characterized by a stud body without threading the full length of the weld stud. Studwelding of the bent pin burns off a portion of the base so that the pre-weld, post-weld length dimension should be considered. All orders for arc weld studs from Davis Stud Welding include ceramic studwelding ferrules properly sized for the weld stud ordered.



Looking for No Thread Bent Arc Fasteners (Mild – Low Carbon Steel)? Give us a call, we would love to help!
