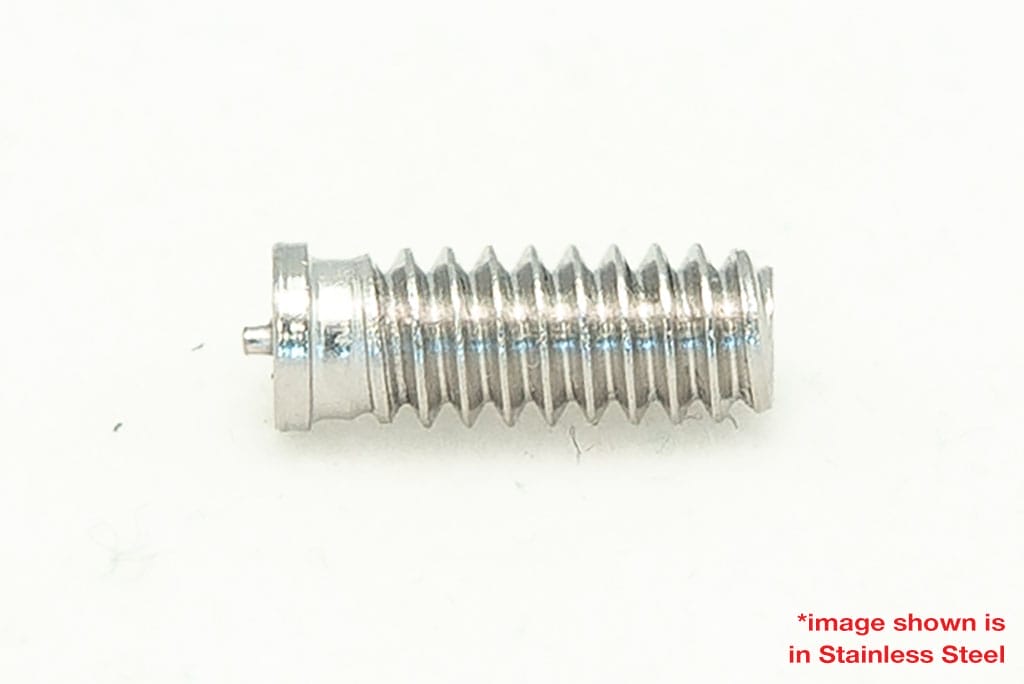

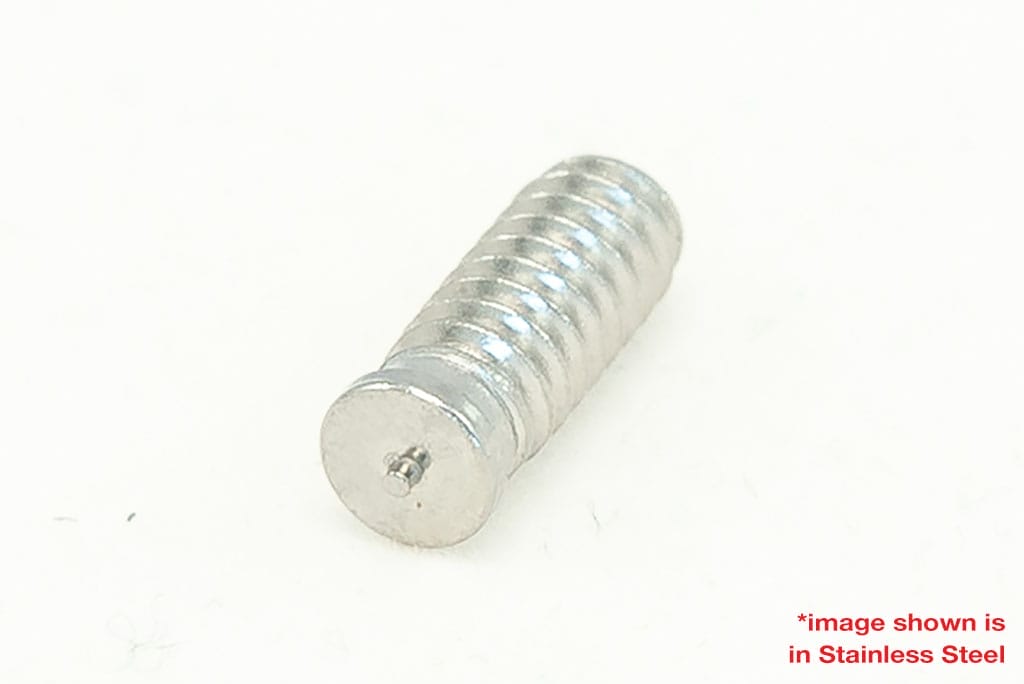

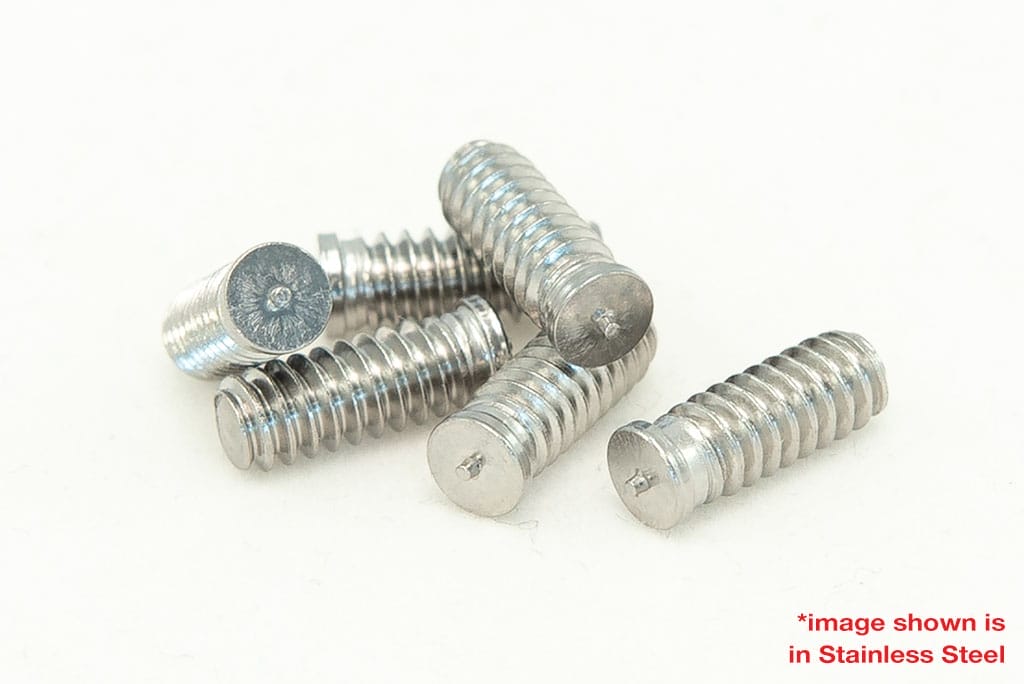

Mini Flanged Threaded CD Weld Stud (Aluminum)

Information:

D

FD

MIN.L

4-40

.143

.250

6-32

.169

.250

8-32

.195

.250

10-32

.221

.250

10-24

.221

.250

1/4-20

.281

.375

5/16-18

.342

.500

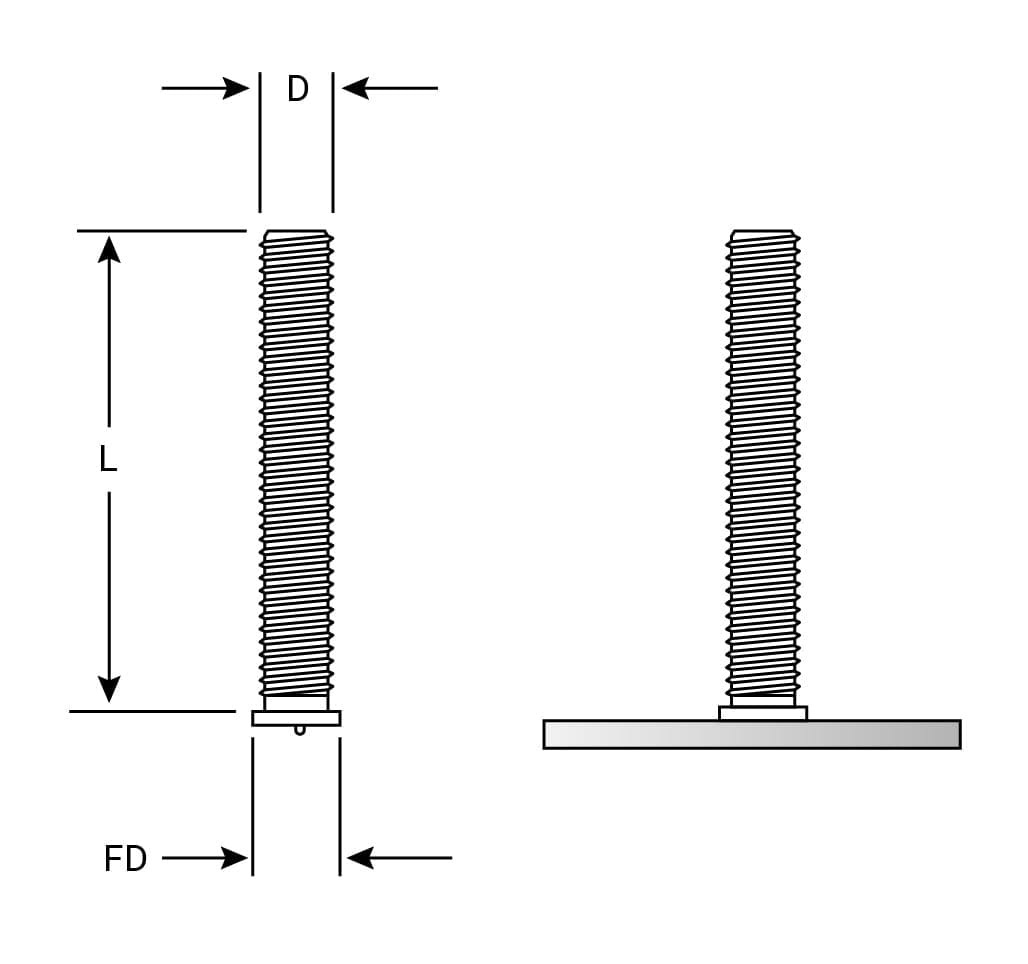

Additional information

Diameter

, , , , , ,

Flange

Length

, , , , , , , , , , , , ,

Available Materials

System

Threading

Weld Type

MILD (LOW CARBON) STEEL:

  • C-0.23% max.
  • P-0.04% max.
  • Mn - 0.90% max.
  • S-0.05% max.
MECHANICAL PROPERTIES:
  • Tensile 60,000 psi (min.)
  • Yield 50,000 psi (min.)
  • Elongation 20% (in 2 inches)

PLATING: Copper plating is standard.

ANNEALING: Studs are annealed where required.

STAINLESS STEEL:

AISI grade - 302/304/305 std.

Other grades available upon request.

MECHANICAL PROPERTIES: Values for various grades available upon request.

ANNEALING: Studs are annealed where required.

ALUMINUM:

ALLOY - 1100 & 5000 series

Other alloys available upon request

MECHANICAL PROPERTIES: Values for various alloys available upon request.

Specification sheet (PDF) coming soon.


Looking for Mini Flanged Threaded CD Weld Stud (Aluminum)? Give us a call, we would love to help!
