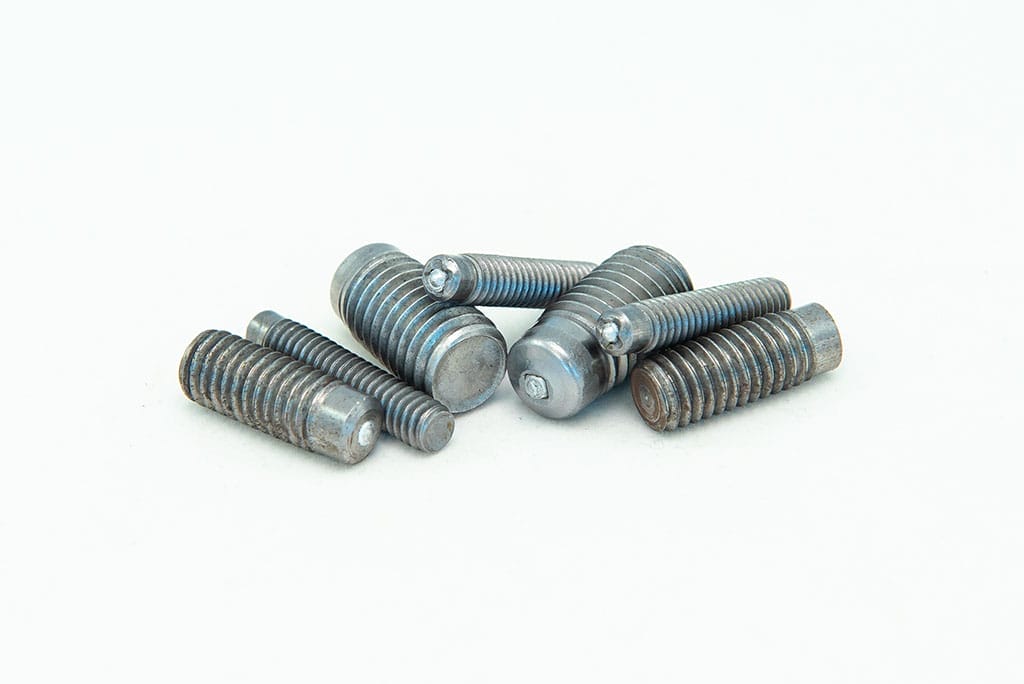

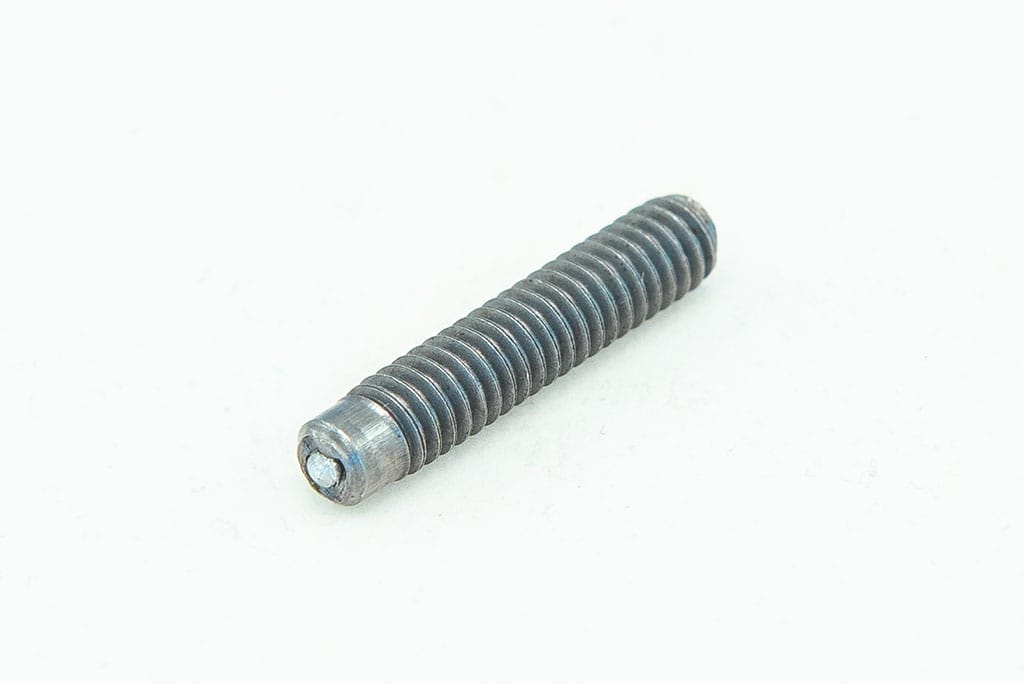

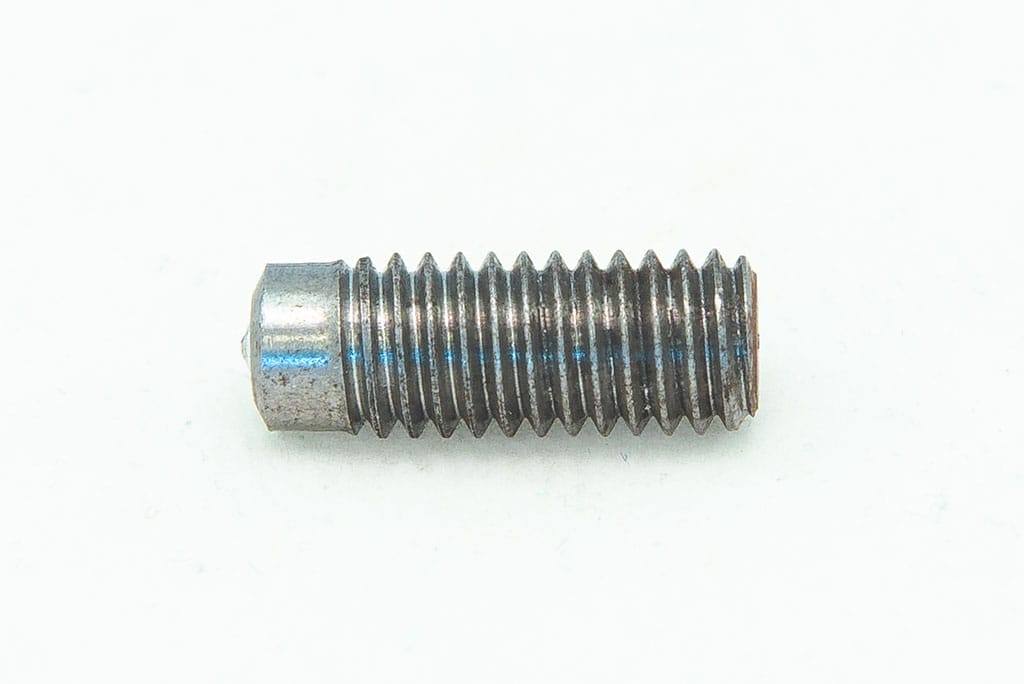

Full Thread Arc Fasteners (Mild – Low Carbon Steel)

D

MIN. L

FD

FH

FERRULE CODE

#10

3/4

.281

.093

F187

1/4

3/4

359

.109

F250

5/16

3/4

.437

.109

F312

3/8

3/4

.500

.125

F375

7/16

7/8

.578

.140

F437

1/2

7/8

.625

.156

F500

5/8

1-1/8

.796

.187

F625

3/4

1-1/8

.937

.250

F750

7/8

1-1/2

1.093

.312

F875

CODE

B

D

E

M

PART NO.

F187

.305

.390

.156

.390

092 0005 05

F250

.380

.455

.156

.390

092 0005 06

F312

.445

.578

.156

.265

092 0005 07

F375

.505

.640

.156

.329

092 0005 08

F437

.585

.703

.188

.362

092 0005 09

F500

.650

.795

.188

.433

092 0005 10

F625

.785

1.030

.188

.526

092 0005 11

F750

1.030

1.218

.188

.593

092 0005 12

F875

1.203

1.406

.188

.732

092 0005 13
