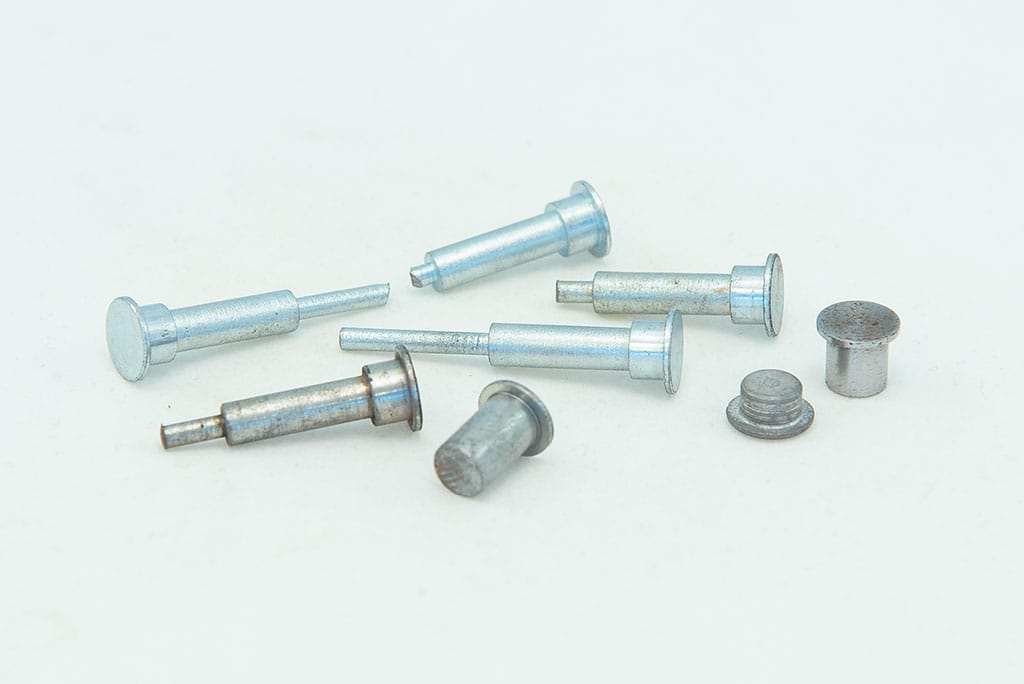

Description
| STUD DIAMETER |
STUD LENGTH |

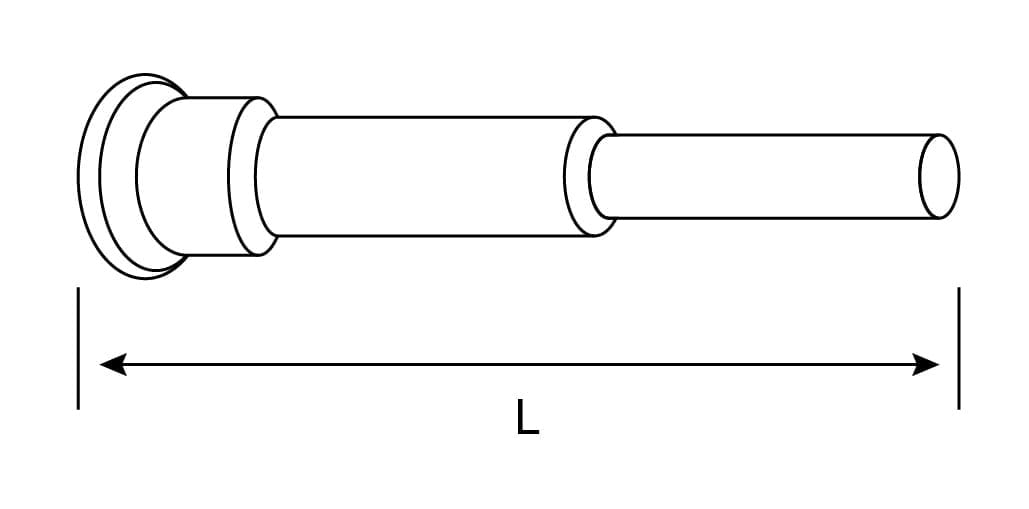

“L” |
PART NO. |
|
UNIVERSAL “B” STOP |
101-1002-14* |
||
|
12GA or #4 |
1/4 |
1.250 |
101-1002-16* |
|
3/8 |
1.125 |
101-1002-17* |
|
|
1/2 |
1.000 |
101-1002-18* |
|
|
5/8 |
.875 |
101-1002-19* |
|
|
3/4 |
.750 |
101-1002-20* |
|
|
3/16 or #10 |
1/4 |
1.250 |
101-1002-01 |
|
3/8 |
1.125 |
101-1002-02 |
|
|
1/2 |
1.000 |
101-1002-03 |
|
|
5/8 |
.875 |
101-1002-04 |
|
|
3/4 |
.750 |
101-1002-05 |
|
|
ALL SIZES |
7/8 |
.625 |
101-1002-06 |
|
1″ |
.500 |
101-1002-07 |
|
|
1-1/8 |
.375 |
101-1002-08 |
|
|
1-1/4 |
.250 |
101-1002-09 |
|
|
1-3/8 |
.125 |
101-1002-10* |
|
|
For Proper Protrusion Stud length plus stop length should be at least 1-1/2″. *denotes in-stock sizes. |
|||
