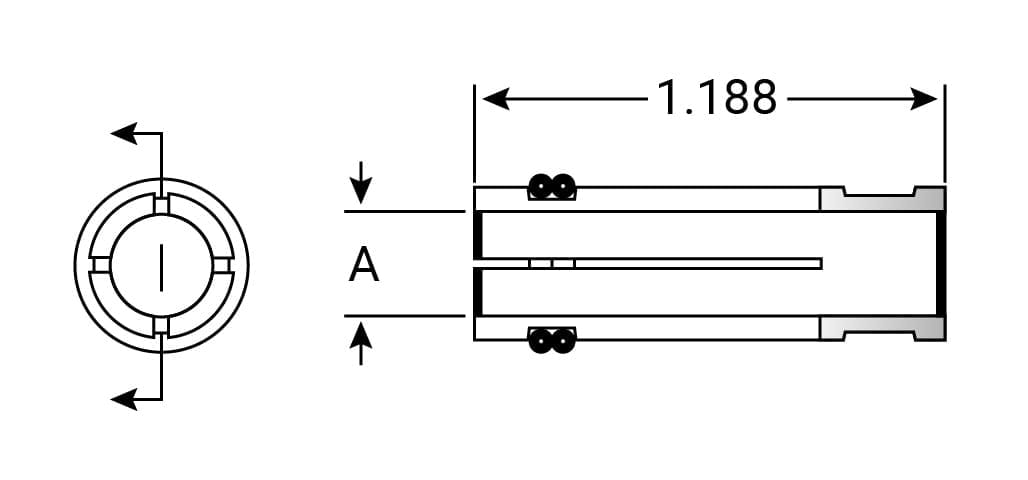

AGM Style Short B-Chuck

Information:

LENGTH

PART NO.

7"

101-0801-01

12"

101-0801-02

Leg Washer

181-1200-42

Leg Screw

181-3029-10

3" Blunt*
(not shown)

101-0804-01

*Requires Round Faceplate - 3/8" Deep

Additional information

System

Weld Type

Specification sheet (PDF) coming soon.

The Capacitor Discharge Foot or Faceplate should be used on the CD stud gun for most studwelding applications. Available in standard and other varieties, the CD stud gun foot provides stability to the stud gun during the studwelding process and also assures proper pressure and timing is applied during the CD stud welding process. The CD foot is affixed to the weld gun with the standard adjustable CD weld gun legs.



Looking for AGM Style Short B-Chuck? Give us a call, we would love to help!
