Resistance Cup Head Arc Insulation Pin

Information:

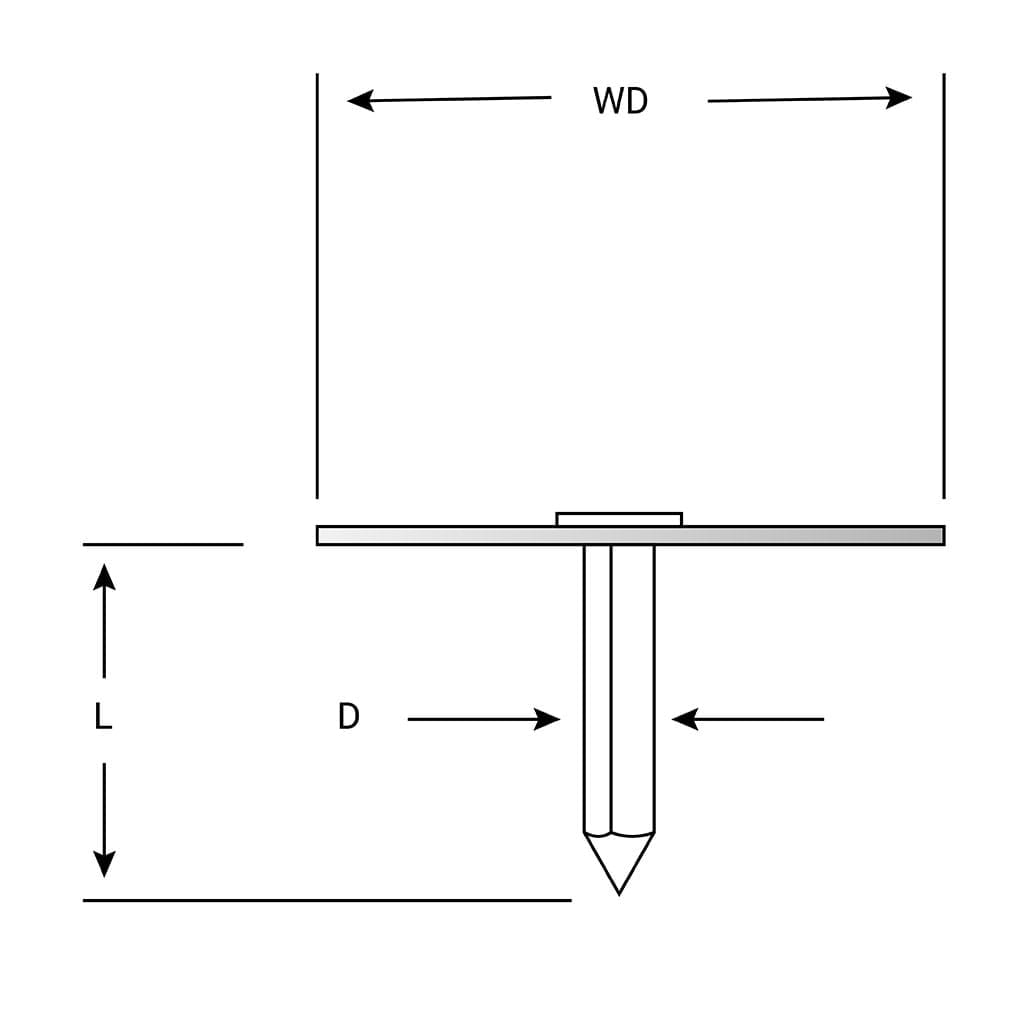

PINS

TYPE

D*

WD

MIN. L

CS10

.135

1.000

3/8

Additional information

Gauge

Length

, , , , , , , , , , , , , , ,

Available Materials

Plating

,

System

Weld Type

MILD (LOW CARBON) STEEL:

  • C-0.23% max.
  • P-0.04% max.
  • Mn - 0.90% max.
  • S-0.05% max.
MECHANICAL PROPERTIES:
  • Tensile 60,000 psi (min.)
  • Yield 50,000 psi (min.)
  • Elongation 20% (in 2 inches)

PLATING: Galvanized and Copper plating is available upon special request.

ANNEALING: Pins are annealed where required

WASHERS: Standard washer is galvanized. Washer edge is beveled to prevent cutting of insulation material.Flat washer style also standard. Both styles Auto-Feed quality.

Specification sheet (PDF) coming soon.

The resistance welded Cup Head, or Duro Dyne style, Weld Pin is a Mild Steel fabricated part made up of a Weld Pin and a staked-on Speed Clip, or retaining Washer. The most popular style resistance welded Cup Head Pin is a mild steel weld nail with a galvanized-coated mild steel retaining Washer. This product is usually applied with a fixed weld head “shop” pin welding system, and may include an automated feeding system for cup head weld pins, metal to be insulated, or both; however portable pin or stud welding equipment can also be used. The method of application is to place the insulation onto a metal surface, push the Cup Head weld pin through the insulation, and weld affix (mount) the entire fabrication in one step. Cup Heads are widely accepted as labor saving fasteners in the thermal markets primarily for Commercial type duct and ductwork insulation applications. Special care should be taken in properly designing and applying Cup Head insulation fastener systems to allow for proper welding and maximum holding power due to the blind nature of the welding process

APPLICATION :This cup head pin is for use with Duro- Dyne auto feed resistance welding equipment.
