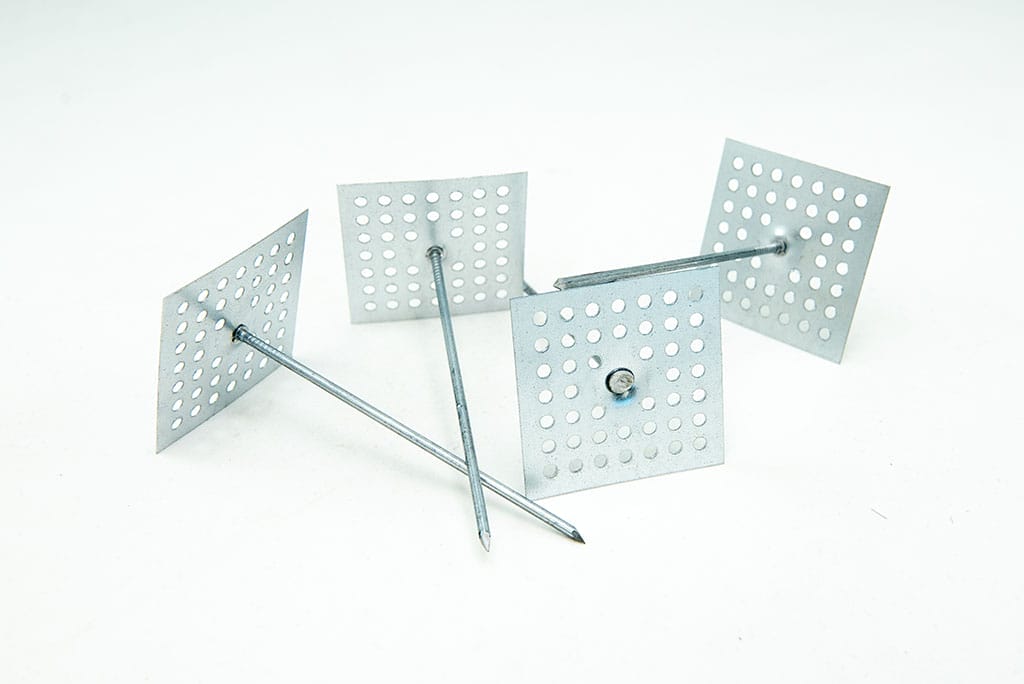

Perforated Base Insulation Anchor

Information:

SIZE :

D

12 GA (.105*) is standard. Other sizes available by special order only.

LENGTH :

L

1",1-5/8", 2", 2-1/2", 3-1/2", 4-1/2", 5-1/2", 6-1/2", 8" and 9" are standard. Other lengths available by special order.





PIN

PLATE

MATERIAL

Mild (Low Carbon) Steel.

Mild (Low Carbon) Steel. Also available by special order in all stainless steel or all Aluminum

PLATING

Galvanized is standard.

Galvanized is standard.

WASHERS

Self - locking washers are available in a variety of sizes, Shapes. and materials.

Additional information

Gauge

Length

, , , , , , , , , ,

Available Materials

, ,

Plating

System

MILD (LOW CARBON) STEEL:

  • C-0.23% max.
  • P-0.04% max.
  • Mn - 0.90% max.
  • S-0.05% max.
MECHANICAL PROPERTIES:
  • Tensile 60,000 psi (min.)
  • Yield 50,000 psi (min.)
  • Elongation 20% (in 2 inches)

PLATING: Copper plating is standard.

ANNEALING: Studs are annealed where required.

STAINLESS STEEL:

AISI grade - 302/304/305 std.

Other grades available upon request.

MECHANICAL PROPERTIES: Values for various grades available upon request.

ANNEALING: Studs are annealed where required.

ALUMINUM:

ALLOY - 1100 & 5000 series

Other alloys available upon request

MECHANICAL PROPERTIES: Values for various alloys available upon request.

Specification sheet (PDF) coming soon.

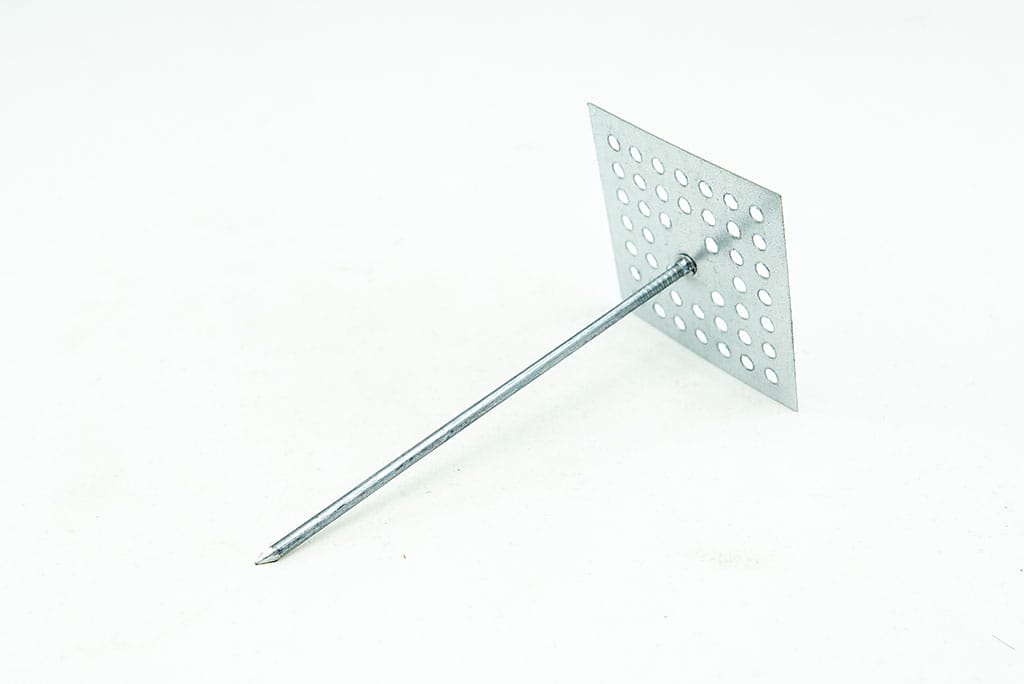

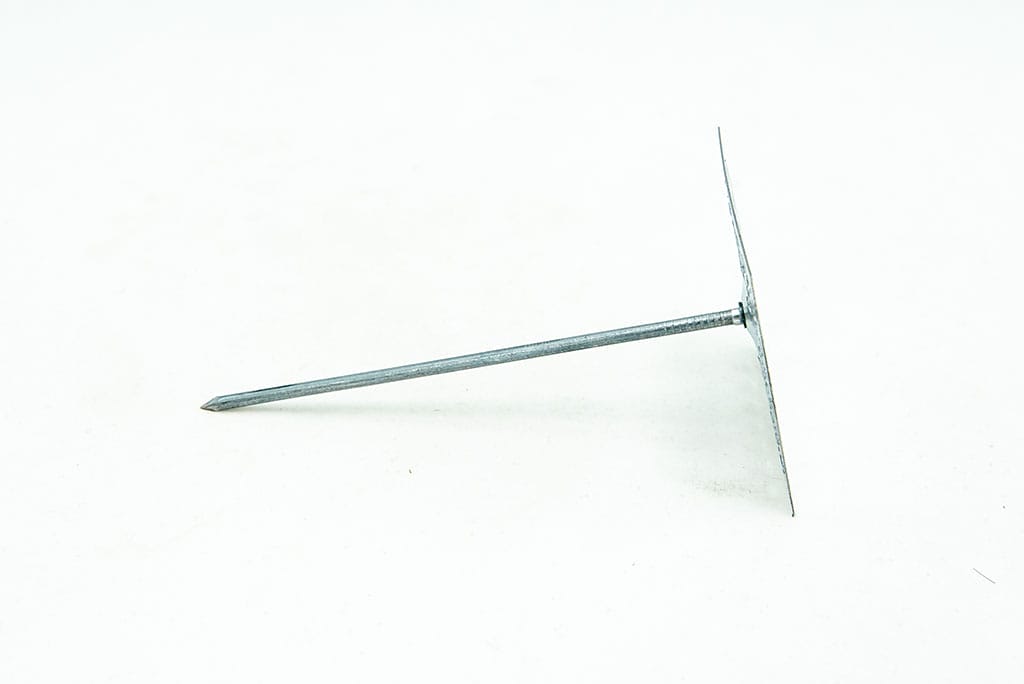

The Spindle type Insulation Anchor, or Insulation Hanger, is a fabricated 2" X 2" perforated metal base with insulation pin attached for impaling and installing various thermal and acoustical insulation materials. Popular materials for the spindle anchor are Mild (Low Carbon) Steel, Aluminum and Stainless Steel, with combinations of these materials also occurring for special applications. Typical insulation pin diameter is 12 gauge (0.105" dia.) and is used in conjunction with Self Locking Insulation Washers, or Speed Clips, and mounted using general purpose adhesive, like Davis Stud Welding IHA-177.
