Lacing Anchor (Mild – Low Carbon Steel)

Information:

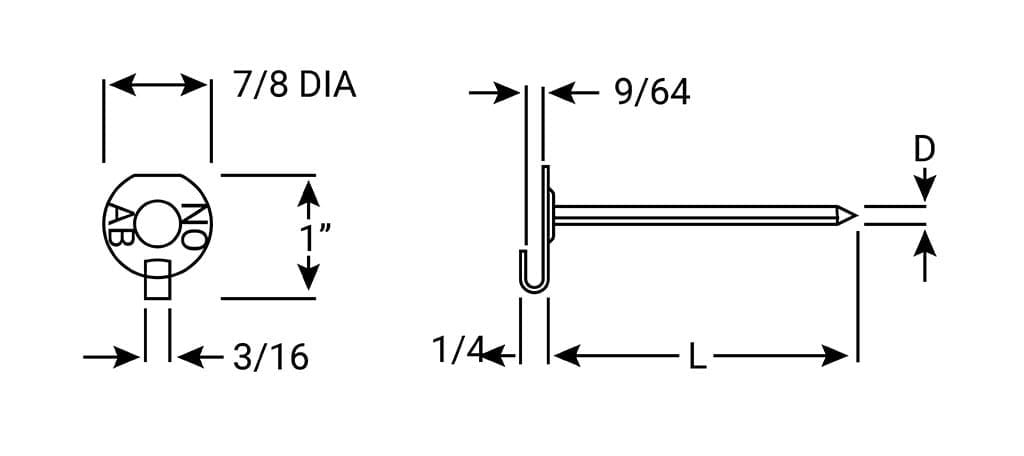

SIZE :

D

12 GA & 14 GA are standard. Other sizes are available by special order.

LENGTH :

L

2-1/2" & 4-1/2" are standard.Other lengths available by special order.

Additional information

Gauge

,

Length

, ,

Available Materials

Plating

System

MILD (LOW CARBON) STEEL:

  • C-0.23% max.
  • P-0.04% max.
  • Mn - 0.90% max.
  • S-0.05% max.
MECHANICAL PROPERTIES:
  • Tensile 60,000 psi (min.)
  • Yield 50,000 psi (min.)
  • Elongation 20% (in 2 inches)

PLATING: GZinc plating is standard

WASHERS: Self - locking washers are available in a variety of size, shape, and materials.

Specification sheet (PDF) coming soon.

The Lacing anchor, an insulation fastener, is a fabricated metal anchor consisting of a pin and tabbed, or hooked, washer. Stainless Steel is a popular material while some Lacing Anchors are made in Mild Steel. Stamped "no ab" to denote 'no asbestos', the tabbed head is 7/8" in diameter. The nail can be 12 gauge or 14 gauge in pin diameter. Typical application is for the fabrication of lacing blankets or removable covers with the anchor assisting in fabricating the blanket plus providing a "seam edge" for lacing two sides of the finished insulation blanket together.
