J-Hook CD Insulation Pin (Stainless Steel)
Information:
|

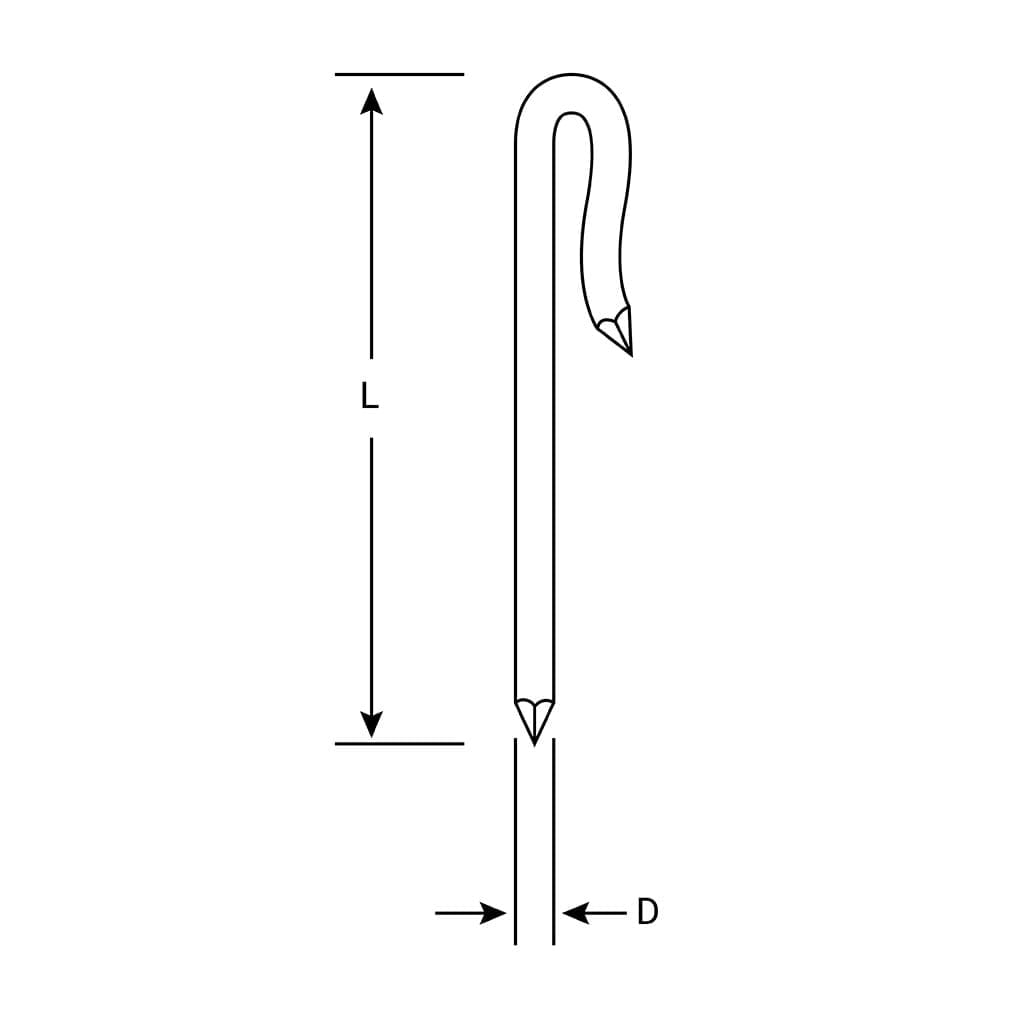

PINS |
||
|
SIZE |
D* |
L |
|
10GA |
.135 |
AS REQUIRED |
|
*Other diameters available upon request. |
||
STAINLESS STEEL:
AISI grade - 302/304/305 std.
Other grades available upon request.
MECHANICAL PROPERTIES: Values for various grades available upon request.
WASHERS: Self-locking washers are available in a variety of sizes and shapes.
Specification sheet (PDF) coming soon.

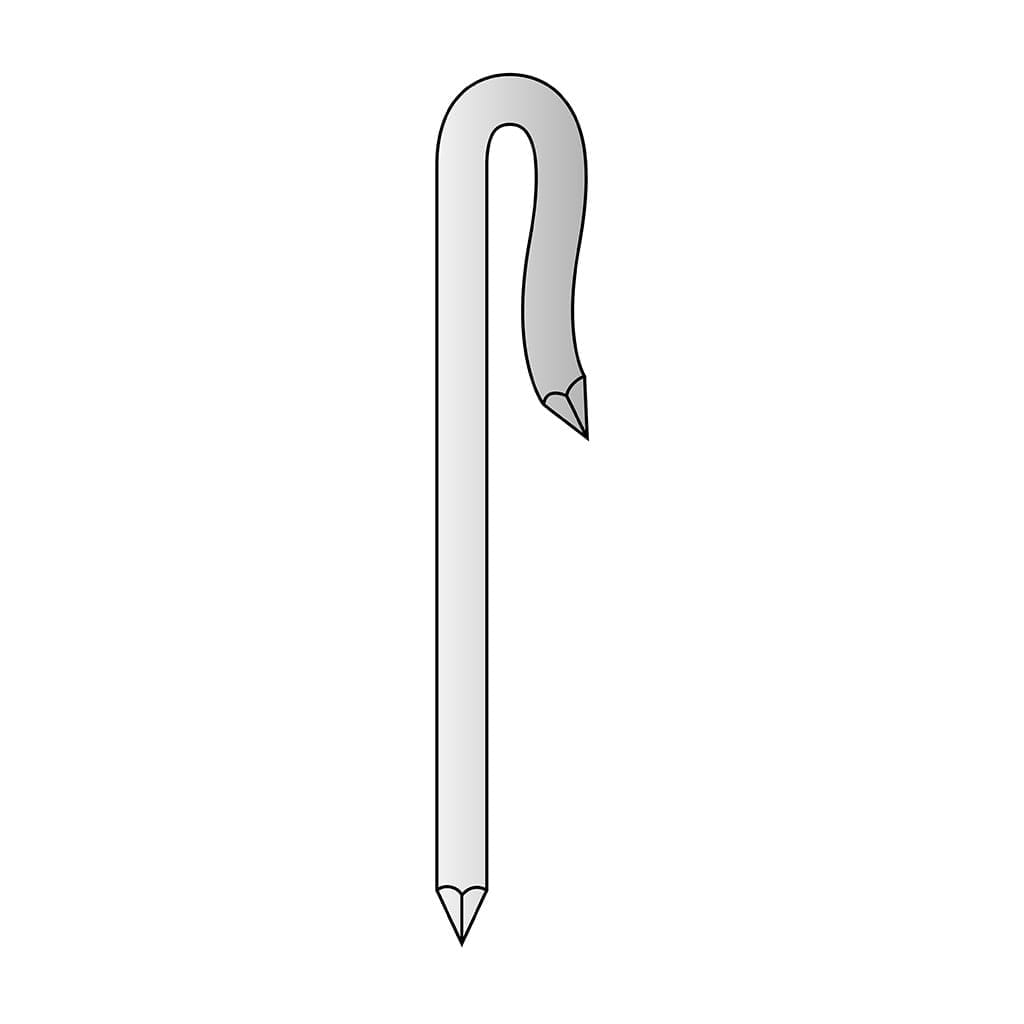

The J-Hook weld pin is an insulation fastener, fabricated from a double point weld pin of the arc stud welded variety. Shaped in a “J’ just like its name, this weld pin is usually part of a combination of elements for affixing and erecting industrial insulation applications. A typical installation finds the shorter leg of the J-Hook “hooked” under and through wire mesh, and then tack welded into place on the mesh. Insulation is captured and mounted on the longer leg using the Davis Stud Welding self-locking washer. Hole diameter for the insulation washer matches the diameter of the J-Hook. The J-Hook is most often 10gauge wire diameter, with other diameters available. Mild Steel J-Hooks are common, with some Stainless Steel applications also popular.
