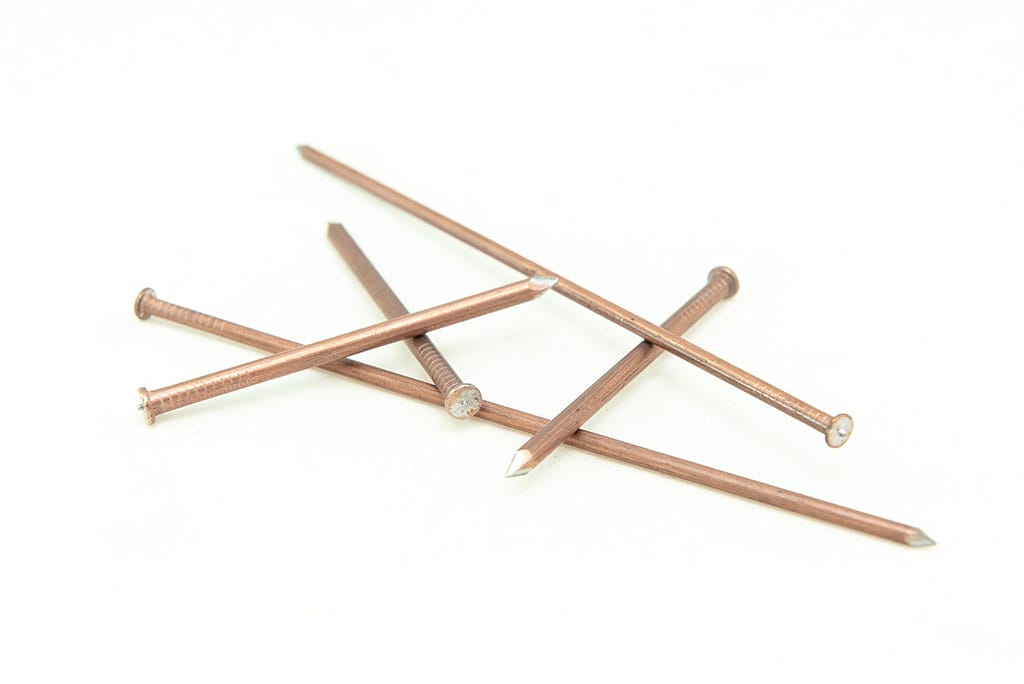

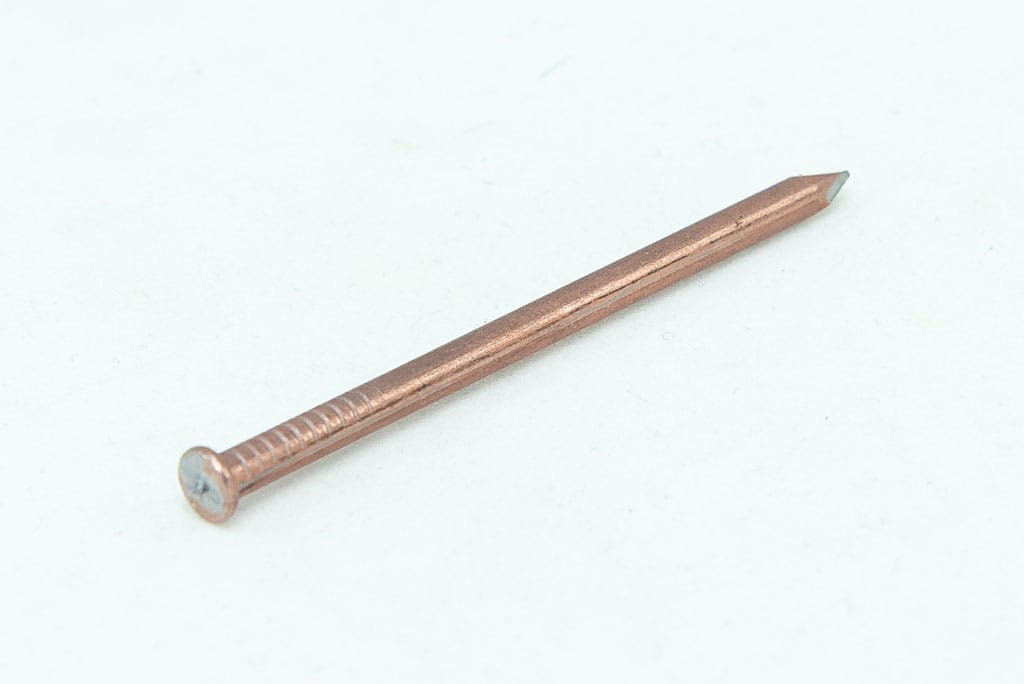

CD Insulation Nail (Mild – Low Carbon Steel)

Information:

PINS



STEEL

ALUM.

SIZE

D

FD

FD

14GA

.080

.160

-

12GA

.105

.180

.230

3MM

.118

.190

-

10GA

.135

.195

.250

Additional information

Gauge

, ,

Length

, , , , , , , , , ,

Available Materials

Plating

,

System

Weld Type

MILD (LOW CARBON) STEEL:

  • C-0.23% max.
  • P-0.04% max.
  • Mn - 0.90% max.
  • S-0.05% max.
MECHANICAL PROPERTIES:
  • Tensile 60,000 psi (min.)
  • Yield 50,000 psi (min.)
  • Elongation 20% (in 2 inches)

PLATING: Galvanized and Copper plating are available.

ANNEALING: Pins are annealed where required

WASHERS: Self-locking washers are available in a variety of sizes and shapes.

Specification sheet (PDF) coming soon.

The capacitor discharge CD Pin is a Mild (Low Carbon) Steel, Stainless Steel or Aluminum weld pin that is ideal to apply with pin welding or stud welding equipment. Manufactured with a standard Capacitor Discharge weld tip and flange, the CD Weld Pin is popularly used as an insulation fastener, in combination with self locking washers (or “speed clips”) to retain insulating material. Other applications of he weld pin replace weld studs, locator pins or various types of metal fasteners. The unique capacitor discharge weld tip and CD weld equipment for stud welding make this an economic and cost-saving metal fastener when stud welded in place.
