Additional information
| System | |
|---|---|
| Weld Type |
Standard Ferrule Grips (1″ Long)
Information:
|
FULL BASE STUD SIZE |

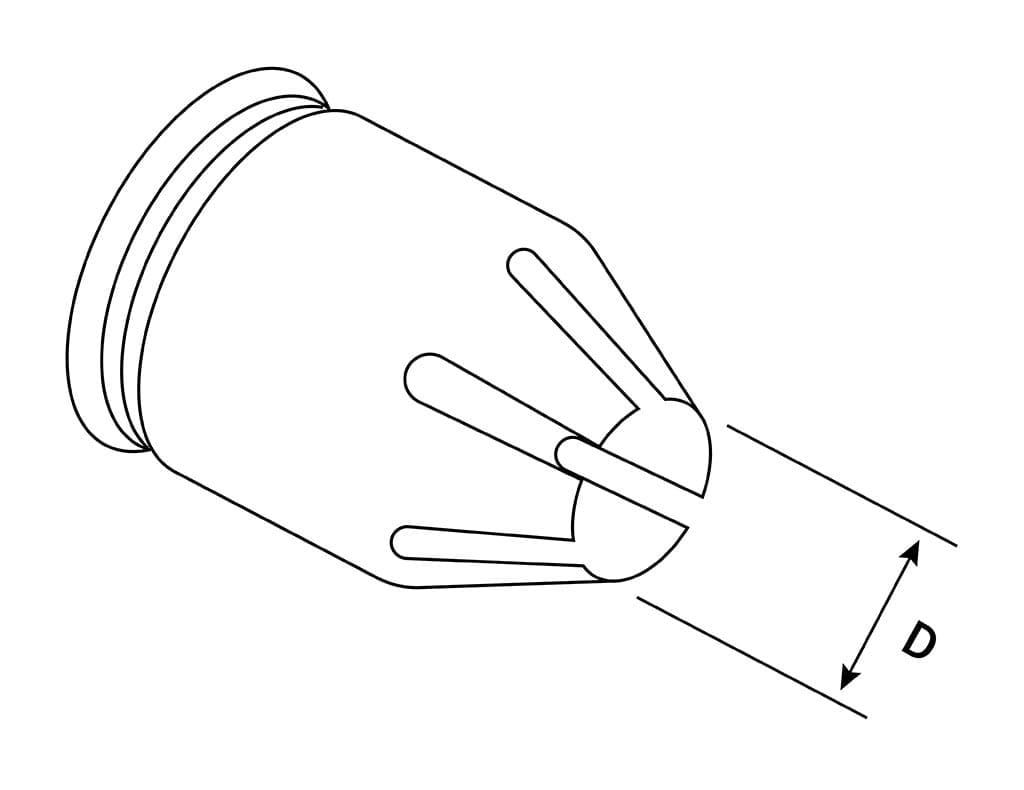

GRIP DIAMETER "D" |
USE WITH FOOT |
PART NO. |
|
10GA or # 6 |
.281 |
Small |
102-0401-01 |
|
# 8 |
.291 |
Small |
102-0401-13 |
|
3/16 or # 10 |
.305 |
Small |
102-0401-02 |
|
1/4 |
.380 |
Small |
102-0401-03 |
|
5/16 |
.445 |
Small |
102-0401-04 |
|
3/8 |
.505 |
Small |
102-0401-05 |
|
7/16 |
585 |
Small |
102-0401-06 |
|
1/2 |
.650 |
Small |
102-0401-07 |
|
5/8 |
.785 |
Medium |
102-0401-08 |
|
3/4 |
1.030 |
Medium |
102-0401-09 |
|
7/8 |
1.203 |
Large |
102-0401-10 |
|
1 |
1.406 |
Large |
102-0401-11 |
|
1/8 x 5/8 Rect. |
.921 |
Medium |
102-0401-12 |
Specification sheet (PDF) coming soon.
Looking for Standard Ferrule Grips (1″ Long)? Give us a call, we would love to help!
