Additional information
| Base | |
|---|---|
| Diameter | |
| Length | 3/4", 1-1/4", 1", 7/8", 1-1/2", 1-5/8", 1-3/4", 2-1/2", 2-1/4", 2-3/4", 2", 3", Larger sizes available upon request |
| Available Materials | |
| Plating | |
| System | |
| Threading | |
| Weld Type |
Shoulder Arc Fasteners (Threaded) – (Mild – Low Carbon Steel)
Information:
|

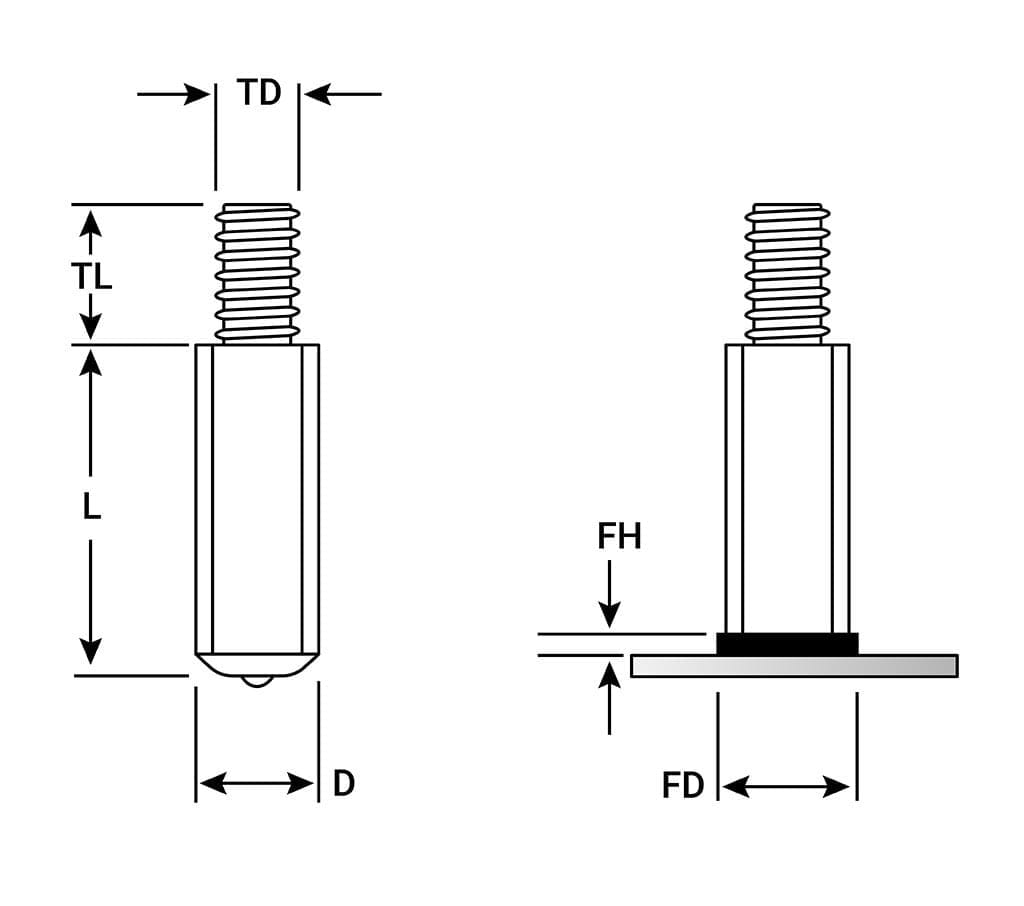

STUDS |
||||||
|
D |
MIN.L |
TD |
MAX.TL* |
BD |
BL |
FERRULE CODE |
|
1/4 |
.312 |
#8 |
.437 |
.359 |
.109 |
F250 |
|
5/16 |
.375 |
#10 |
.500 |
.437 |
.109 |
F312 |
|
3/8 |
.375 |
1/4 |
.750 |
.500 |
.125 |
F375 |
|
7/16 |
.437 |
5/16 |
.875 |
.578 |
.140 |
F437 |
|
1/2 |
.500 |
3/8 |
1.000 |
.627 |
.156 |
F500 |
|
5/8 |
.625 |
1/2 |
1.250 |
.796 |
.187 |
F625 |
|
3/4 |
.625 |
5/8 |
1.625 |
.937 |
.250 |
F750 |
|
7/8 |
.750 |
3/4 |
1.875 |
1.093 |
.312 |
F875 |
|
FERRULES |
|||||
|
CODE |
B |
D |
E |
M |
PART NO. |
|
F250 |
.380 |
.455 |
.156 |
.390 |
092 0005 06 |
|
F312 |
.445 |
.578 |
.156 |
.390 |
092 0005 07 |
|
F375 |
.505 |
.640 |
.156 |
.390 |
092 0005 08 |
|
F437 |
.585 |
.703 |
.188 |
.422 |
092 0005 09 |
|
F500 |
.650 |
.795 |
.188 |
.438 |
092 0005 10 |
|
F625 |
.785 |
1.030 |
.188 |
.516 |
092 0005 11 |
|
F750 |
1.030 |
1.218 |
.188 |
.656 |
092 0005 12 |
|
F875 |
1.203 |
1.406 |
.188 |
.732 |
092 0005 13 |
- Additional information
- Mild Steel Specs.
- Stainless Steel Specs.
- Ferrules
- Documentation
- Thread
- Information
MILD (LOW CARBON) STEEL:
- C-0.23% max.
- P-0.04% max.
- Mn - 0.90% max.
- S-0.05% max.
- Tensile 60,000 psi (min.)
- Yield 50,000 psi (min.)
- Elongation 20% (in 2 inches)
PLATING: Plating is not standard. Copper, nickel, and zine available upon customer request.
STAINLESS STEEL:
AISI grade - 302/304/305 std.
Other grades available upon request.
MECHANICAL PROPERTIES: Values for various grades available upon request.
FERRULES:
Ferrules are component parts of studs. Not sold separately.
Specification sheet (PDF) coming soon.
THREADS:
Standard thread is UNC-2A (Rolled when possible),other threads are available upon request. Maximum standard thread length is 3-7/8".

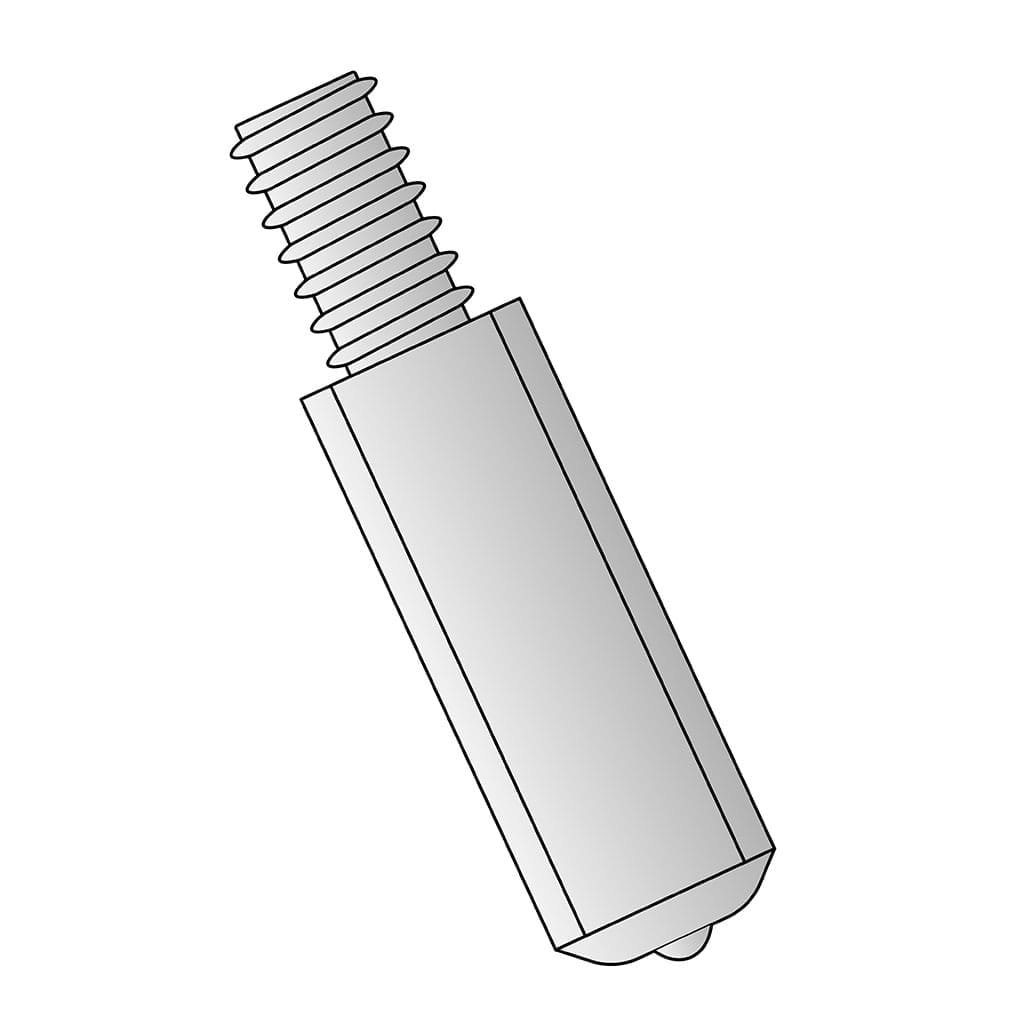

The Shoulder Arc Stud is a partially threaded weld stud for application with arc stud welding equipment. This type of stud welded fastener is usually flux-loaded on the weld end for studwelding applications. Available in Mild (Low Carbon) Steel and stainless steel, other special materials and grades are available. The shoulder stud is characterized by a base portion without threading and external threads starting above the unthreaded portion, or base. The difference in diameter of the base versus the threaded portion creates a "shoulder", which is often used for part mounting and stand-offs in design. Studwelding of the weld stud burns off a portion of the base so that the pre-weld, post-weld length dimension should be considered. All orders for arc weld studs from Davis Stud Welding include ceramic studwelding ferrules properly sized for the weld stud ordered.
Looking for Shoulder Arc Fasteners (Threaded) – (Mild – Low Carbon Steel)? Give us a call, we would love to help!
