Self Locking Washers (Square)

Description

WA250

WS 150

WAI25

Diameter

2-1/2×2-1/.2

l-l/ 2x 1-1/2

1-1 /4.x 1-1/8

Thickness

.015 nom.

.015 nom.

.015 nom.

Material

Mild Steel

Mild Steel

Mild Steel

Plating

Galv.

Galv.

Galv.

Edges/flat or beveled

beveled

beveled

beveled

Other materials available

Alum.. S.S.

Alum.. S.S.

Alum.. S.S.

Packaged per carton

1000

1000

1000

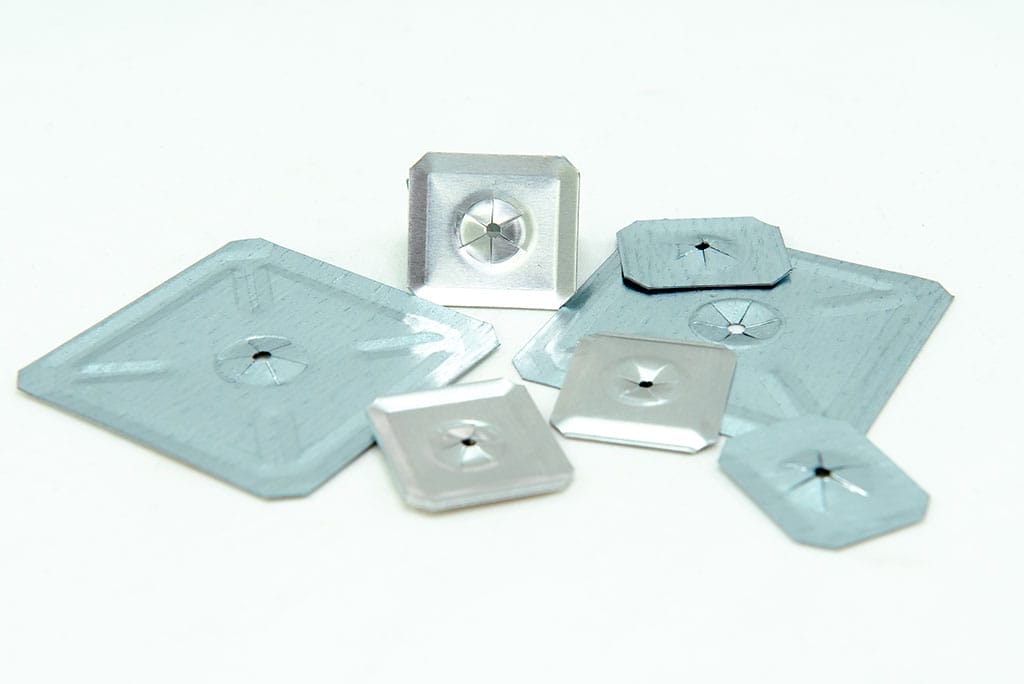

DAVIS STUD WELDING Self-Locking Washers are used in conjunction with DAVIS STUD WELDING weld pins, insul-anchors and lacing anchors to fasten insulation in place. Simply press the self-locking washer onto the pin up to the insulation until the desired position is reached. Then clip off, (or bend over) the remaining portion of pin for a permanent attachment.

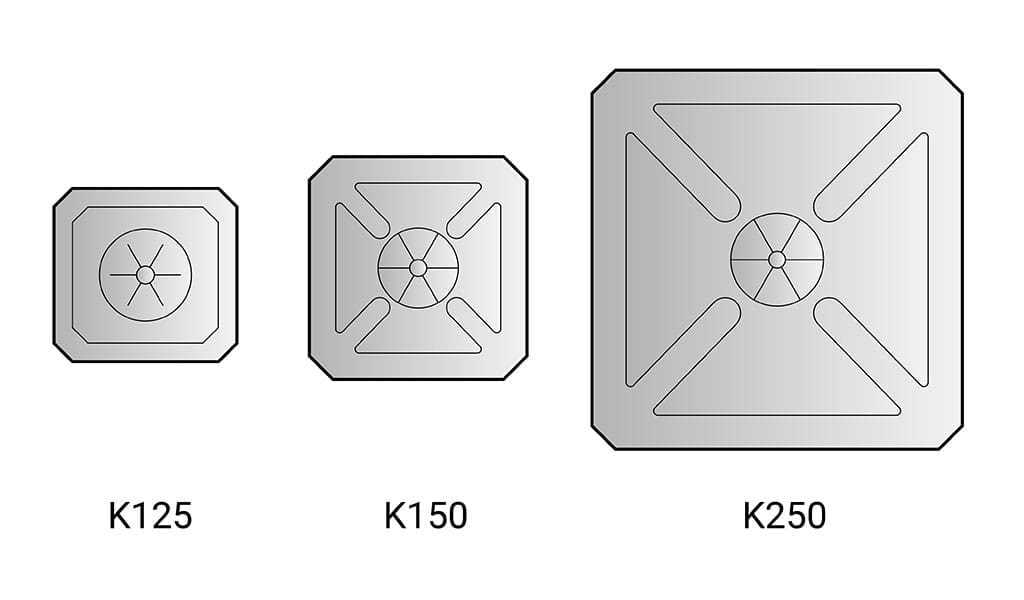

Both Round or Square self-locking washers are available as a matter of design or application preference. The domed, multi-lanced hole design provides for ease of locating washer on pin and positive locking. Most styles of washers are manufactured with a beveled edge to prevent the washer from cutting into the insulation facing,

DAVIS STUD WELDINGSelf-Locking Washers are available according to the chart above and with standard I0GA, !2GA,or I4GA hole sizes off-the-shelf. Other material plating combinations and hole sizes are available by special order.
