Additional information
| Diameter | |
|---|---|
| Length | 3/4", 1-1/4", 1", 7/8", 1-1/2", 1-5/8", 1-3/4", 2-1/2", 2-1/4", 2-3/4", 2", 3", Larger sizes available upon request |
| Available Materials | |
| Plating | |
| System | |
| Weld Type |
Rectangular Arc Fasteners (T Slotted) – (Mild – Low Carbon Steel)
Information:
|

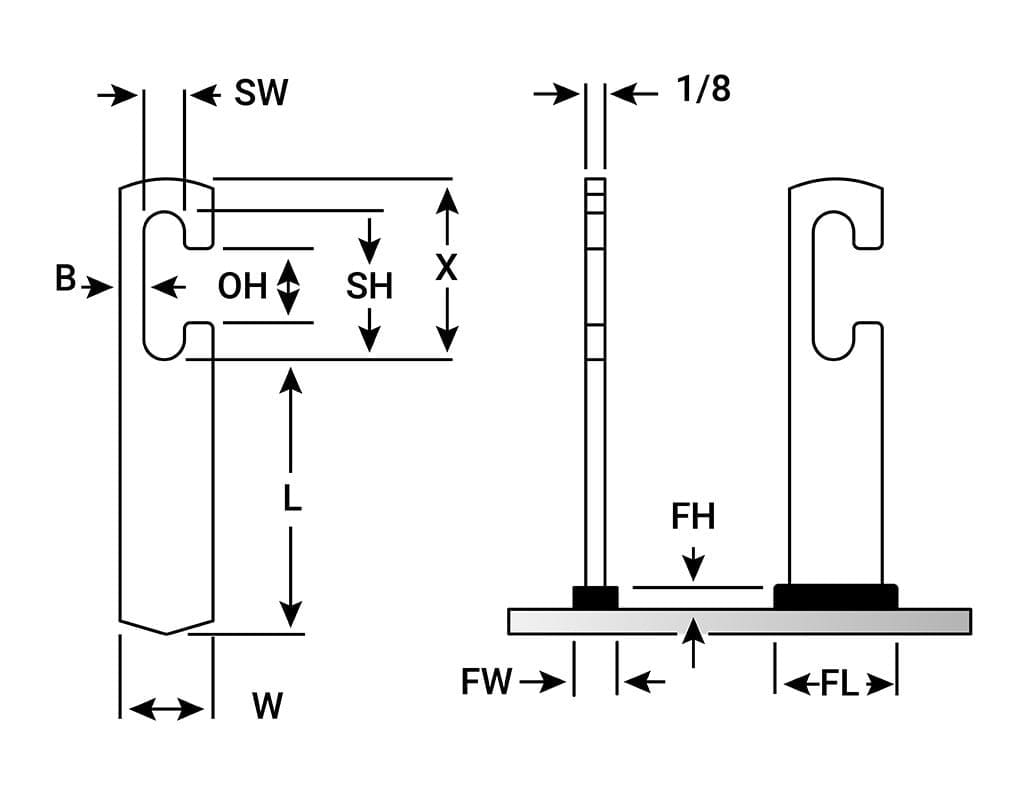

STUDS |
|||||
|
W |
MIN. L |
OH |
SH |
X |
SW |
|
3/8 |
1/2 |
.322 |
.531 |
.765 |
.130 |
|
5/8 |
1/2 |
.500 |
1.000 |
1.250 |
.255 |
|
STUDS CONTINUED |
||||
|
B |
FW |
FL |
FH |
FERRULE CODE |
|
.122 |
.218 |
.437 |
.125 |
R375 |
|
.185 |
.218 |
.687 |
.156 |
R625 |
|
FERRULES |
|||||
|
CODE |
B |
D |
E |
M |
PART NO. |
|
R375 |
.505 |
.625 |
.156 |
.390 |
092 0020 08 |
|
R625 |
.921 |
.1.093 |
.188 |
.438 |
092 0020 11 |
MILD (LOW CARBON) STEEL:
- C-0.23% max.
- P-0.04% max.
- Mn - 0.90% max.
- S-0.05% max.
- Tensile 60,000 psi (min.)
- Yield 50,000 psi (min.)
- Elongation 20% (in 2 inches)
PLATING: Plating is not standard. Copper, nickel, and zine available upon customer request.
STAINLESS STEEL:
AISI grade - 302/304/305 std.
Other grades available upon request.
MECHANICAL PROPERTIES: Values for various grades available upon request.
FERRULES:
Ferrules are component parts of studs. Not sold separately.
Specification sheet (PDF) coming soon.

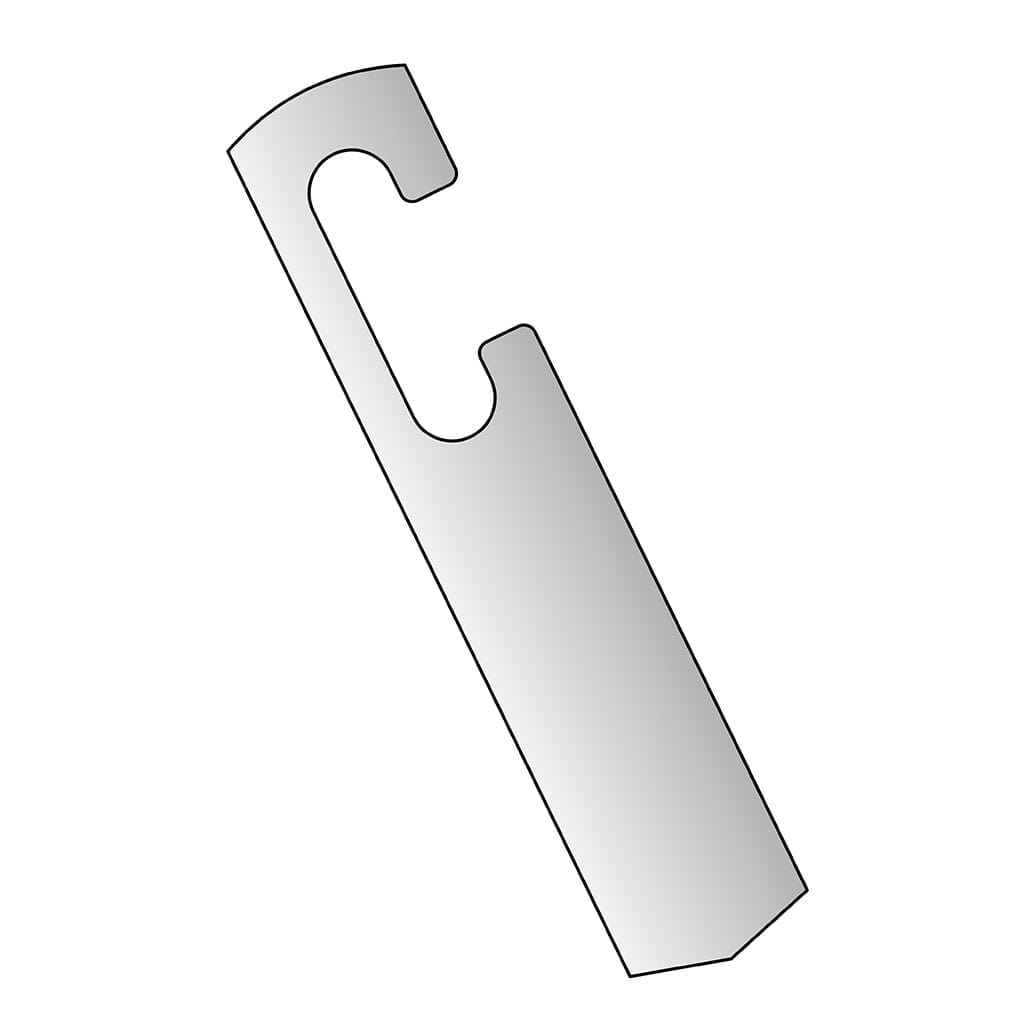

The Rectangular Slotted Arc Stud, sometimes called a "C" slot or "T" slot, is a rectangular pin for application with arc stud welding equipment. This type of stud welded fastener is usually pointed on the weld end for studwelding applications. Available in Mild (Low Carbon) Steel and stainless steel as standards, other special materials and grades are available. Rectangular in shape, the weld stud is slotted on its upper portion and can be used to retain mating parts or “closed” to retain the part in question. Studwelding of the weld stud burns off a portion of the base so that the pre-weld, post-weld length dimension should be considered. All orders for arc weld studs from Davis Stud Welding include ceramic studwelding ferrules properly sized for the weld stud ordered.
