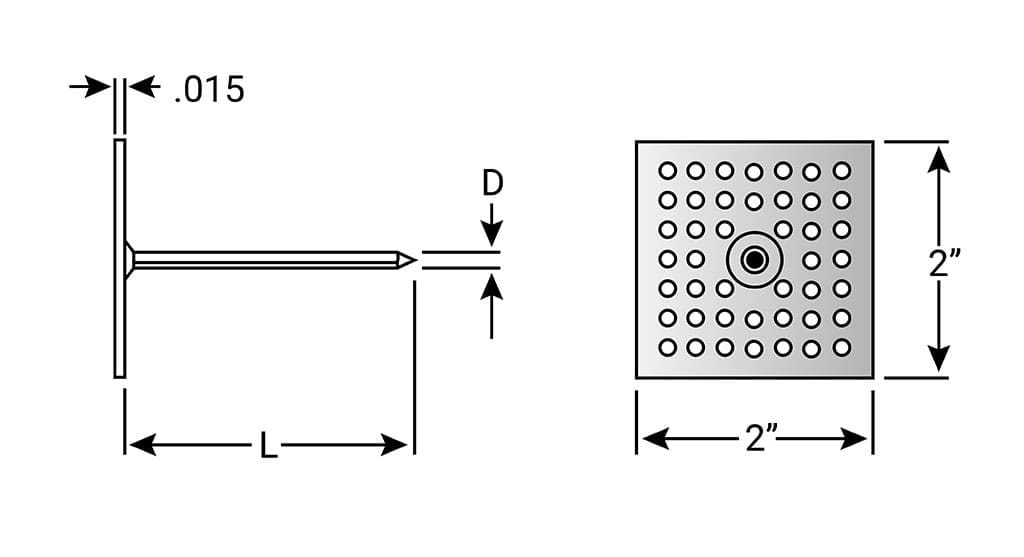

Perforated Base Insulation Anchor
Information:
|
SIZE : |
D |
12 GA (.105*) is standard. Other sizes available by special order only. |
|
LENGTH : |
L |
1",1-5/8", 2", 2-1/2", 3-1/2", 4-1/2", 5-1/2", 6-1/2", 8" and 9" are standard. Other lengths available by special order. |
|
|
PIN |
PLATE |
|
MATERIAL |
Mild (Low Carbon) Steel. |
Mild (Low Carbon) Steel. Also available by special order in all stainless steel or all Aluminum |
|
PLATING |
Galvanized is standard. |
Galvanized is standard. |
|
WASHERS |
Self - locking washers are available in a variety of sizes, Shapes. and materials. |
|
- Additional information
- Mild Steel Specs.
- Stainless Steel Specs.
- Aluminum Specs.
- Documentation
- Information
MILD (LOW CARBON) STEEL:
- C-0.23% max.
- P-0.04% max.
- Mn - 0.90% max.
- S-0.05% max.
- Tensile 60,000 psi (min.)
- Yield 50,000 psi (min.)
- Elongation 20% (in 2 inches)
PLATING: Copper plating is standard.
ANNEALING: Studs are annealed where required.
STAINLESS STEEL:
AISI grade - 302/304/305 std.
Other grades available upon request.
MECHANICAL PROPERTIES: Values for various grades available upon request.
ANNEALING: Studs are annealed where required.
ALUMINUM:
ALLOY - 1100 & 5000 series
Other alloys available upon request
MECHANICAL PROPERTIES: Values for various alloys available upon request.
Specification sheet (PDF) coming soon.
The Spindle type Insulation Anchor, or Insulation Hanger, is a fabricated 2" X 2" perforated metal base with insulation pin attached for impaling and installing various thermal and acoustical insulation materials. Popular materials for the spindle anchor are Mild (Low Carbon) Steel, Aluminum and Stainless Steel, with combinations of these materials also occurring for special applications. Typical insulation pin diameter is 12 gauge (0.105" dia.) and is used in conjunction with Self Locking Insulation Washers, or Speed Clips, and mounted using general purpose adhesive, like Davis Stud Welding IHA-177.
