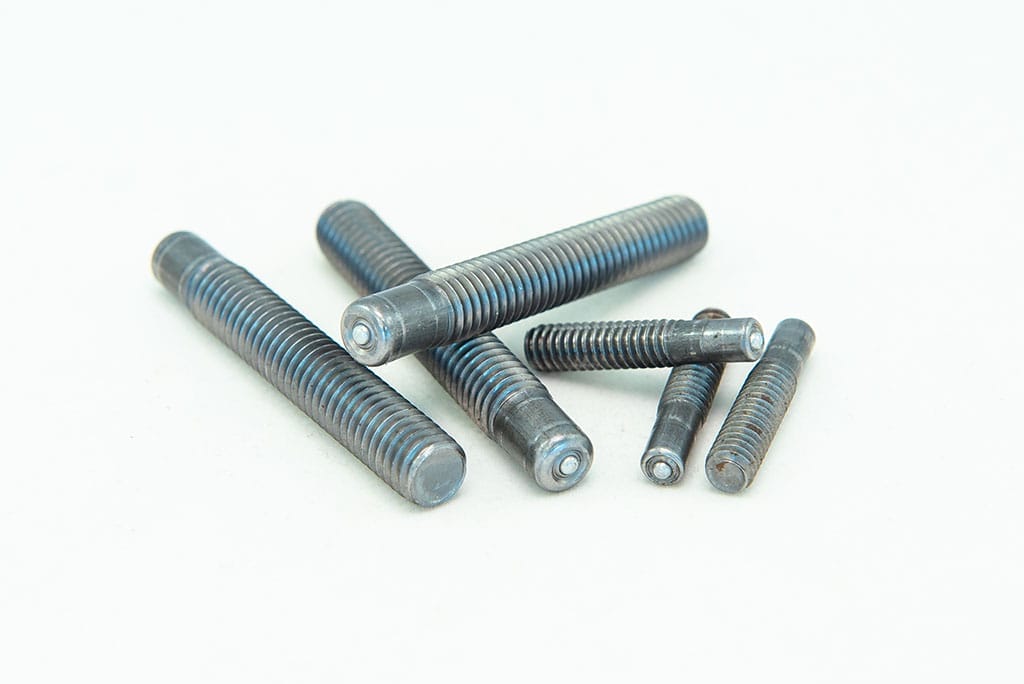

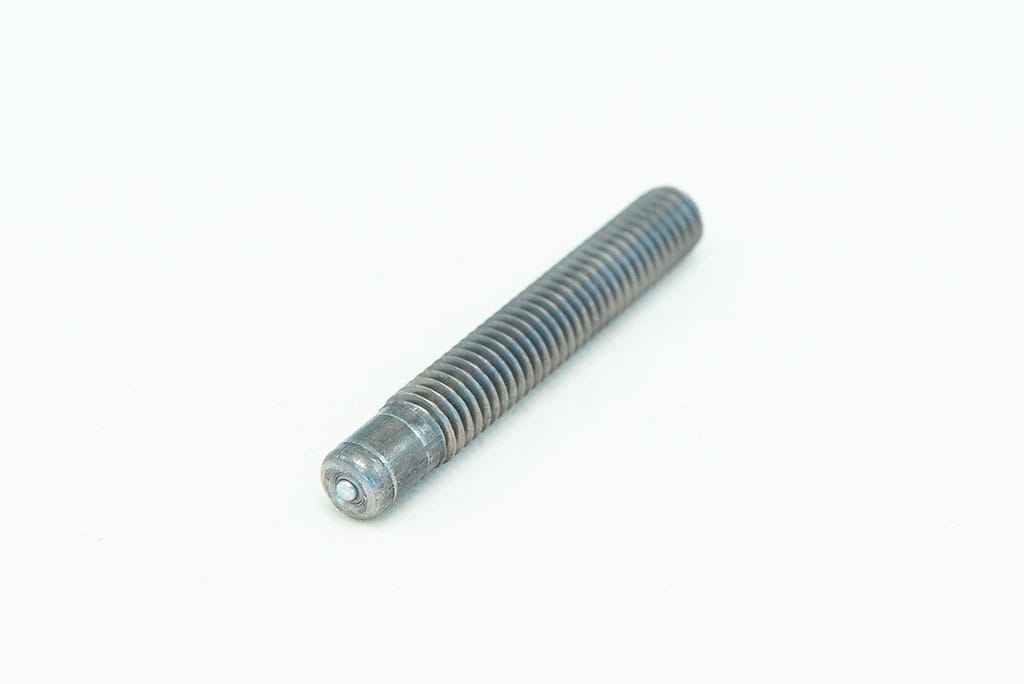

Partial Thread Arc Fasteners (Mild – Low Carbon Steel)
Information:
|
STUDS |
||||||
|
D |
MIN. L |
BD |
MIN. BL |
FD |
FH |
FERRULE CODE |
|
1/4 |
3/4 |
.215 |
.375 |
.312 |
.093 |
P250 |
|
5/16 |
3/4 |
.275 |
.375 |
.406 |
.109 |
P312 |
|
3/8 |
3/4 |
.330 |
.390 |
.468 |
.109 |
P375 |
|
7/16 |
3/4 |
.387 |
.437 |
.531 |
.125 |
P347 |
|
1/2 |
7/8 |
.446 |
.500 |
.593 |
.156 |
P500 |
|
5/8 |
1 |
.562 |
.625 |
.750 |
.187 |
P625 |
|
3/4 |
1-1/4 |
.680 |
.796 |
.920 |
.250 |
P750 |
|
7/8 |
1-3/8 |
.798 |
.859 |
1.046 |
.312 |
P875 |
|
1* |
1-1/2 |
.913 |
.921 |
1.187 |
.375 |
P1000 |
|
FERRULES |
|||||
|
CODE |
B |
D |
E |
M |
PART NO. |
|
P250 |
.380 |
.455 |
.125 |
.250 |
092 0008 06 |
|
P312 |
.445 |
.535 |
.125 |
.250 |
092 0008 07 |
|
P375 |
.505 |
.595 |
.125 |
.265 |
092 0008 08 |
|
P437 |
.585 |
.675 |
.156 |
.329 |
092 0008 09 |
|
P500 |
.650 |
.740 |
.156 |
.362 |
092 0008 10 |
|
P625 |
.785 |
.906 |
.156 |
.433 |
092 0008 11 |
|
P750 |
1.030 |
1.150 |
.187 |
.526 |
092 0008 12 |
|
P875 |
1.203 |
1.330 |
.187 |
.593 |
092 0008 13 |
|
P1000 |
1.406 |
1.500 |
.187 |
.593 |
092 0008 14 |
- Additional information
- Mild Steel Specs.
- Stainless Steel Specs.
- Ferrules
- Documentation
- Thread
- Information
MILD (LOW CARBON) STEEL:
- C-0.23% max.
- P-0.04% max.
- Mn - 0.90% max.
- S-0.05% max.
- Tensile 60,000 psi (min.)
- Yield 50,000 psi (min.)
- Elongation 20% (in 2 inches)
PLATING: Plating is not standard. Copper, nickel, and zine available upon customer request.
STAINLESS STEEL:
AISI grade - 302/304/305 std.
Other grades available upon request.
MECHANICAL PROPERTIES: Values for various grades available upon request.
FERRULES:
Ferrules are component parts of studs. Not sold separately.
Specification sheet (PDF) coming soon.
THREADS:
Standard thread is UNC-2A (Rolled when possible),other threads are available upon request. Maximum standard thread length is 3-7/8".
The Standard Thread Arc Stud, or pitch diameter weld stud, is a threaded weld stud for application with arc stud welding equipment. This type of stud welded fastener is usually flux-loaded on the weld end for studwelding applications. Available in Mild (Low Carbon) Steel, stainless steel and Aluminum as standards, other special materials and grades are available. The standard thread style is characterized by a base area without threading and external threads starting above the unthreaded portion. Studwelding burns off a portion of the base so that the pre-weld, post-weld length dimension should be considered. All orders for arc weld studs from Davis Stud Welding include ceramic studwelding ferrules properly sized for the weld stud ordered.
