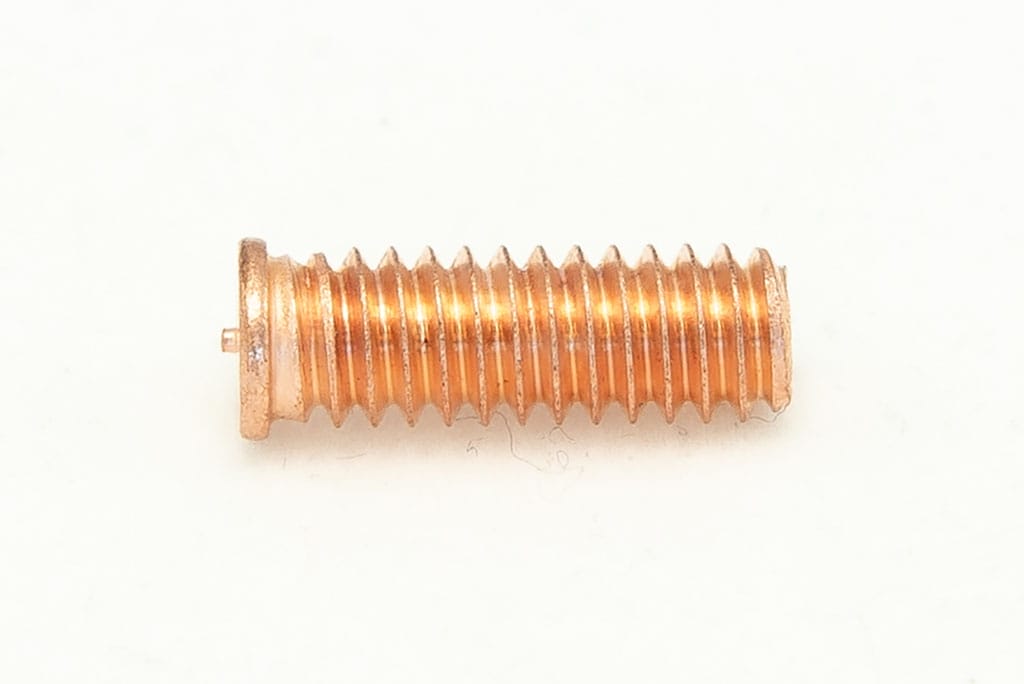

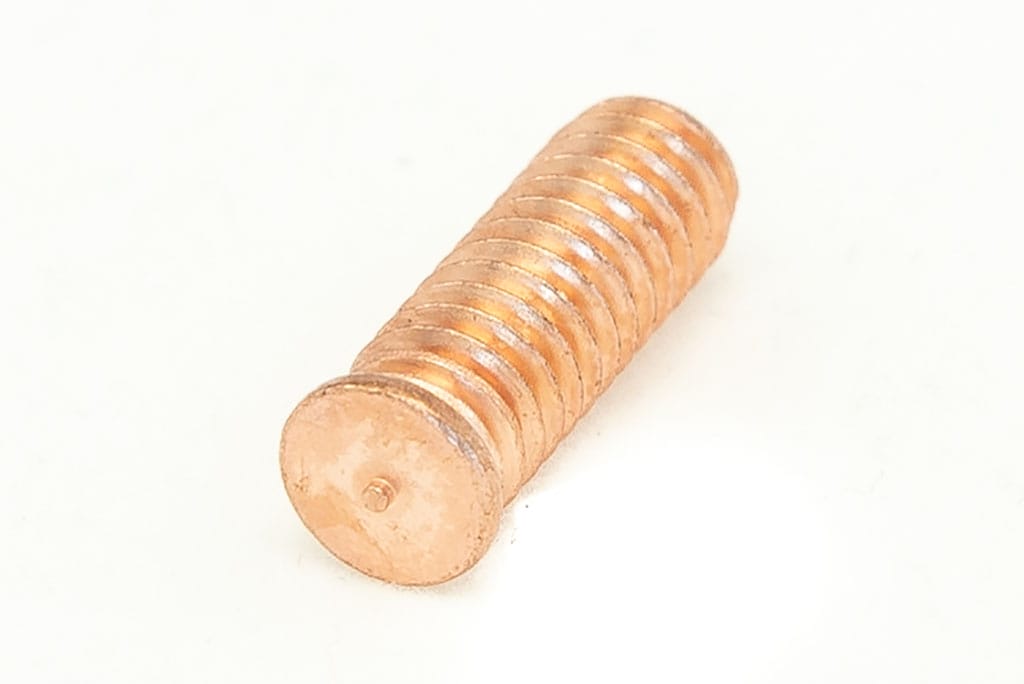

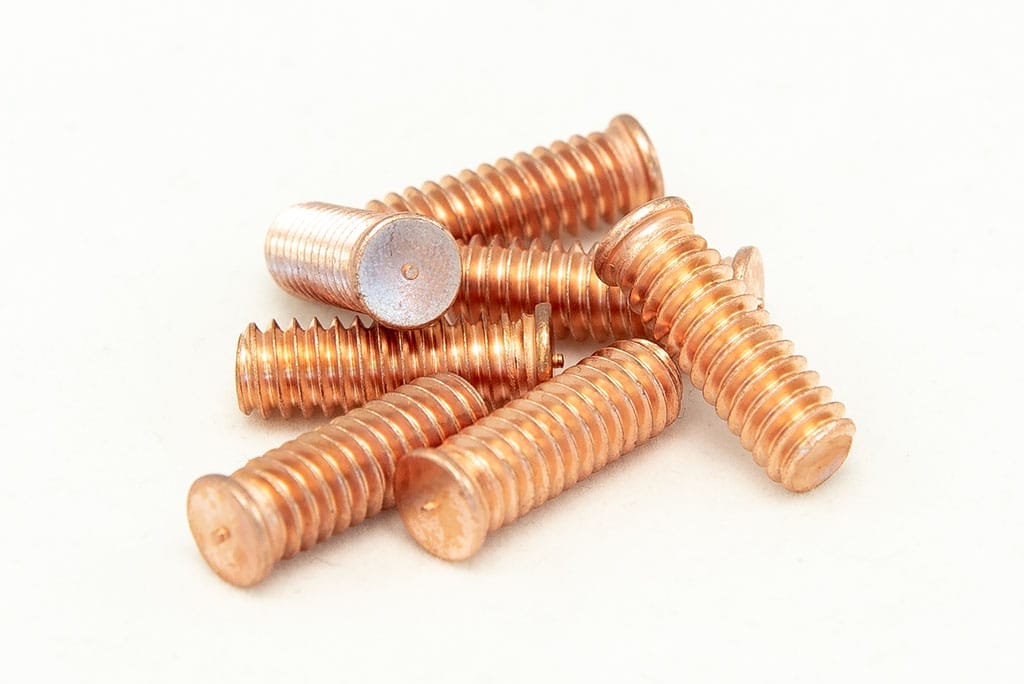

Mini Flanged Threaded CD Weld Stud (Mild – Low Carbon Steel)
Information:
|
D |
FD |
MIN.L |
|
4-40 |
.143 |
.250 |
|
6-32 |
.169 |
.250 |
|
8-32 |
.195 |
.250 |
|
10-32 |
.221 |
.250 |
|
10-24 |
.221 |
.250 |
|
1/4-20 |
.281 |
.375 |
|
5/16-18 |
.342 |
.500 |
MILD (LOW CARBON) STEEL:
- C-0.23% max.
- P-0.04% max.
- Mn - 0.90% max.
- S-0.05% max.
- Tensile 60,000 psi (min.)
- Yield 50,000 psi (min.)
- Elongation 20% (in 2 inches)
PLATING: Copper plating is standard.
ANNEALING: Studs are annealed where required.
STAINLESS STEEL:
AISI grade - 302/304/305 std.
Other grades available upon request.
MECHANICAL PROPERTIES: Values for various grades available upon request.
ANNEALING: Studs are annealed where required.
ALUMINUM:
ALLOY - 1100 & 5000 series
Other alloys available upon request
MECHANICAL PROPERTIES: Values for various alloys available upon request.
Specification sheet (PDF) coming soon.
