Knurled Arc Fasteners (Mild – Low Carbon Steel)

Information:

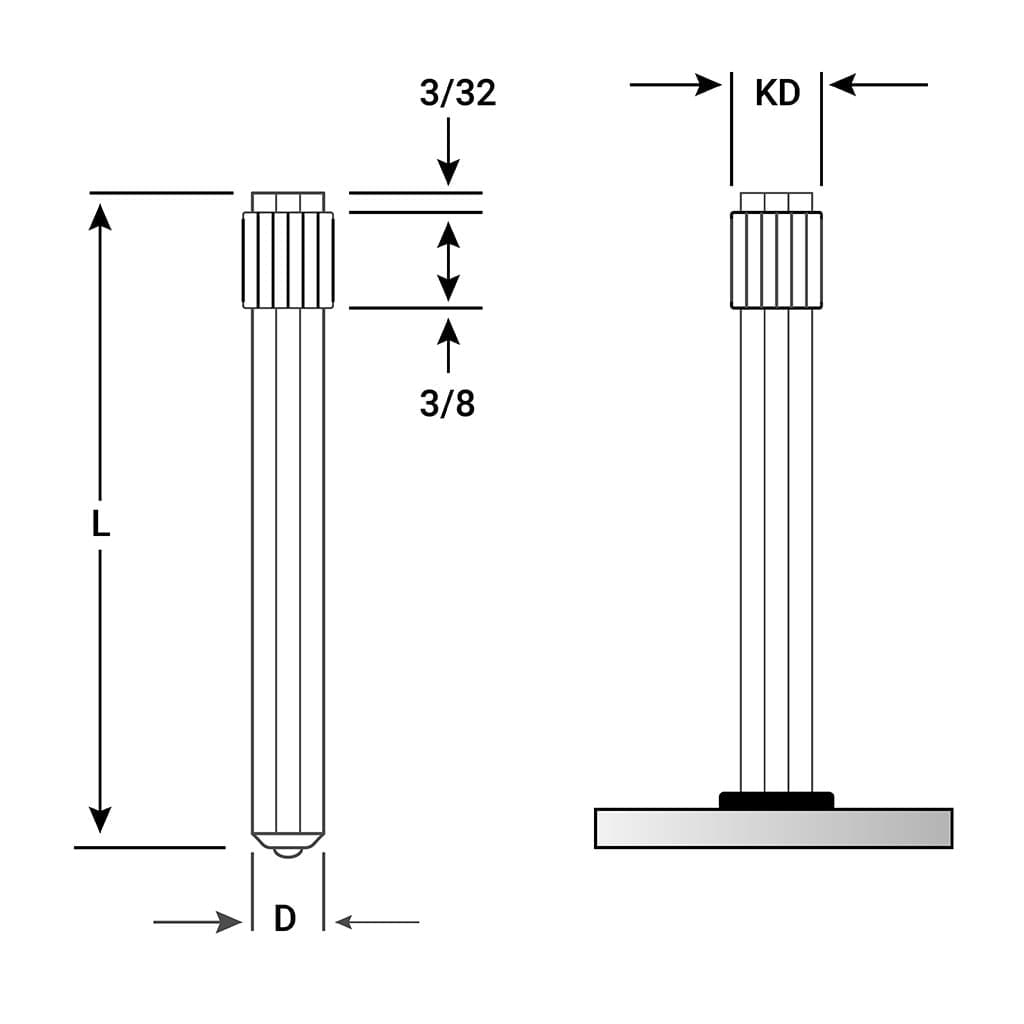

STUDS

D

MIN. L

KD

FERRULE CODE

5/16

1"

.327

F312



FERRULES

CODE

B

D

E

M

PART NO.

F312

.445

.578

.156

.390

092 0005 07

Additional information

Diameter

Length

, , , , , , , , , ,

Available Materials

Plating

, ,

System

Threading

Weld Type

MILD (LOW CARBON) STEEL:

  • C-0.23% max.
  • P-0.04% max.
  • Mn - 0.90% max.
  • S-0.05% max.
MECHANICAL PROPERTIES:
  • Tensile 60,000 psi (min.)
  • Yield 50,000 psi (min.)
  • Elongation 20% (in 2 inches)

PLATING: Plating is not standard. Copper, nickel, and zine available upon customer request.

STAINLESS STEEL:

AISI grade - 302/304/305 std.

Other grades available upon request.

MECHANICAL PROPERTIES: Values for various grades available upon request.

FERRULES:

Ferrules are component parts of studs. Not sold separately.

Specification sheet (PDF) coming soon.

THREADS:

Standard thread is UNC-2A (Rolled when possible),other threads are available upon request. Maximum standard thread length is 3-7/8".

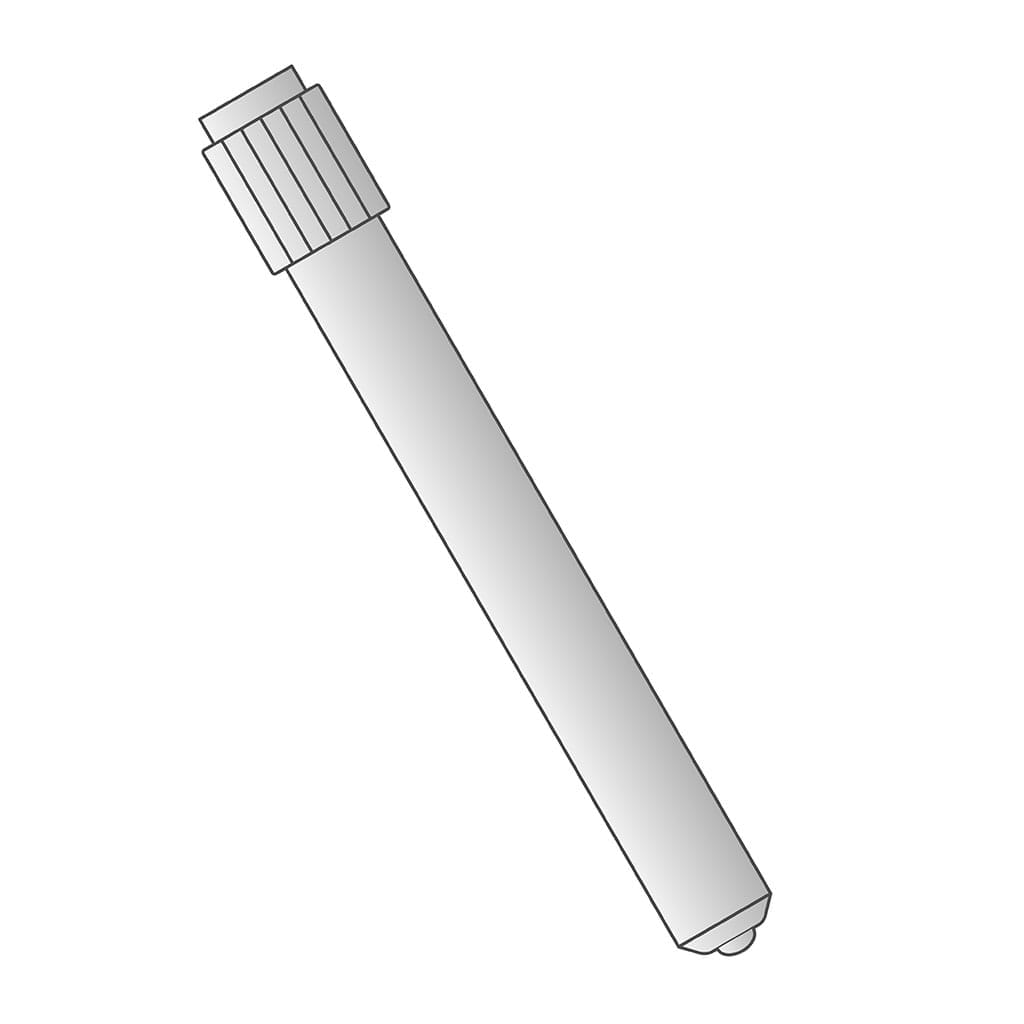

The Knurled Arc Stud is a weld stud designed for application with arc stud welding equipment. This type of stud welded fastener is usually flux-loaded on the weld end for studwelding applications. Available in Mild (Low Carbon) Steel and stainless steel, other special materials and grades are available. The knurled stud style is characterized by a plain base section and external knurling starting above the unthreaded portion. Studwelding of the weld stud burns off a portion of the base so that the pre-weld, post-weld length dimension should be considered. All orders for arc weld studs from Davis Stud Welding include ceramic studwelding ferrules properly sized for the weld stud ordered. Knurled studs are often used with Drive Plates for special insulation fastening applications.
