Full Thread Arc Fasteners (Stainless Steel)
Information:
|
STUDS |
||||
|
D |
MIN. L |
FD |
FH |
FERRULE CODE |
|
#10 |
3/4 |
.281 |
.093 |
F187 |
|
1/4 |
3/4 |
359 |
.109 |
F250 |
|
5/16 |
3/4 |
.437 |
.109 |
F312 |
|
3/8 |
3/4 |
.500 |
.125 |
F375 |
|
7/16 |
7/8 |
.578 |
.140 |
F437 |
|
1/2 |
7/8 |
.625 |
.156 |
F500 |
|
5/8 |
1-1/8 |
.796 |
.187 |
F625 |
|
3/4 |
1-1/8 |
.937 |
.250 |
F750 |
|
7/8 |
1-1/2 |
1.093 |
.312 |
F875 |
|

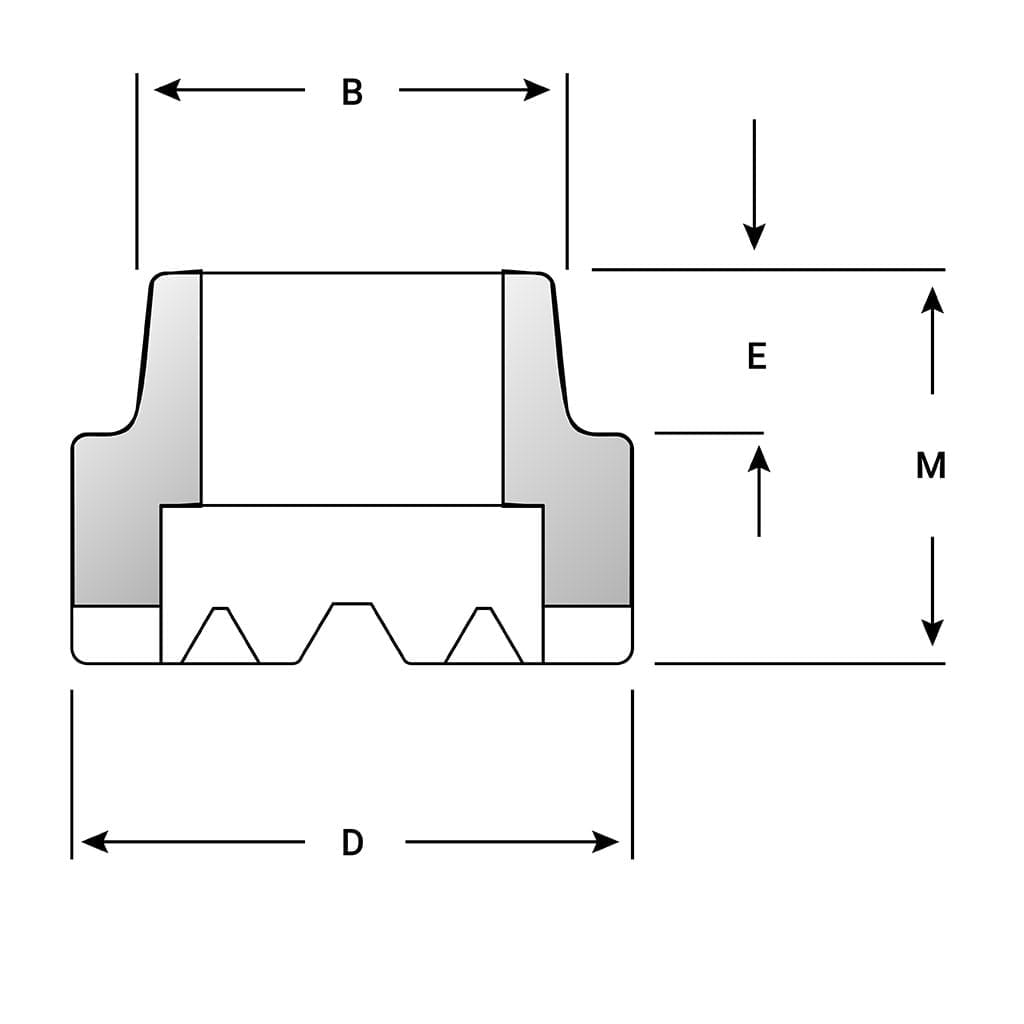

FERRULES |
|||||
|
CODE |
B |
D |
E |
M |
PART NO. |
|
F187 |
.305 |
.390 |
.156 |
.390 |
092 0005 05 |
|
F250 |
.380 |
.455 |
.156 |
.390 |
092 0005 06 |
|
F312 |
.445 |
.578 |
.156 |
.265 |
092 0005 07 |
|
F375 |
.505 |
.640 |
.156 |
.329 |
092 0005 08 |
|
F437 |
.585 |
.703 |
.188 |
.362 |
092 0005 09 |
|
F500 |
.650 |
.795 |
.188 |
.433 |
092 0005 10 |
|
F625 |
.785 |
1.030 |
.188 |
.526 |
092 0005 11 |
|
F750 |
1.030 |
1.218 |
.188 |
.593 |
092 0005 12 |
|
F875 |
1.203 |
1.406 |
.188 |
.732 |
092 0005 13 |
- Additional information
- Mild Steel Specs.
- Stainless Steel Specs.
- Ferrules
- Documentation
- Thread
- Information
MILD (LOW CARBON) STEEL:
- C-0.23% max.
- P-0.04% max.
- Mn - 0.90% max.
- S-0.05% max.
- Tensile 60,000 psi (min.)
- Yield 50,000 psi (min.)
- Elongation 20% (in 2 inches)
PLATING: Plating is not standard. Copper, nickel, and zine available upon customer request.
STAINLESS STEEL:
AISI grade - 302/304/305 std.
Other grades available upon request.
MECHANICAL PROPERTIES: Values for various grades available upon request.
FERRULES:
Ferrules are component parts of studs. Not sold separately.
Specification sheet (PDF) coming soon.
THREADS:
Standard thread is UNC-2A (Rolled when possible),other threads are available upon request. Maximum standard thread length is 3-7/8".
* Ferrules used with studs 3/4" long are special "short F" ferrules.
TEST01 KNOCK-OFF studs are available if shorter lengths are required.

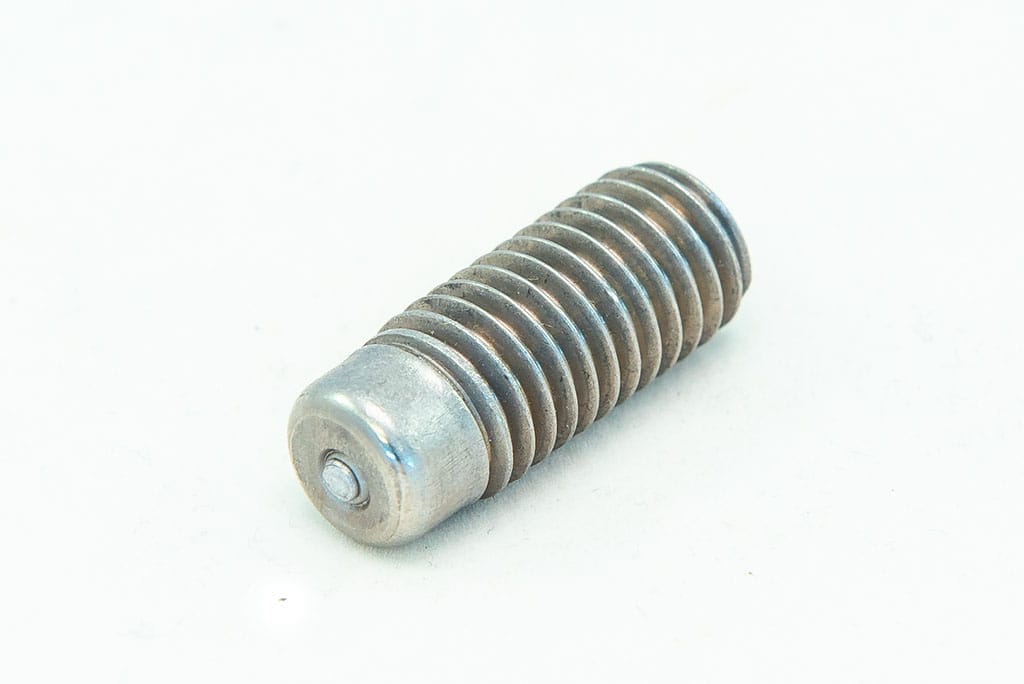

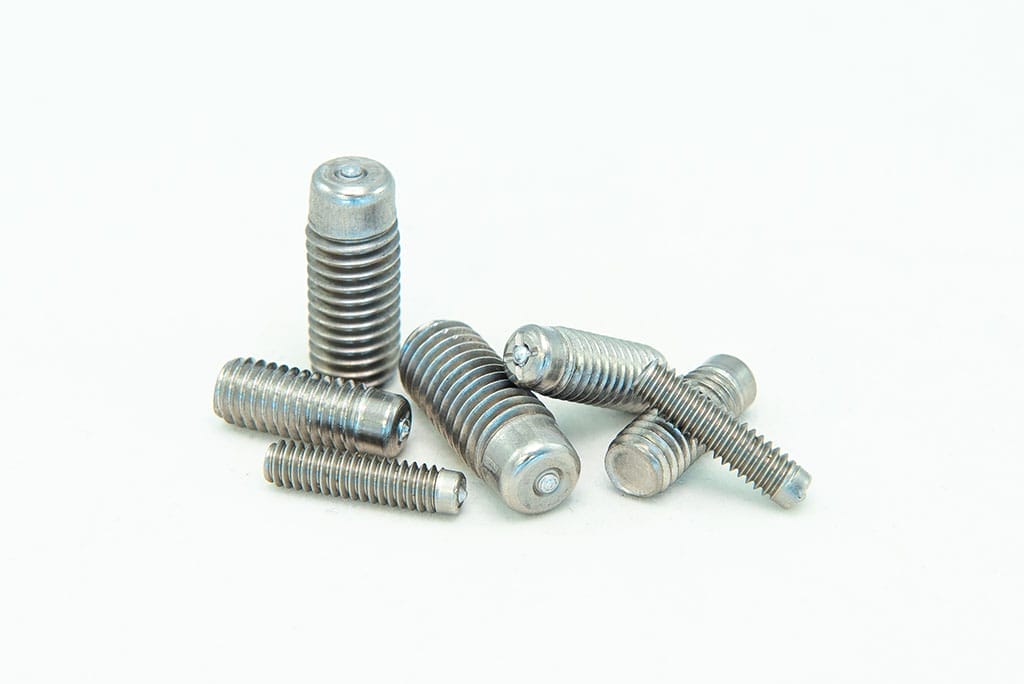

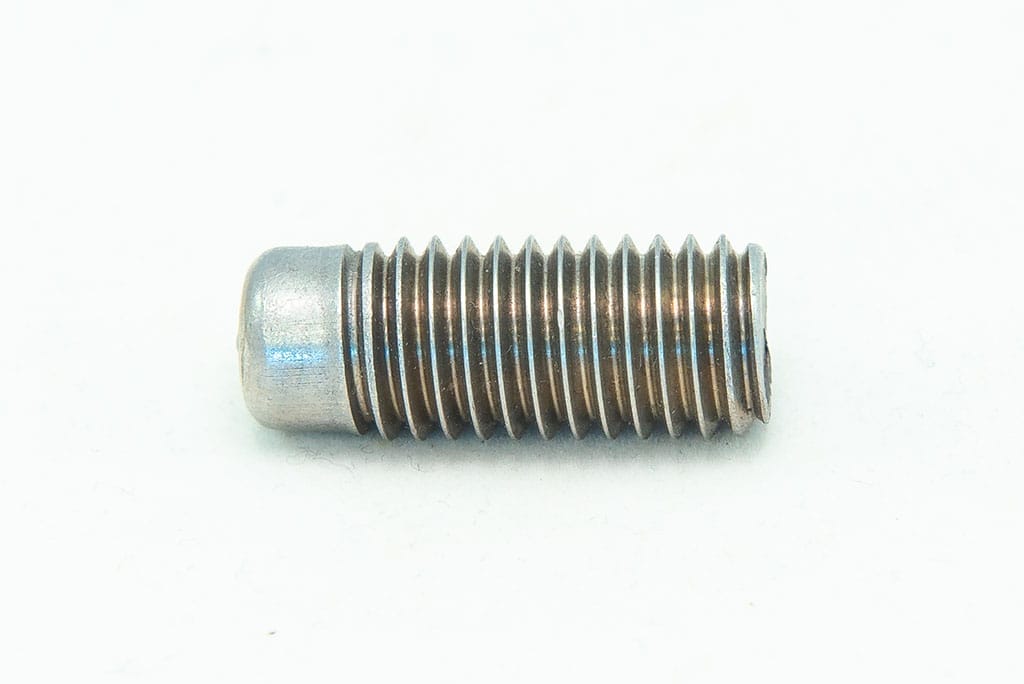

The Full Thread Arc Stud, or fully threaded base diameter weld stud, is a threaded weld stud for application with arc stud welding equipment. This type of stud welded fastener is usually flux-loaded on the weld end for studwelding applications. Available in Mild (Low Carbon) Steel, stainless steel and Aluminum as standards, other special materials and grades are available. The full thread style is characterized by external threads the full length of the weld stud. Studwelding burns off a portion of the base so that the pre-weld, post-weld length dimension should be considered. All orders for arc weld studs from Davis Stud Welding include ceramic studwelding ferrules properly sized for the weld stud ordered.
Looking for Full Thread Arc Fasteners (Stainless Steel)? Give us a call, we would love to help!
