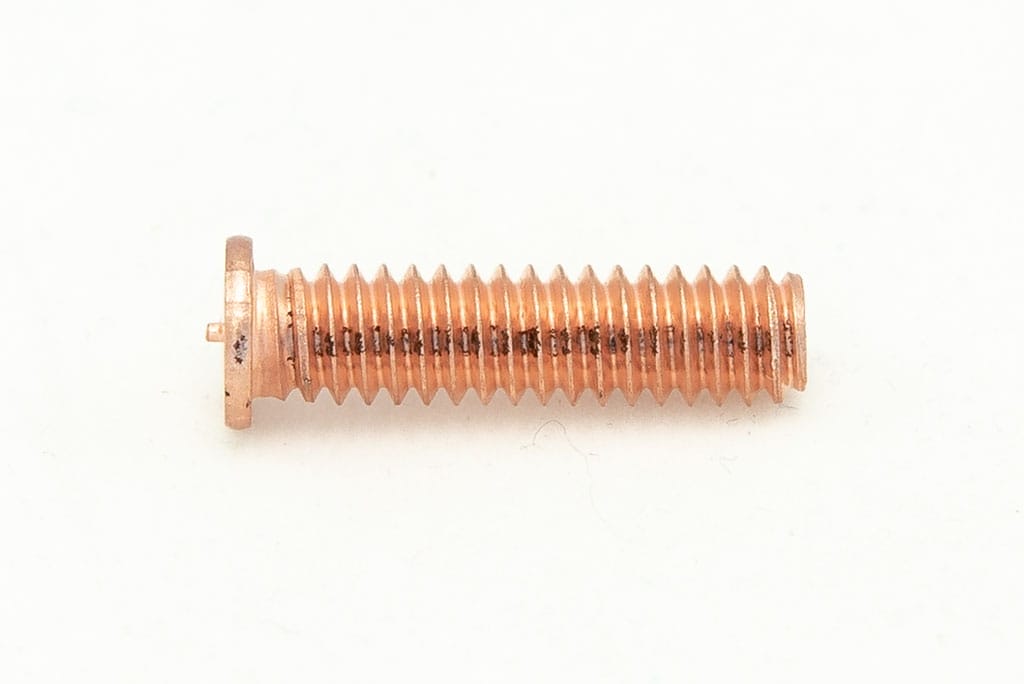

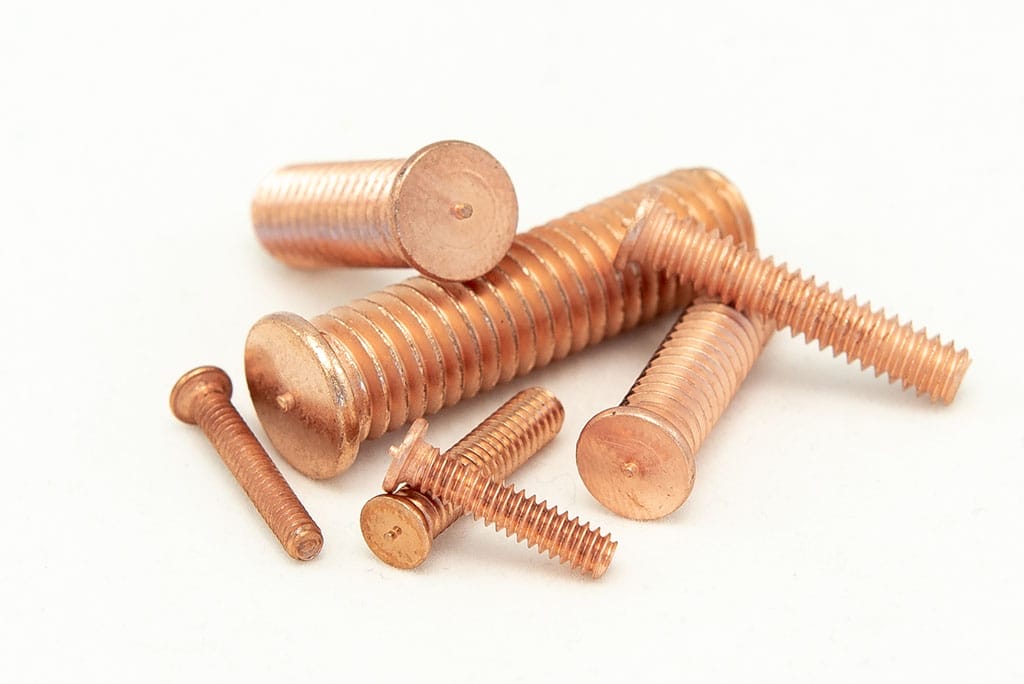

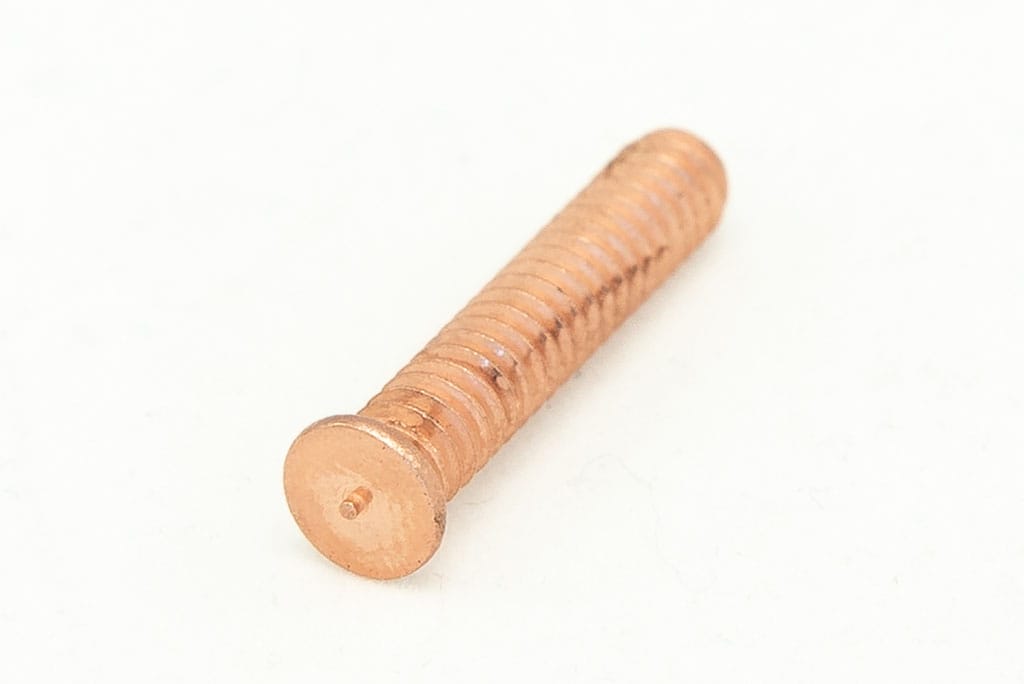

Flanged Threaded CD Weld Stud (Mild – Low Carbon Steel)

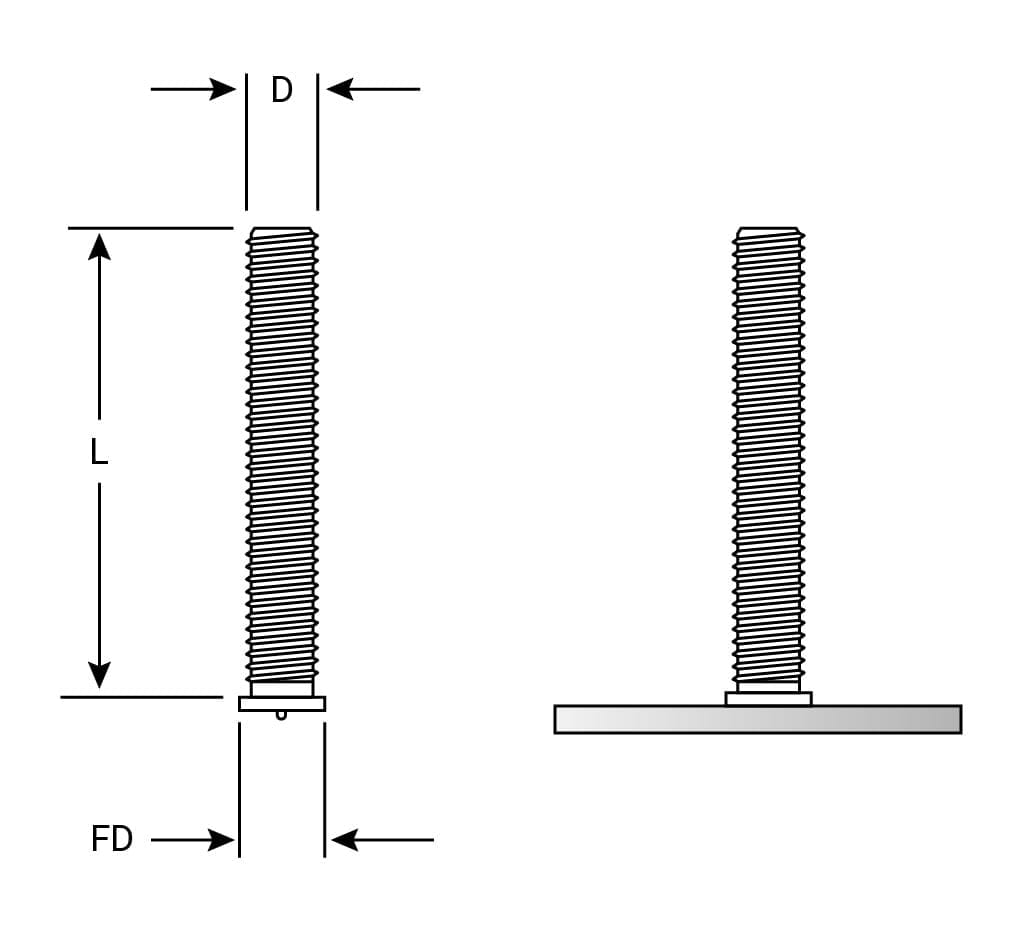

Information:
|
D |
FD |
MIN.L |
|
4-40 |
.187 |
.250 |
|
6-32 |
.218 |
.250 |
|
8-32 |
.250 |
.250 |
|
10-32 |
.250 |
.250 |
|
10-24 |
.250 |
.250 |
|
1/4-20 |
.312 |
.375 |
|
5/16 |
.375 |
.500 |
|
3/8-16 |
.437 |
.500 |
MILD (LOW CARBON) STEEL:
- C-0.23% max.
- P-0.04% max.
- Mn - 0.90% max.
- S-0.05% max.
- Tensile 60,000 psi (min.)
- Yield 50,000 psi (min.)
- Elongation 20% (in 2 inches)
STAINLESS STEEL:
AISI grade - 302/304/305 std. Other grades available upon request. MECHANICAL PROPERTIES: Values for various grades available upon request. ANNEALING: Studs are annealed where required.ALUMINUM:
ALLOY - 1100 & 5000 series Other alloys available upon request MECHANICAL PROPERTIES: Values for various alloys available upon request.
