Additional information
| Diameter (Metric) | |
|---|---|
| Flange | |
| Length | 1/4", 5/16", 3/8", 1/2", 3/4", 5/8", 1-1/4", 1", 7/8", 1-1/2", 1-5/8", 1-3/4", 2", Larger sizes available upon request |
| Available Materials | |
| System | |
| Threading | |
| Weld Type |

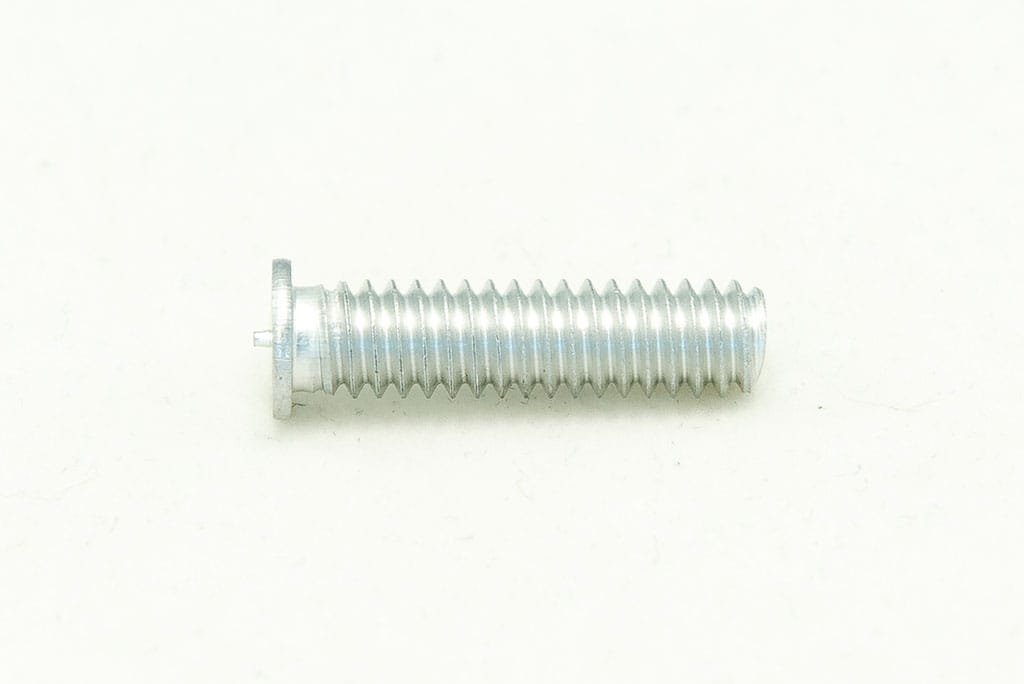

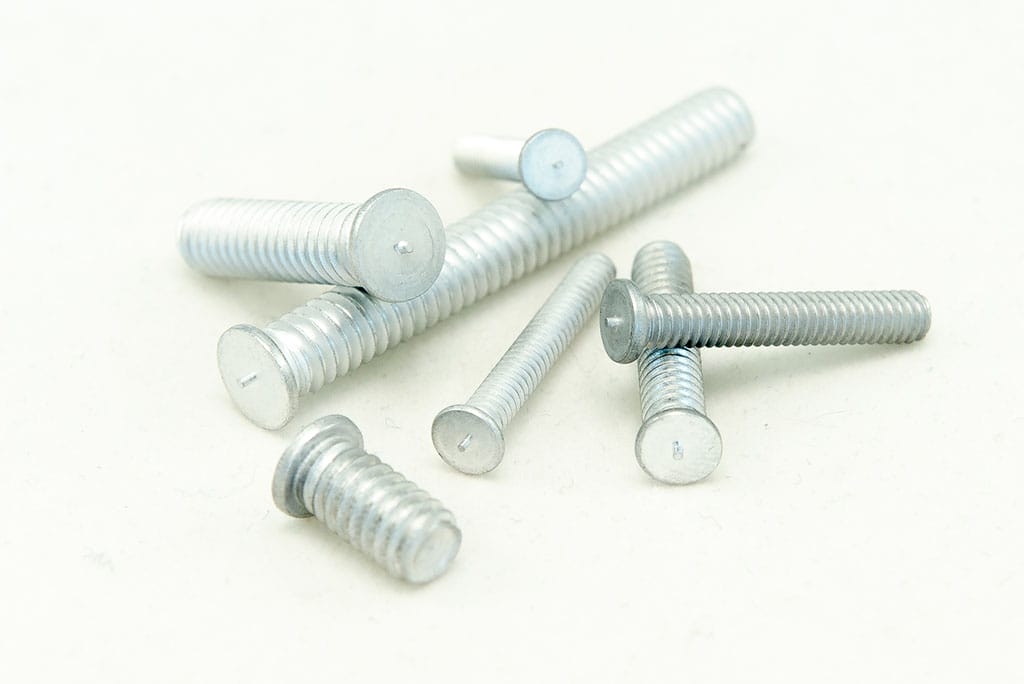

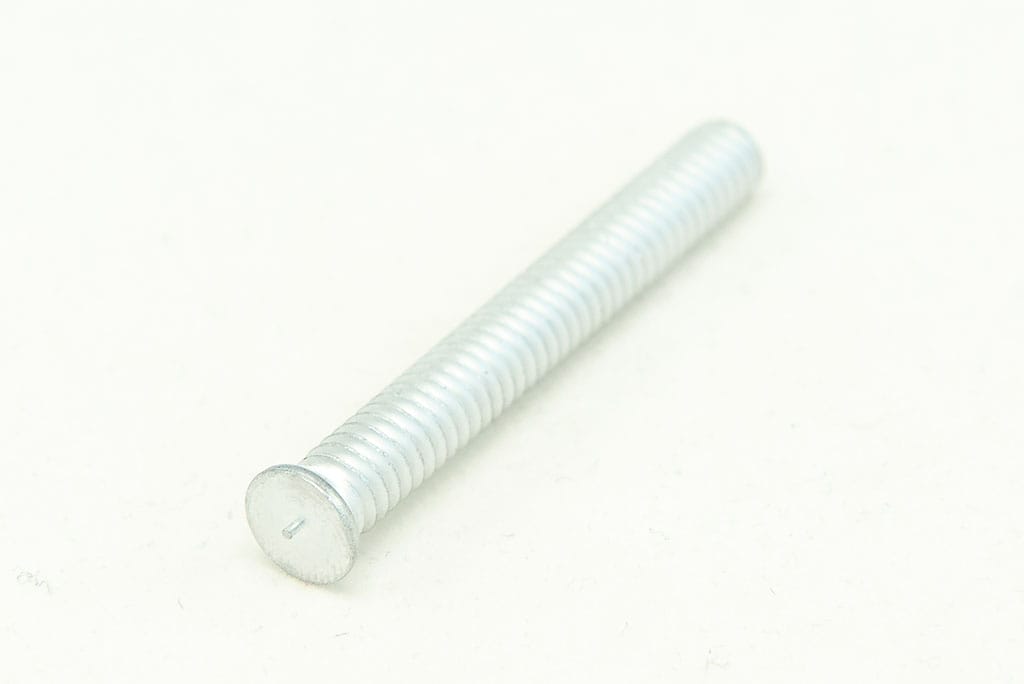

Flanged Threaded CD Weld Stud – Metric (Aluminum)
Information:
|
D |
FD |
MIN.L |
|
M3 X .50 |
5.5 |
6 |
|
M4 X .70 |
6.4 |
6 |
|
M5 X .80 |
6.8 |
10 |
|
M6 X 1.00 |
8 |
10 |
|
M8 X 1.25 |
9.8 |
12 |
MILD (LOW CARBON) STEEL:
- C-0.23% max.
- P-0.04% max.
- Mn - 0.90% max.
- S-0.05% max.
- Tensile 60,000 psi (min.)
- Yield 50,000 psi (min.)
- Elongation 20% (in 2 inches)
PLATING: Copper plating is standard.
ANNEALING: Studs are annealed where required.
STAINLESS STEEL:
AISI grade - 302/304/305 std.
Other grades available upon request.
MECHANICAL PROPERTIES: Values for various grades available upon request.
ANNEALING: Studs are annealed where required.
ALUMINUM:
ALLOY - 1100 & 5000 series
Other alloys available upon request
MECHANICAL PROPERTIES: Values for various alloys available upon request.
Specification sheet (PDF) coming soon.
Looking for Flanged Threaded CD Weld Stud – Metric (Aluminum)? Give us a call, we would love to help!
