Additional information
| Base | |
|---|---|
| Diameter | |
| Flange | |
| Length | 1/4", 5/16", 3/8", 1/2", 3/4", 5/8", 1-1/4", 1", 7/8", 1-1/2", 1-5/8", 1-3/4", 2", Larger sizes available upon request |
| Available Materials | |
| System | |
| Threading | |
| Weld Type |

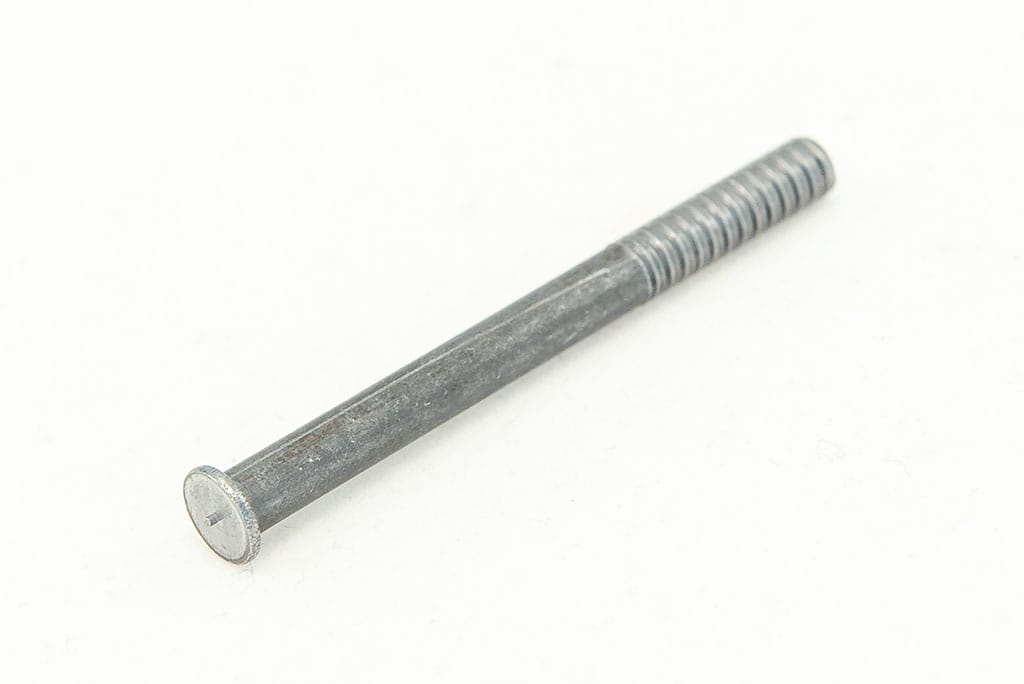

Flanged CD Annular Ring – Navy (Mild – Low Carbon Steel) Non-Plated
Information:
|
NOM. D |
MIN. L |
RD |
RL |
|
1/8 |
3/4 |
..122 |
.312 |
|
3/16 |
3/4 |
.175 |
.312 |
MILD (LOW CARBON) STEEL:
- C-0.23% max.
- P-0.04% max.
- Mn - 0.90% max.
- S-0.05% max.
- Tensile 60,000 psi (min.)
- Yield 50,000 psi (min.)
- Elongation 20% (in 2 inches)
PLATING: Copper plating is standard.
ANNEALING: Studs are annealed where required.
STAINLESS STEEL:
AISI grade - 302/304/305 std.
Other grades available upon request.
MECHANICAL PROPERTIES: Values for various grades available upon request.
ANNEALING: Studs are annealed where required.
Specification sheet (PDF) coming soon.
Looking for Flanged CD Annular Ring – Navy (Mild – Low Carbon Steel) Non-Plated? Give us a call, we would love to help!
