Additional information
| Gauge | |
|---|---|
| Length | 3-1/2", 4-1/2", 5-1/2", 6-1/2", 8", 9", 1", 1-5/8", 2-1/2", 2", Larger sizes available upon request |
| Available Materials | |
| System | |
| Weld Type |

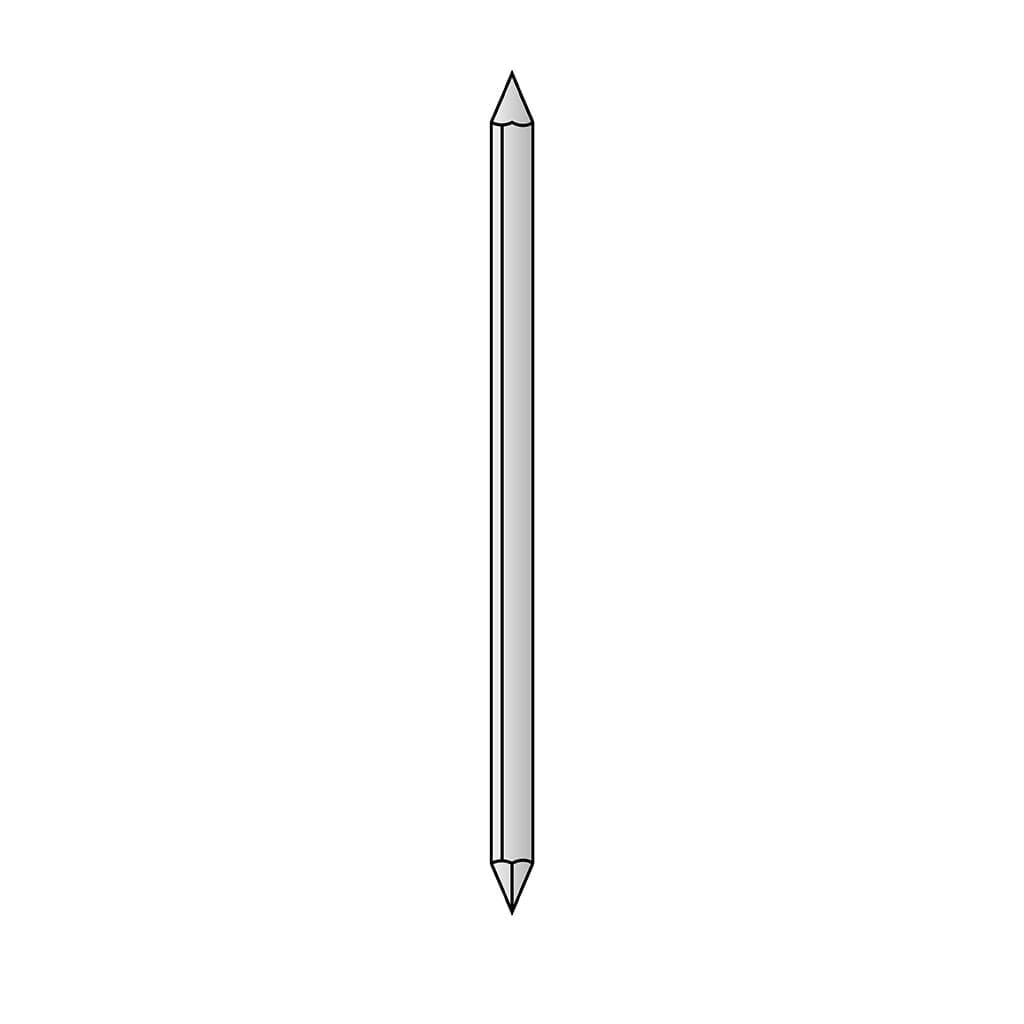

Double Pointed Arc Insulation Pin (Stainless Steel)
Information:
|

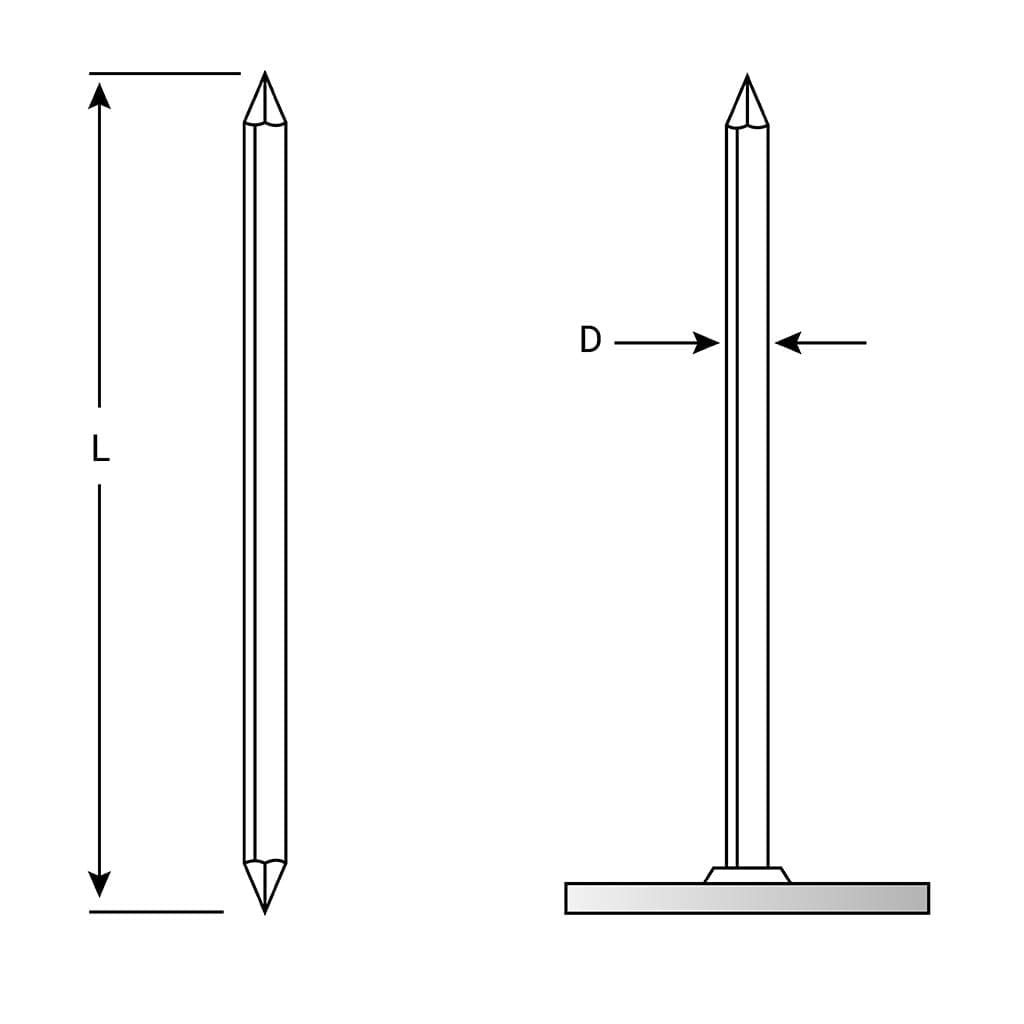

PINS |
|||
|
SIZE |
D* |
L |
FERRULE CODE |
|
10GA |
.135 |
AS REQUIRED |
.F135 |
|
*Other diameters available upon request. |
|||
FERRULE Part No.: F135
STAINLESS STEEL:
AISI grade - 302/304/305 std.
Other grades available upon request.
MECHANICAL PROPERTIES: Values for various grades available upon request.
WASHERS: Self-locking washers are available in a variety of sizes and shapes.
FERRULE Part No.: F135
Specification sheet (PDF) coming soon.
The Double Point Weld Pin is an Arc Stud welded Pin in Mild or Stainless Steel. This type weld pin is ideal to apply with Arc pin welding or drawn arc stud welding equipment. Manufactured with a chiseled weld tip on each end, the Double Point Weld Pin is popularly used as an insulation fastener, in combination with locking washers (or speed clips) to retain insulating material. The unique double ended weld tips and proper stud welding equipment make this an economic and cost-saving metal fastener when stud welded in place. A main advantage of the Double Point Weld Pin is its ability to be properly welded to tough or contaminated surfaces without preparation of the area to be pin welded.
