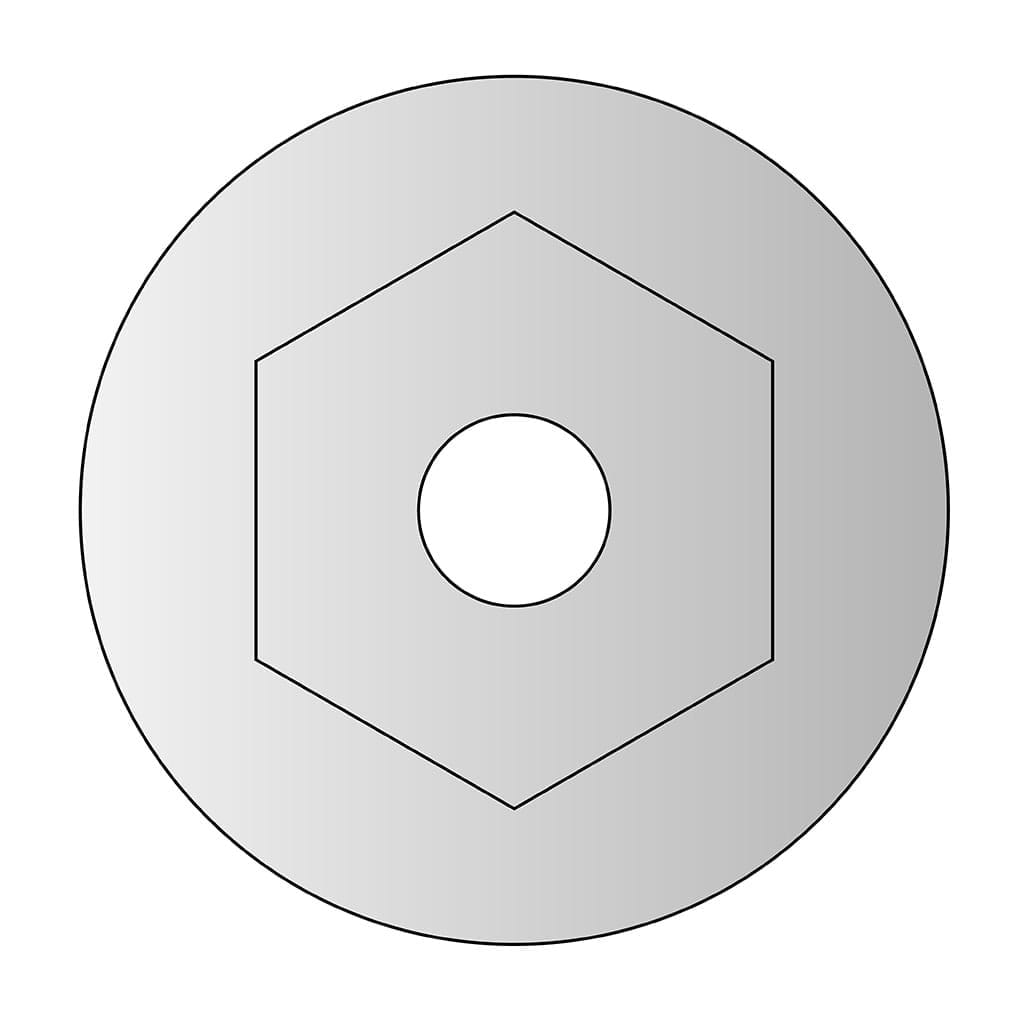

Combination Hex Nut & Lock Washer (Open)
Information:
COMBINATION HEX - NUT and LACKWASHER A (OPEN)
(For 10-24 threaded studs)
APPLICATION:
With 10 - 24 weld studs One piece washer - type locknut combination serving as hex nut, lockwasher and flat washer. Locking design eliminates back- off due to vibration and thermal stress.
MATERIAL:
Mild Steel. Zinc Plated.
SIZE:
For 10-24 threaded studs
MILD (LOW CARBON) STEEL:
- C-0.23% max.
- P-0.04% max.
- Mn - 0.90% max.
- S-0.05% max.
- Tensile 60,000 psi (min.)
- Yield 50,000 psi (min.)
- Elongation 20% (in 2 inches)
Specification sheet (PDF) coming soon.
Looking for Combination Hex Nut & Lock Washer (Open)? Give us a call, we would love to help!
