Additional information
| Gauge | |
|---|---|
| Length | 3-1/2", 4-1/2", 5-1/2", 6-1/2", 8", 9", 1", 1-5/8", 2-1/2", 2", Larger sizes available upon request |
| Available Materials | |
| System | |
| Weld Type |
CD Insulation Nail (Stainless Steel)
Information:
|
PINS |
|||
|
|
STEEL |
ALUM. |
|
|
SIZE |
D |
FD |
FD |
|
14GA |
.080 |
.160 |
- |
|
12GA |
.105 |
.180 |
.230 |
|
3MM |
.118 |
.190 |
- |
|
10GA |
.135 |
.195 |
.250 |
STAINLESS STEEL:
AISI grade - 302/304/305 std.
Other grades available upon request.
MECHANICAL PROPERTIES: Values for various grades available upon request.
WASHERS: Self-locking washers are available in a variety of sizes and shapes.
Specification sheet (PDF) coming soon.

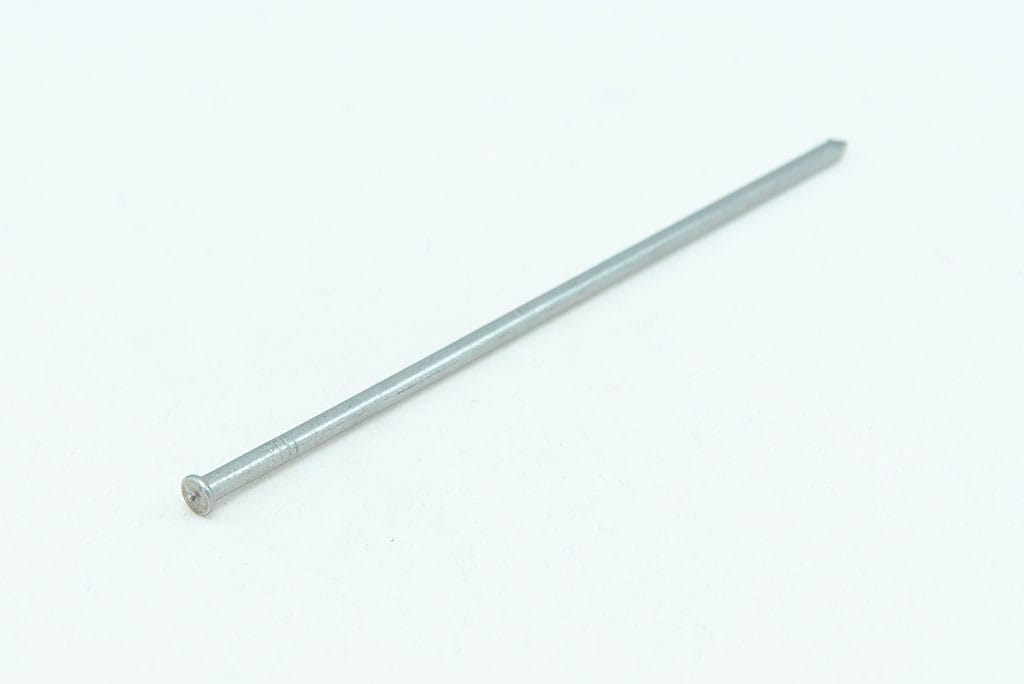

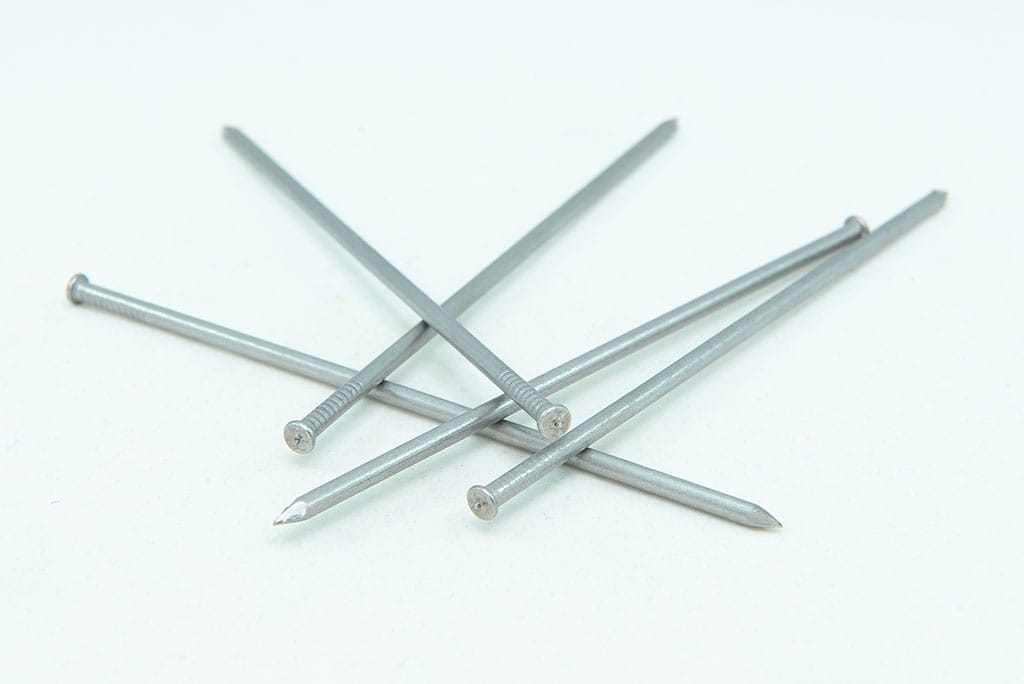

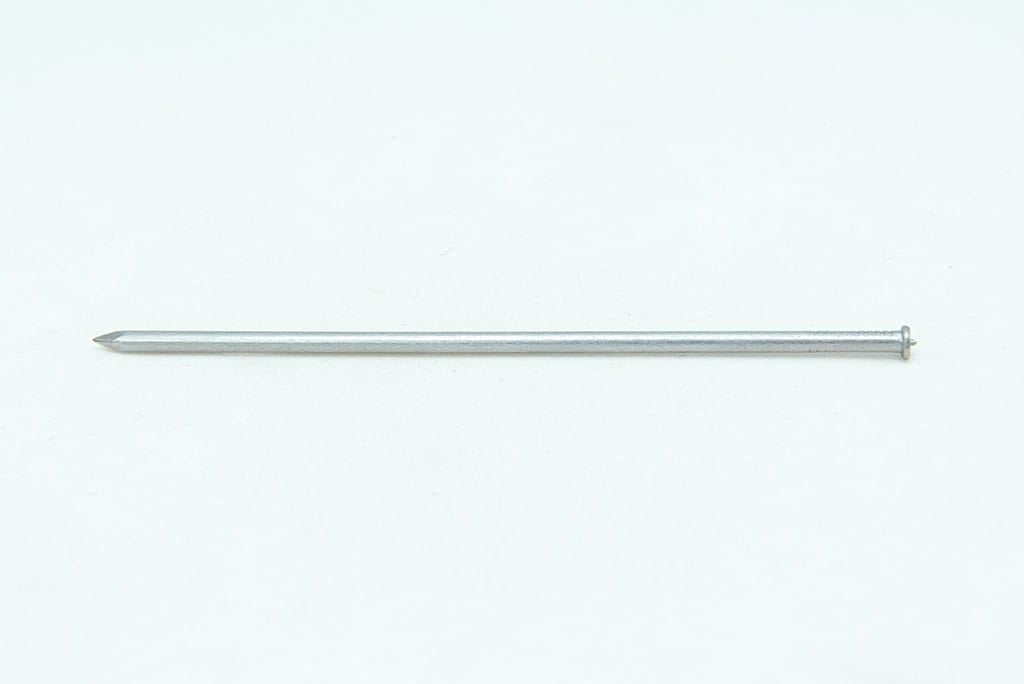

The capacitor discharge CD Pin is a Mild (Low Carbon) Steel, Stainless Steel or Aluminum weld pin that is ideal to apply with pin welding or stud welding equipment. Manufactured with a standard Capacitor Discharge weld tip and flange, the CD Weld Pin is popularly used as an insulation fastener, in combination with self locking washers (or “speed clips”) to retain insulating material. Other applications of he weld pin replace weld studs, locator pins or various types of metal fasteners. The unique capacitor discharge weld tip and CD weld equipment for stud welding make this an economic and cost-saving metal fastener when stud welded in place.
Looking for CD Insulation Nail (Stainless Steel)? Give us a call, we would love to help!
