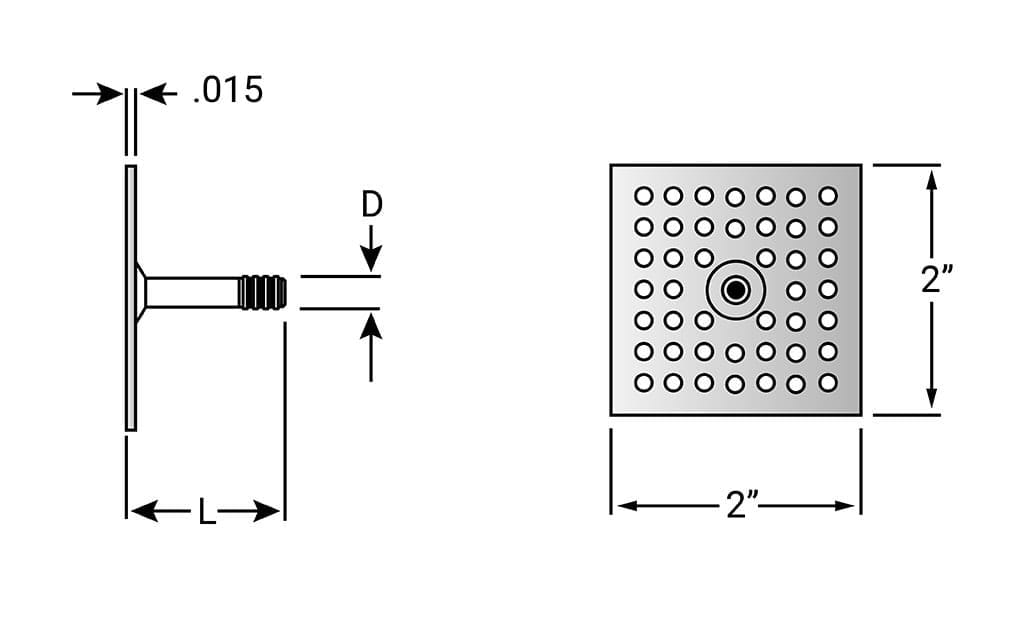

Annular Ring Insulation Anchor Bolt
Information:
|
SIZE : |
D |
3/16 nominal.Actual ring dia meter is .175". |
|
LENGTH : |
L |
7/8, 1-7/8.2-7/8,and 3-7/8 are standard. Other lengths available by special order. |
|
|
BOLT |
PLATE |
|
MATERIAL |
Mild (Low Carbon) Steel. Available by special order only. |
Mild (Low Carbon) Steel. Available by special order only. |
|
PLATING |
Copper plating is standard |
Galvanized is standard. |
|
RETAINING CAP |
The cap for use with this anchor-bolt is the MCAL part no. MCAL-625-875 |
|
MILD (LOW CARBON) STEEL:
- C-0.23% max.
- P-0.04% max.
- Mn - 0.90% max.
- S-0.05% max.
- Tensile 60,000 psi (min.)
- Yield 50,000 psi (min.)
- Elongation 20% (in 2 inches)
PLATING: Copper plating is standard.
ANNEALING: Studs are annealed where required.
Specification sheet (PDF) coming soon.

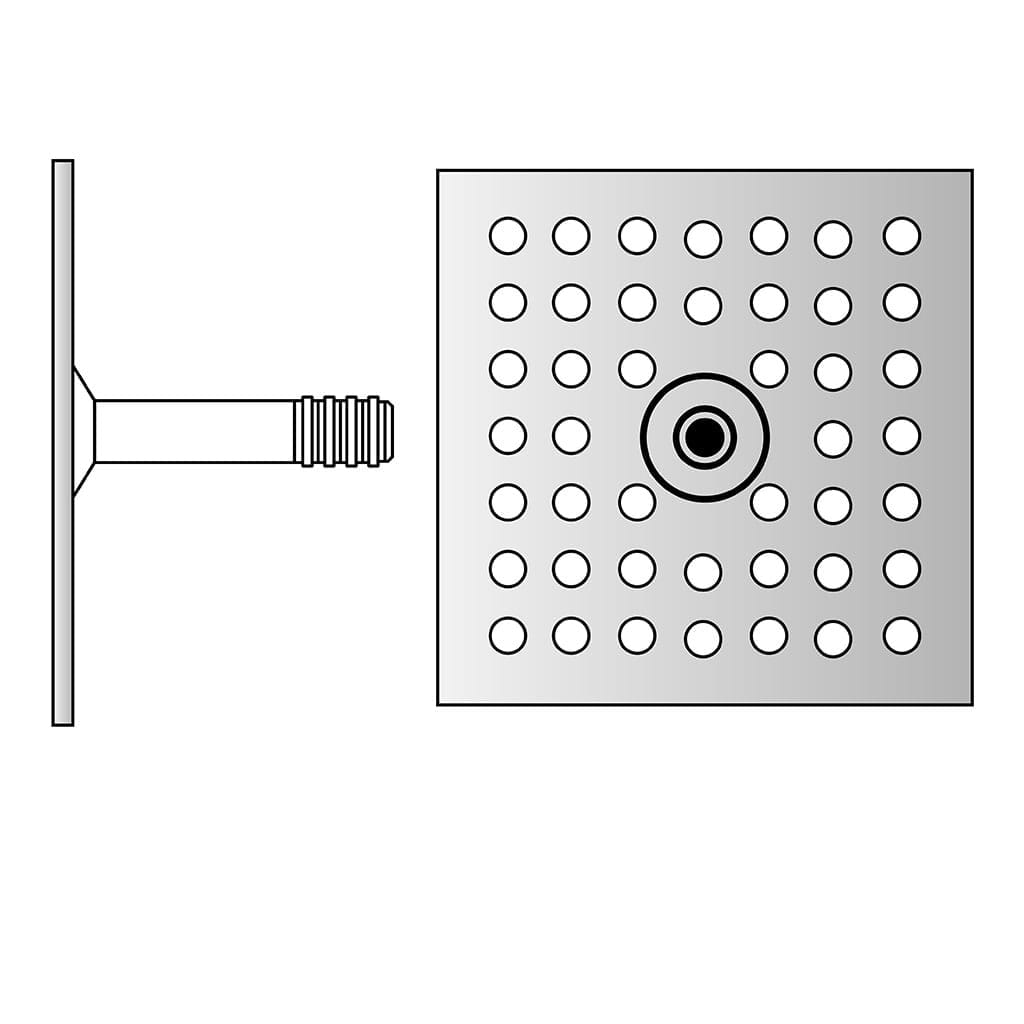

The Annular Ring Anchor Bolt, or Insulation Hanger, is a fabricated 2" X 2" perforated metal base, with a 3/16" annular ring pin attached for impaling and installing various thermal and acoustical insulation materials, quite often in marine applications. Popular materials are Mild (Low Carbon) Steel, Aluminum and Stainless Steel, with combinations of these materials also occurring for special applications. The annular insulation pin length is popular in 7/8" increments for marine insulation and hull applications. This type insulation fastener is used in conjunction with Self Locking Insulation Washers, or Speed Clips, and the Annular Ring Cap, or "Navy Cap" sized to fit the annular ring pin. Application is completed with general purpose Insulation Anchor adhesive, like Davis Stud Welding IHA-177.
