Additional information
| Base | |
|---|---|
| Diameter | |
| Length | 3/4", 1-1/4", 1", 7/8", 1-1/2", 1-5/8", 1-3/4", 2-1/2", 2-1/4", 2-3/4", 2", 3", Larger sizes available upon request |
| Available Materials | |
| Plating | |
| System | |
| Threading | |
| Weld Type |
Annular Ring Arc Fasteners (Navy) – (Stainless Steel)
Information:
|

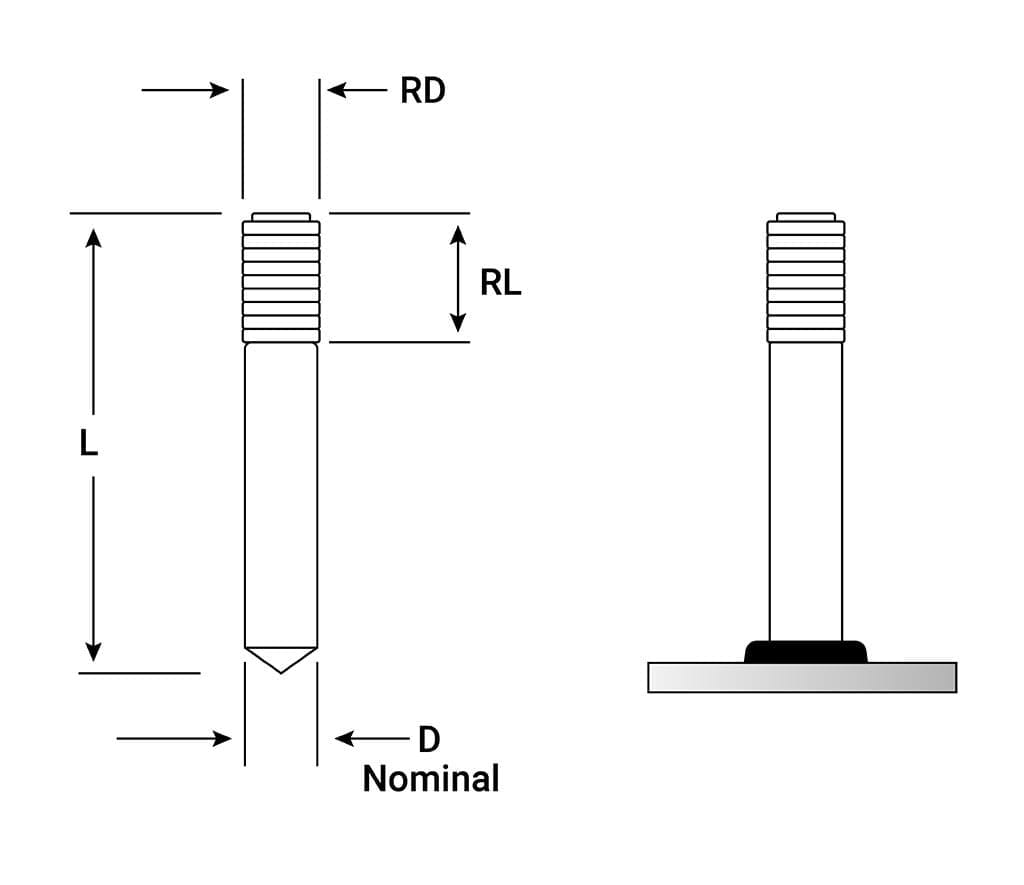

STUDS |
||||
|
NOM. D |
MIN. L |
RD |
RL |
FERRULE CODE |
|
3/16 |
3/4TEST01 |
.175 |
.312 |
F187 |
|
FERRULES |
|||||
|
ODE |
B |
D |
E |
M |
PART NO. |
|
F187 |
.305 |
.380 |
.156 |
.390 |
092-0005-05 |
- Additional information
- Mild Steel Specs.
- Stainless Steel Specs.
- Ferrules
- Documentation
- Thread
- Information
MILD (LOW CARBON) STEEL:
- C-0.23% max.
- P-0.04% max.
- Mn - 0.90% max.
- S-0.05% max.
- Tensile 60,000 psi (min.)
- Yield 50,000 psi (min.)
- Elongation 20% (in 2 inches)
PLATING: Plating is not standard. Copper, nickel, and zine available upon customer request.
STAINLESS STEEL:
AISI grade - 302/304/305 std.
Other grades available upon request.
MECHANICAL PROPERTIES: Values for various grades available upon request.
FERRULES:
Ferrules are component parts of studs. Not sold separately.
Specification sheet (PDF) coming soon.
THREADS:
Standard thread is UNC-2A (Rolled when possible),other threads are available upon request. Maximum standard thread length is 3-7/8".

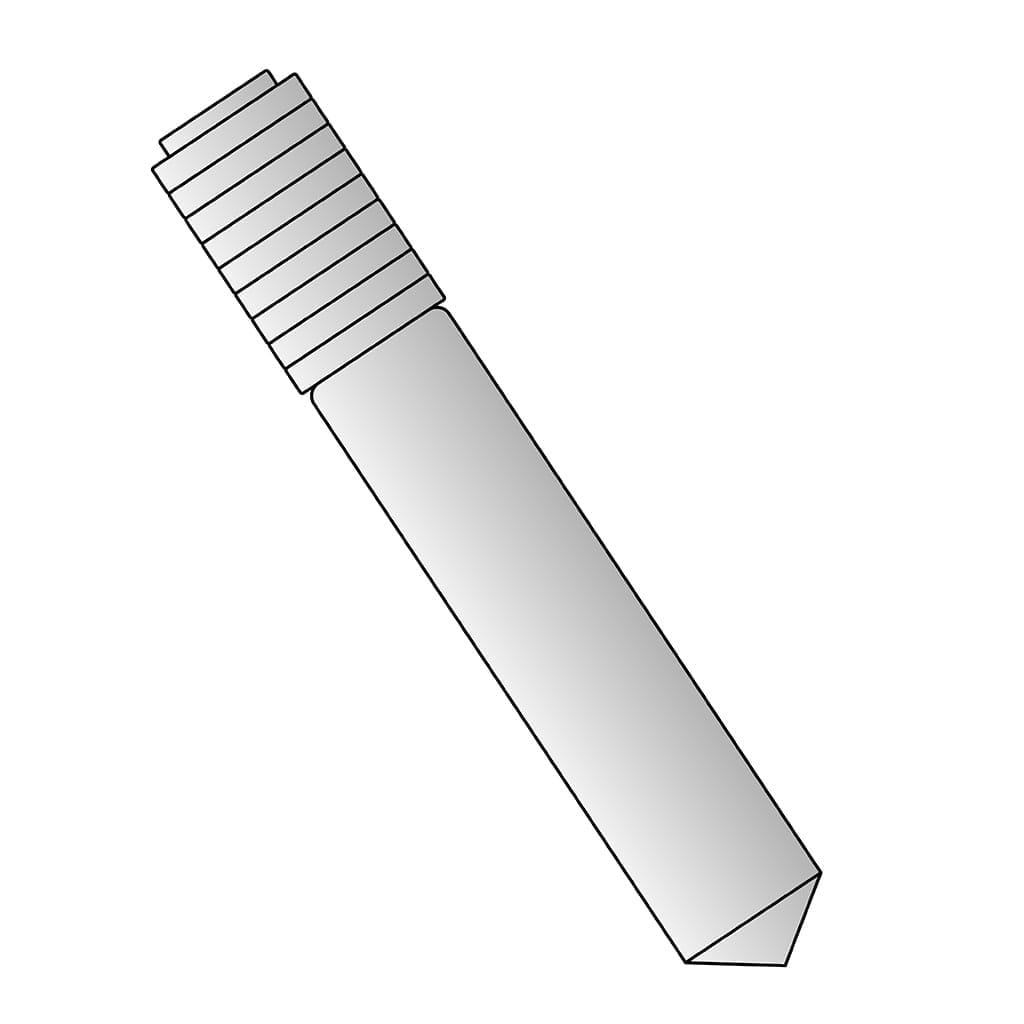

The Annular Ring Arc Stud, or navy stud, is a ringed weld stud for application with arc stud welding equipment. This type of stud welded fastener is usually pointed on the weld end for studwelding applications. Available in Mild (Low Carbon) Steel, stainless steel and Aluminum, other special materials and grades are available. The annular ring stud style is characterized by a base area without threading and external rings starting above the unthreaded portion. Studwelding of the weld stud burns off a portion of the base so that the pre-weld, post-weld length dimension should be considered. All orders for arc weld studs from Davis Stud Welding include ceramic studwelding ferrules properly sized for the weld stud ordered. Special retainers known as annular ring caps, or "mushroom" caps, are used with the annular groove weld stud.
Looking for Annular Ring Arc Fasteners (Navy) – (Stainless Steel)? Give us a call, we would love to help!
